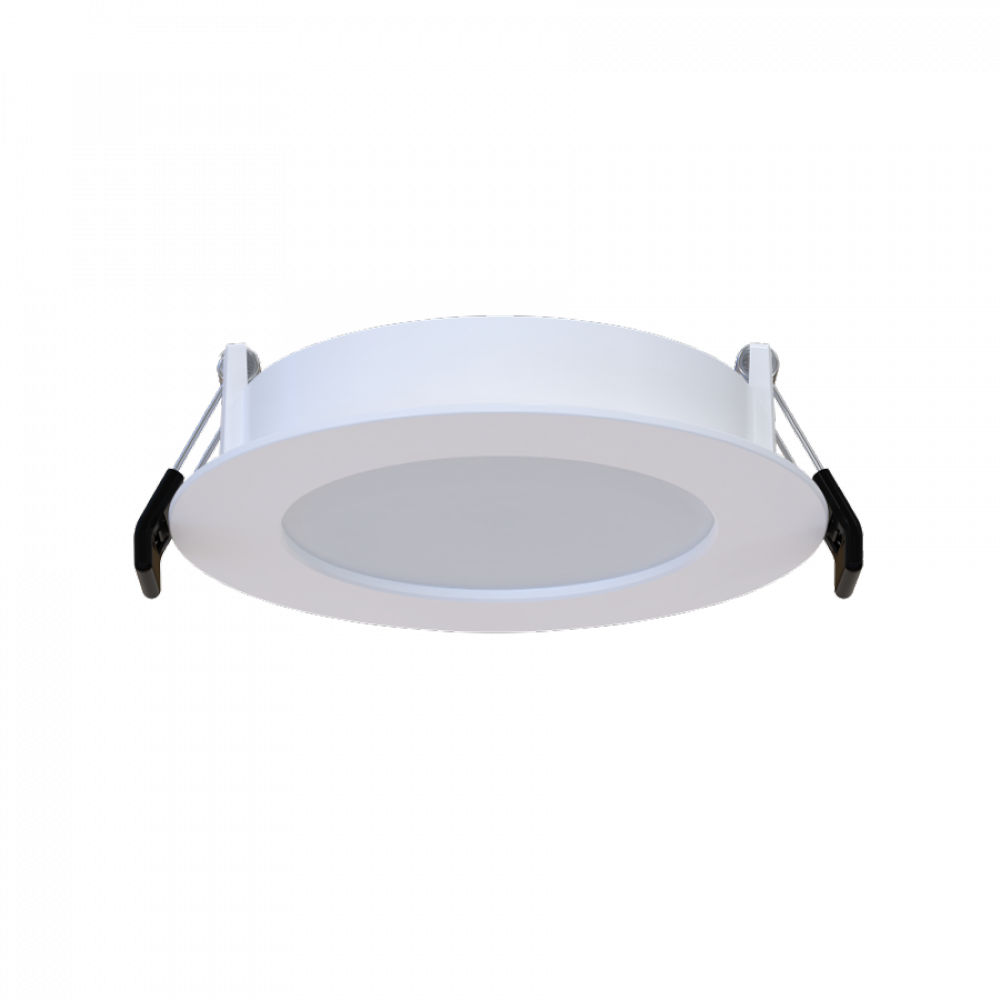

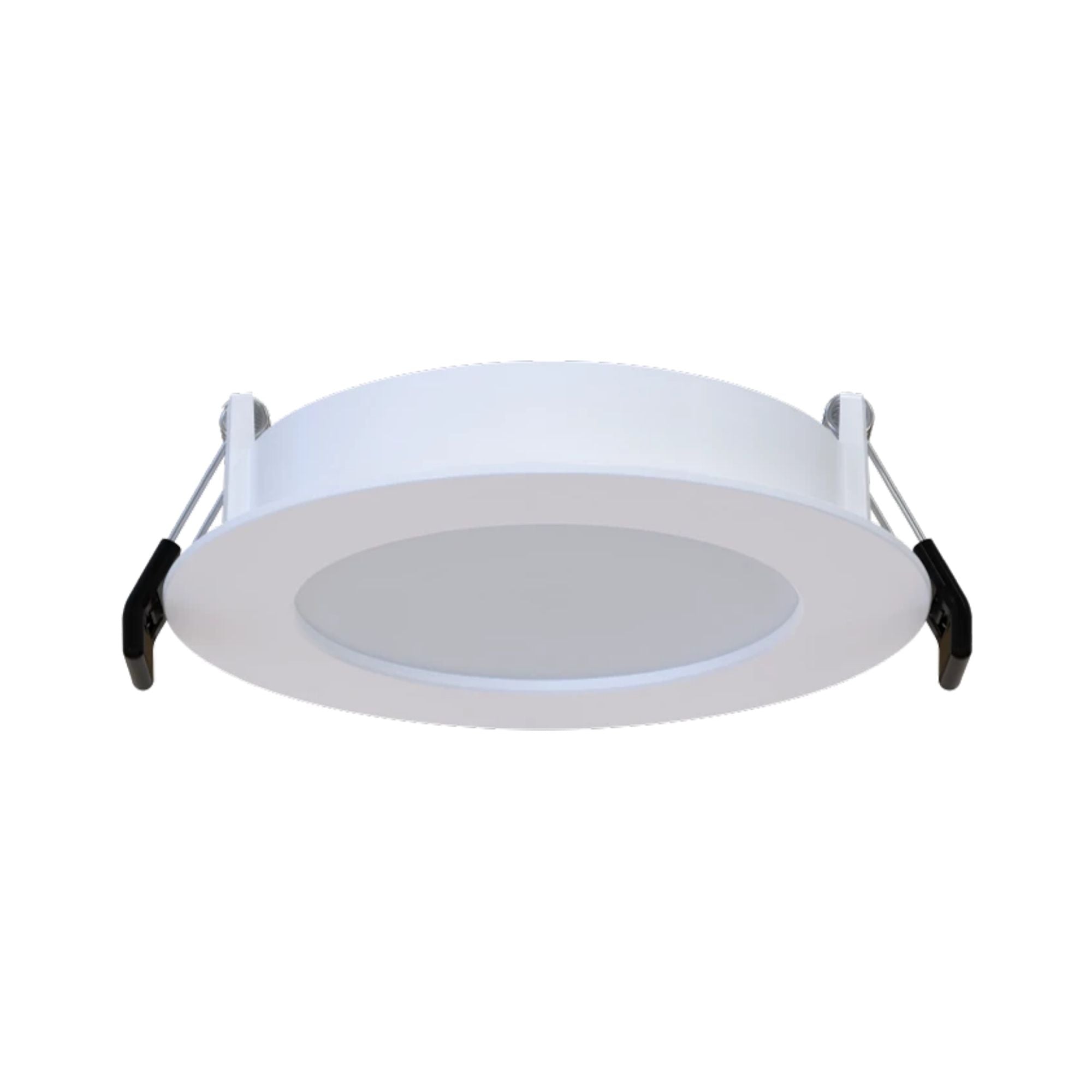

RAB LIGHTING WFR17-4 Wafer Back-Lit LED Downlight

Product Description

The RAB LIGHTING WFR17-4 is a back-lit wafer downlight designed for both new and remodel installations. This round four-inch fixture allows for adjustable color temperatures, providing options of 2700K, 3000K, 3500K, 4000K, and 5000K. Its IC-rated design means it can directly contact insulation, making it versatile for various environments, including dry, damp, and wet locations.

• Field-adjustable color temperature for customized lighting.

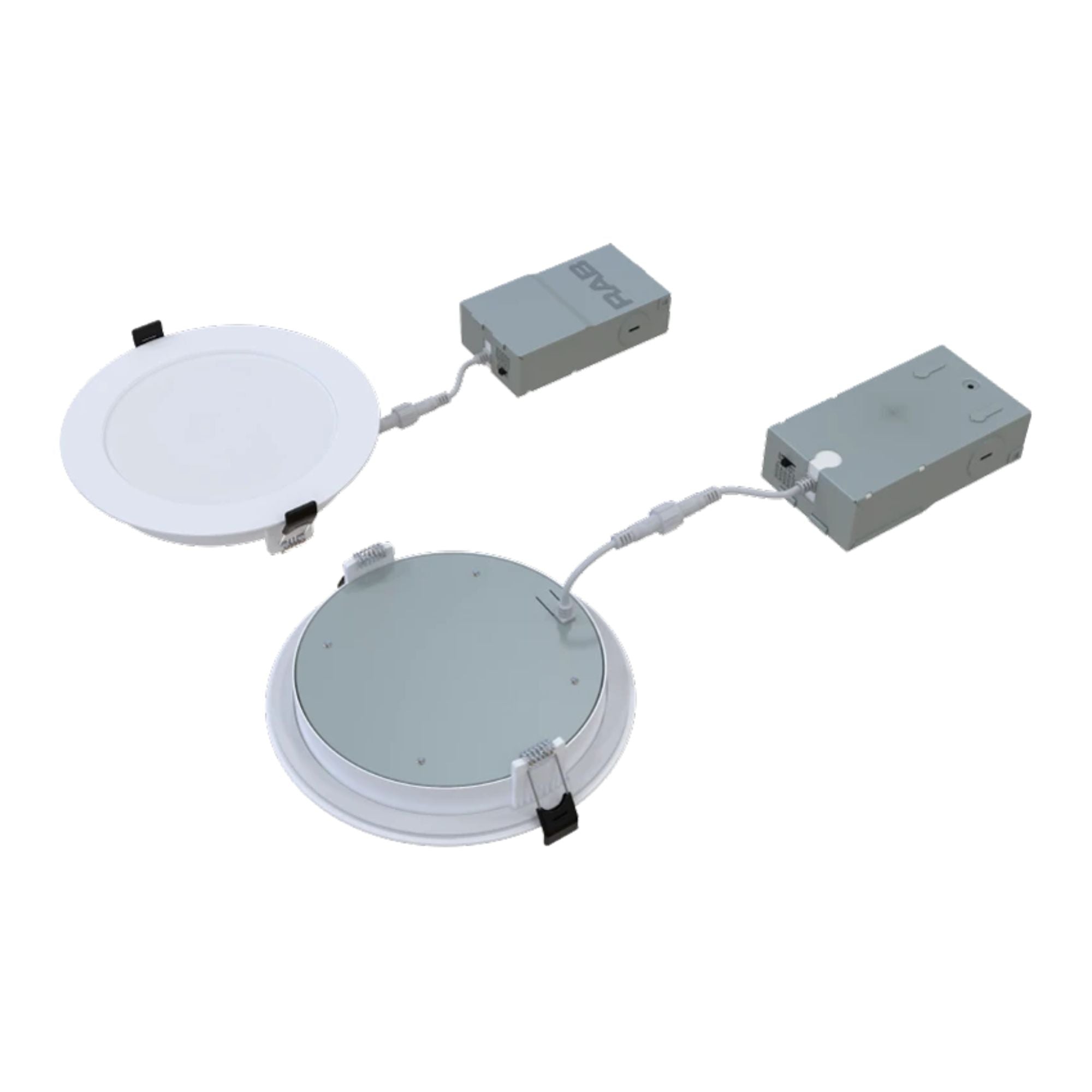

• Remote driver box enables housing-free setup.
• Dimmable compatibility with TRIAC and ELV systems.

Product Highlights

The WFR17-4 downlight is built for efficiency and flexibility, making it an ideal choice for residential and commercial spaces.

Product Information

Standard Information

• Type: Back-lit slim wafer recessed downlight
• Installation: Housing-free with remote driver

Technical Specifications

• Wattage Equivalency: 60W incandescent
• Input Wattage: 9W
• Lumens: 604lm @ 2700K; 649lm @ 3000K; 685lm @ 3500K; 696lm @ 4000K; 689lm @ 5000K
• Efficacy: 76lm/W @ 2700K; 82lm/W @ 3000K; 88lm/W @ 3500K; 89lm/W @ 4000K; 86lm/W @ 5000K
• Lifespan: 30,000 hours
• Input Voltage: 120V
• Color Temperature: Adjustable via dip switch
• Beam Angle: 110 degrees
