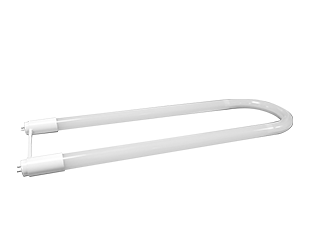

RAB LIGHTING T8-U6G-SD-HYB U-Bend LED Lamp

Product Description

The RAB LIGHTING T8-U6G-SD-HYB is a U-bend LED lamp that serves as a direct replacement for fluorescent lamps rated at thirty-two watts. This hybrid LED lamp offers versatility with support for both Type A, which is ballast compatible, and Type B, which is ballast bypass. It can be connected using either single or double-ended wiring and is compatible with shunted and non-shunted sockets. The lamp allows for field-adjustable color temperature settings, enabling users to select between various options including three thousand Kelvin, three thousand five hundred Kelvin, four thousand Kelvin, five thousand Kelvin, and six thousand five hundred Kelvin. This product is suitable for installation in both dry and damp locations, and can be used in enclosed fixtures. It is also NSF rated for food zone applications when combined with a tube guard.

• Direct replacement for F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W fluorescent lamps.
• Supports Type A (ballast compatible) and Type B (ballast bypass) installation.
• Field-adjustable color temperature: 3000K, 3500K, 4000K, 5000K, 6500K.

Product Highlights

This U-bend LED lamp provides an efficient lighting solution with a lifespan of fifty thousand hours, ensuring reliable performance over time.

Product Information

Standard Information

• Brand: RAB LIGHTING
• Manufacturer Part Number: T8-U6G-SD-HYB

Technical Specifications

• Product Type: Linear Tube
• Bulb Shape: T8 U6
• Base Type: 2G13
• Wattage Equivalency: 32W Fluorescent
• Input Wattage: 11.5/13/15W
• Input Voltage: 120-277V
• Operating Frequency: 50/60Hz
• Lumens: 2,200 Lumens
• Efficacy: 154lm/W
• Color Accuracy (CRI): 82 CRI
• Beam Angle: 160°
• L70 Lifespan: 50,000-Hour LED lifespan
• Dimmable: Yes
• Fixture Rating: Suitable for use in enclosed fixtures
• Environment: Suitable for use in dry and damp environments
