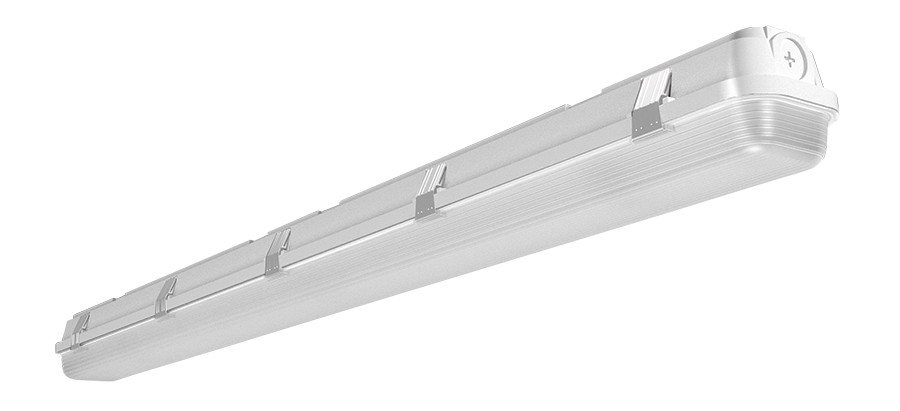

Rab Lighting SEAL4/E Seal4/E Field-Adjustable Linear Washdown 50/40/30W (4 ft) SEAL4/E

Product Description

Rab Lighting SEAL4/E is a field-adjustable linear washdown LED fixture that provides 4 ft of wet-location illumination with selectable wattages (50/40/30 W) and selectable color temperatures (3500K/4000K/5000K). It delivers 4,080–6,800 lumens, operates on 120–277V with 0–10V dimming and a constant-current Class 2 driver, and includes IP66 and NEMA 4X protection with IK08 impact resistance and an optional 90-minute battery backup.

• Field-adjustable wattage (50/40/30 W) and field-selectable CCT (3500K/4000K/5000K); outputs 4,080–6,800 lumens at 130–142 lm/W.
• Rugged mechanical construction: impact-resistant polycarbonate housing, diffuse polycarbonate lens, stainless steel door clips, high-temperature silicone gaskets; IP66, NEMA 4X, IK08, NSF and UL listed.
• Electrical features: universal 120–277V input, 0–10V dimming to 10%, constant-current Class 2 driver, 2.5 kV surge protection, cold-weather starting to -40°F, and optional 90-minute battery backup.

Product Highlights

Field-adjustable 4 ft LED washdown fixture — 50/40/30 W, 4,080–6,800 lm, 120–277V, 0–10V dimming, IP66/NEMA 4X, IK08, optional 90-minute battery backup

Product Information

Standard Information

• Brand: RAB LIGHTING
• Manufacturer Part Number: SEAL4/E
