Description

Product Description

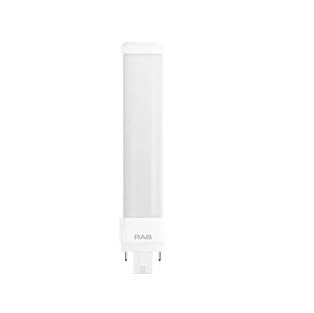

Rab Lighting PLC-8.5-H-8FA-HYB is an 8.5W compact hybrid LED lamp delivering approximately 960/1020/1050 lumens with field-selectable color temperatures of 3000K, 3500K, and 4000K and a color rendering index of 80. The horizontal PLC-H lamp uses a G24d 2-pin base, operates on magnetic ballasts or direct line voltage (120–277V), is non-dimmable, and has an L70 rated life of 50,000 hours.

  • Field-adjustable CCT: 3000K / 3500K / 4000K with approx. 960 / 1020 / 1050 lumens
  • Hybrid Type A/B operation: plug-and-play on magnetic CFL ballasts or wired directly to line voltage (120–277V)
  • G24d 2-pin base, horizontal PLC-H shape, 110° beam angle, 80 CRI, non-dimmable, 50,000 hour (L70) life

Product Highlights

8.5W hybrid LED replacement for G24d/G24q CFLs; 960–1050 lm; selectable CCT; 120–277V; 50,000 hr L70; non-dimmable.

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: PLC-8.5-H-8FA-HYB
Technical Specifications
Brand
Rab Lighting
MPN
PLC-8.5-H-8FA-HYB
Lamp Type
LED
Wattage
8.5 W
Lumens
960 / 1020 / 1050 lm (depending on CCT)
Color Temperature
3000K / 3500K / 4000K (field-selectable)
Color Rendering Index (CRI)
80
Orientation
Horizontal
Ballast Compatibility
Hybrid (plug-and-play on magnetic CFL ballasts or direct line voltage wiring)
Base Type
G24d 2-Pin
Voltage Rating
120-277 V
Beam Angle
110°
Life (L70)
50,000 hours
Dimmable
No (Non-Dimmable)
Start Type
Instant-On
Replaces
18W / 26W / 32W G24d and G24q CFL lamps
Shape
PLC-H
Lamp Finish
Frosted
Diameter (Reference)
1.31 in
Dimensions
1.3125 in L x 1.3125 in W x 6.375 in H
Number of Lamps
1
Approvals/Certifications
UL, FCC, RoHS compliant
Application
Enclosed/Open Fixture, Dry/Damp Location
Product UPC
019813916460
Manufacturer
Rab Lighting
Part Number (SKU)
26550810
MPN (alternate)
PLC-8.5-H-8FA-HYB
