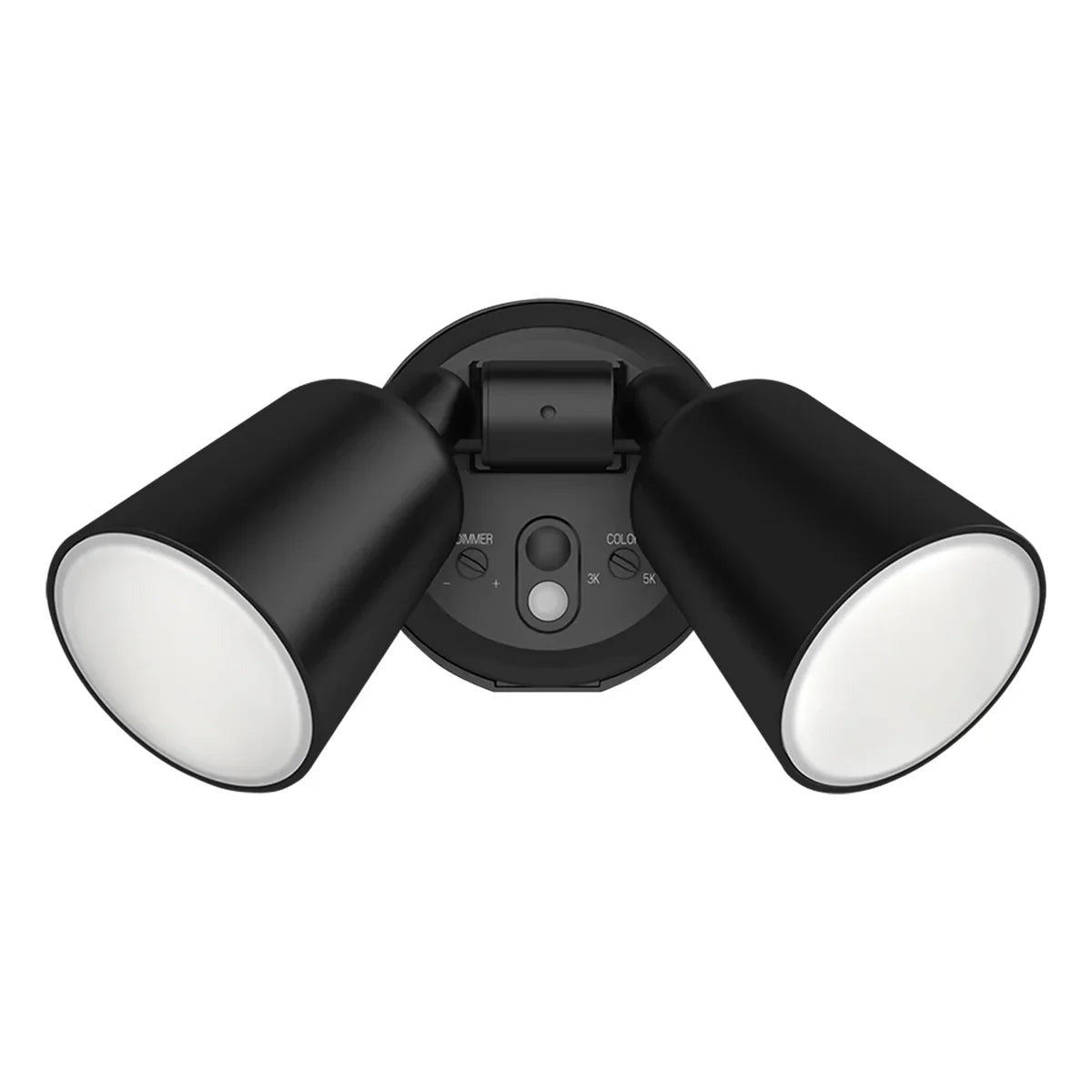

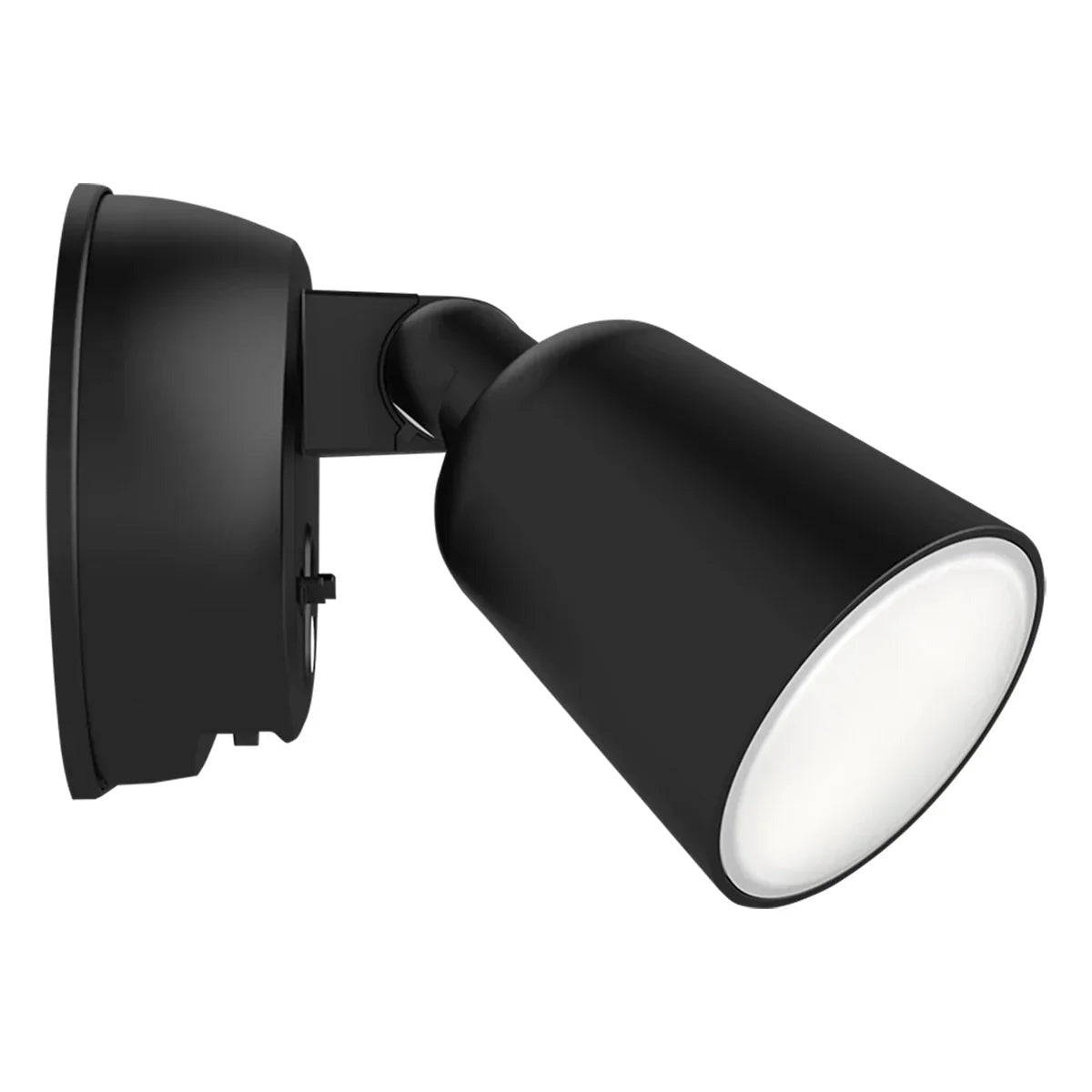

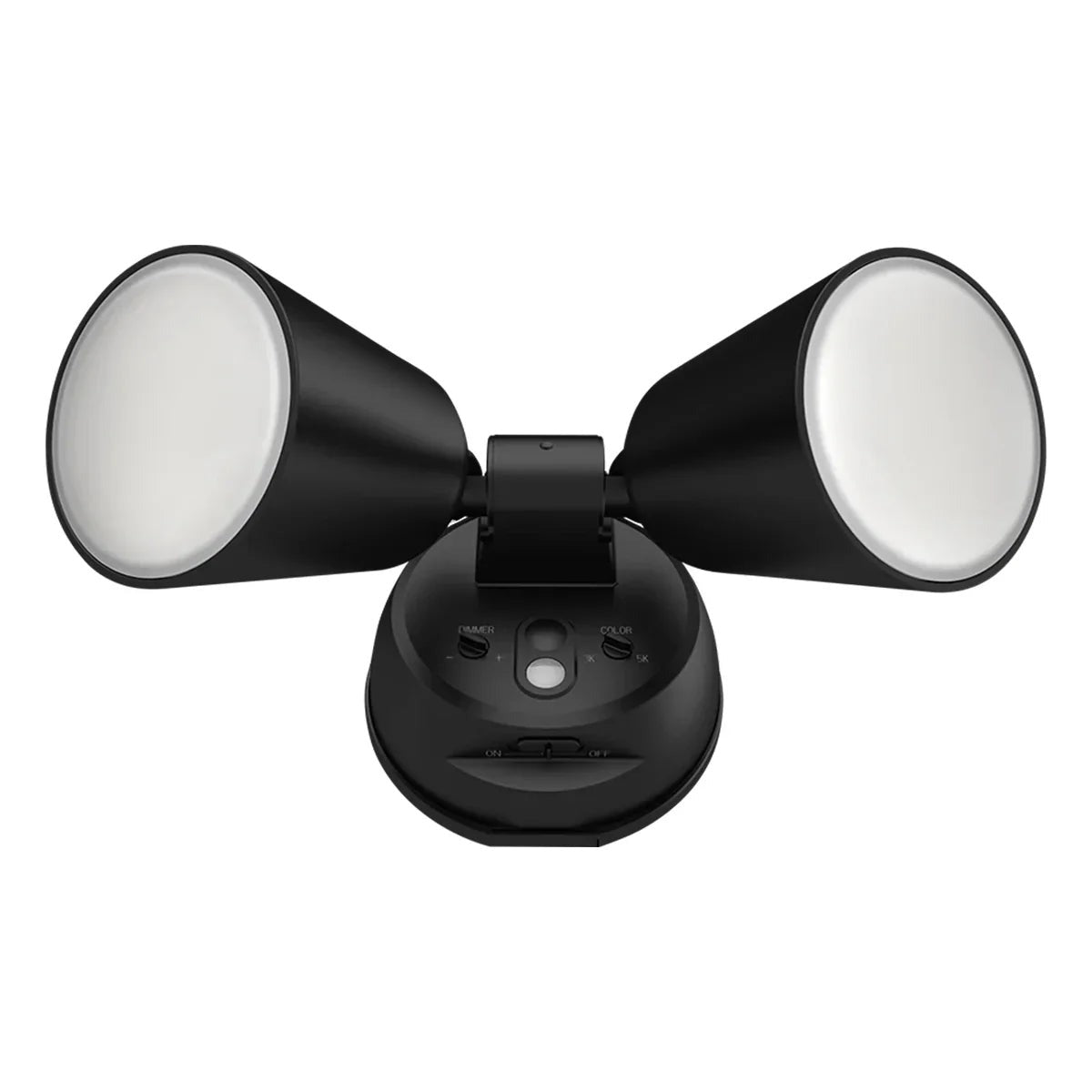

Rab Lighting L2XB Luminator 20W Floodlight (120V)

Brand: RAB LIGHTING
SKU: L2XB
Availability: In Stock

Ships same day if ordered by 12 pm
$87.66
$87.66
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Rab Lighting L2XB is a 20W CCT-tunable Luminator floodlight that provides selectable color temperatures from 3000K to 5000K and delivers approximately 2,000 to 2,094 lumens. The fixture uses a constant-current driver, is rated IP65 for wet locations, includes an integrated photocell with an on/off switch (default off), and has an L70 LED lifespan of 100,000 hours for exterior security and area lighting applications.

  • 20W constant-current LED floodlight, approx. 2,000–2,094 lumens; efficacy ~102–105.8 lm/W
  • Field-selectable CCT 3000K–5000K; integrated photocell with on/off switch (factory default off)
  • Polycarbonate housing, reflector and lens; IP65 wet-location rating; 100,000-hour L70 rated life

Product Highlights

CCT-tunable 20W outdoor floodlight, integrated photocell, IP65 rated, 100,000-hour L70, DLC and UL listed

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: L2XB
  • Country of Origin: Cambodia
Technical Specifications
Brand
Rab Lighting
Manufacturer Part Number
L2XB
Family
L2X CCT-Tunable Floodlight
Wattage
20W
Input Watts
19.6 / 19.7 / 19.8 W
Input Voltage
120V (product is 120V model; other voltages referenced in electrical info)
Input Current
0.20 A at 120V
Color Temperature
3000K - 5000K (field-selectable, 3 discrete CCT settings)
Delivered Lumens
2,000 / 2,072 / 2,094 lm
Efficacy
102 / 105.2 / 105.8 lm/W
CRI
81 / 84 / 84
LED Lifespan (L70)
100,000 Hours
Driver Type
Constant-current driver, Class 1
THD
13.37% at 120V
Power Factor
0.979 (97.9%) at 120V
Surge Protection
1 kV
Photocell
Integrated photocell included with on/off switch (factory default: off)
Dim to Off
No
Dimming
Not specified
Mounting Type
Wall mount (also suitable for eave or ceiling mount up to 12 ft per additional sources)
Housing Material
Polycarbonate
Reflector Material
Polycarbonate
Lens Material
Polycarbonate
IP Rating
IP65 (suitable for wet locations)
Listings
UL Listed; DLC Listed
Certifications
IESNA LM-79 & LM-80 tested; Trade Agreements Act compliant
Maximum Ambient Temperature
122 F (50 C)
Cold Weather Starting
-4 F (-20 C)
