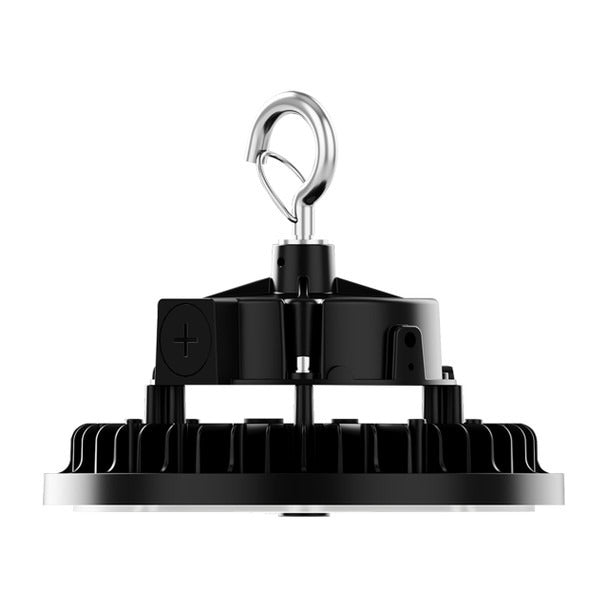

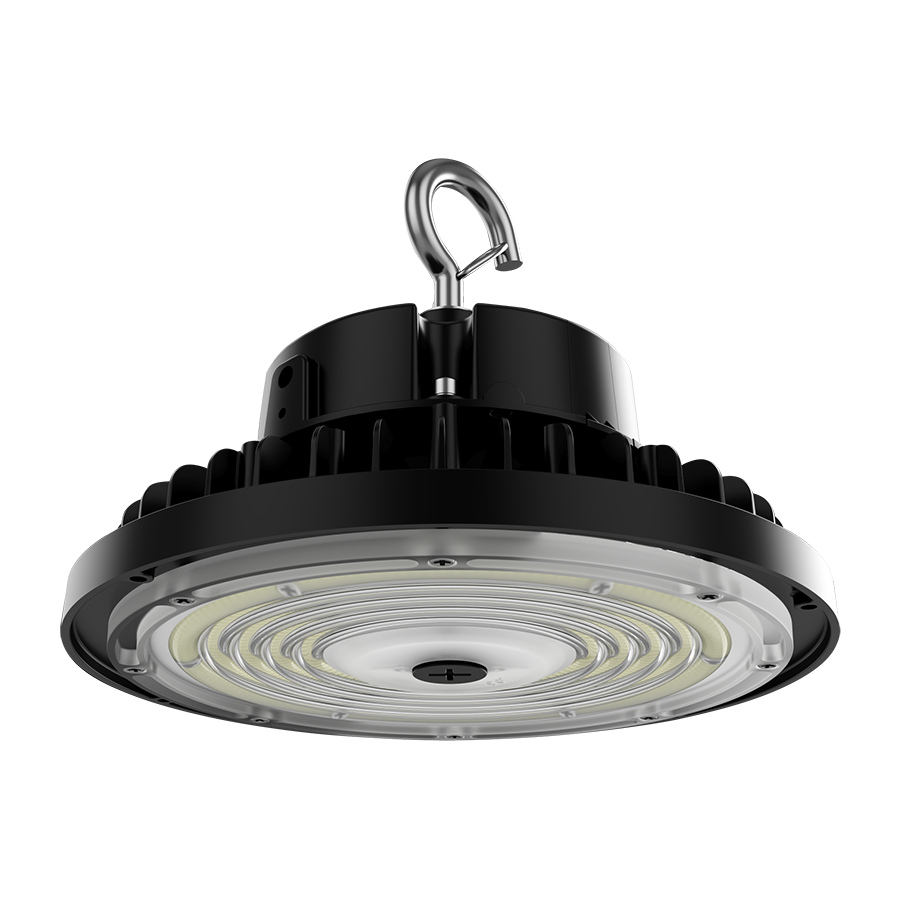

Rab Lighting H15B H15 Field-Adjustable High Bay 150/120/100W (9.06 in) H15B

Brand: RAB LIGHTING
SKU: H15B
Availability: In Stock

Ships same day if ordered by 12 pm
$140.91
$140.91
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Rab Lighting H15B is a field-adjustable LED high bay that provides selectable light output of 150W, 120W, or 100W and selectable color temperatures of 3000K, 4000K, or 5000K. It operates on a 120–277V constant-current driver with standard 0–10V dimming, includes 6 kV + 6 kV surge protection, and carries an IP65 rating for wet locations. The fixture delivers 14,708–23,024 lumens, a 100,000-hour L70 lifespan, and mounts via hanging hook or pendant.

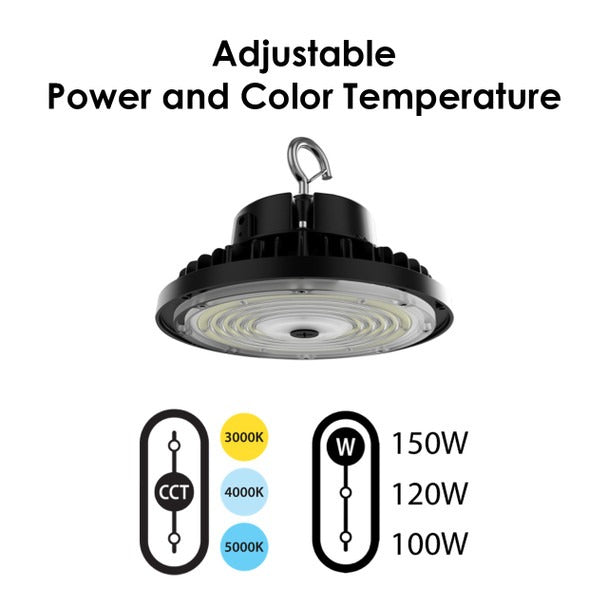

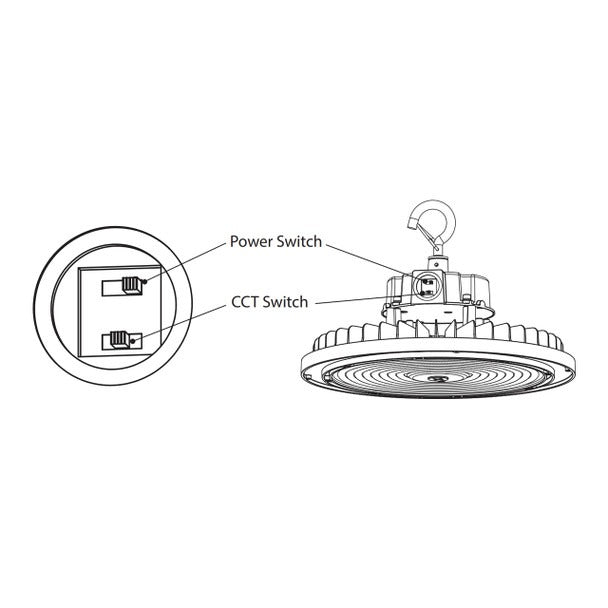

  • Field-adjustable wattage: 150W / 120W / 100W and selectable CCT: 3000K / 4000K / 5000K
  • 120–277V constant-current driver with 0–10V dimming, 6 kV + 6 kV surge protection, IP65 for wet locations
  • Long-life LEDs (100,000-hour L70), 14,708–23,024 lumens, precision die-cast aluminum housing with polycarbonate lens

Product Highlights

Field-adjustable 150/120/100W; selectable 3000/4000/5000K; IP65; 14,708–23,024 lm; 100,000-hour L70

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: H15B
Technical Specifications
Brand
Rab Lighting
MPN
H15B
Model
H15B
Type
Constant current LED high bay
Wattage
150 / 120 / 100 W (field adjustable)
Lumens
14,708 - 23,024 lm
Efficacy
133.3 - 167.7 lm/W
Color Temperature
3000K / 4000K / 5000K (field selectable)
CRI
81-83
L70 Lifespan
100,000 Hours
Input Voltage
120-277 V
Input Current
150W: 1.25A / 0.72A / 0.64A / 0.55A (approx. @120/208/240/277V); 120W: 0.98A / 0.57A / 0.50A / 0.44A; 100W: 0.84A / 0.49A / 0.43A / 0.38A
Input Watts
95.1 - 155.1 W
Driver
Constant current, 120-277V, 50/60 Hz
Dimming
0-10V (dims to 10%)
Dim to Off
Yes
Surge Protection
6 kV + 6 kV
IP Rating
IP65
Operating Temperature
-40°F (-40°C) to 122°F (50°C)
Cold Weather Starting
-40°F (-40°C)
Mounting
Hanging hook with 6-foot cord; pendant mount capable (pendant by others)
Expansion Port
Yes (for add-on sensors, PIR/microwave, Lightcloud Blue-enabled)
Housing Material
Precision die-cast aluminum
Lens Material
Polycarbonate diffused lens
Reflector
Polycarbonate and aluminum (reflector accessories sold separately)
Dimensions
9.06 in. diameter x 4.75 in. height
Weight
4.1 lb
Equivalent
Replaces 350-400W metal halide
Listings/Compliance
UL listed; Suitable for wet locations; DLC listed; IESNA LM-79 & LM-80 testing
DLC ID
S-XDBZ3C
