Rab Lighting ECOMBO34-RG Exit Emergency Combo 1.8W (2-Head)

Brand: RAB LIGHTING
SKU: ECOMBO34-RG
Availability: In Stock

Ships same day if ordered by 12 pm
$65.05
$65.05
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

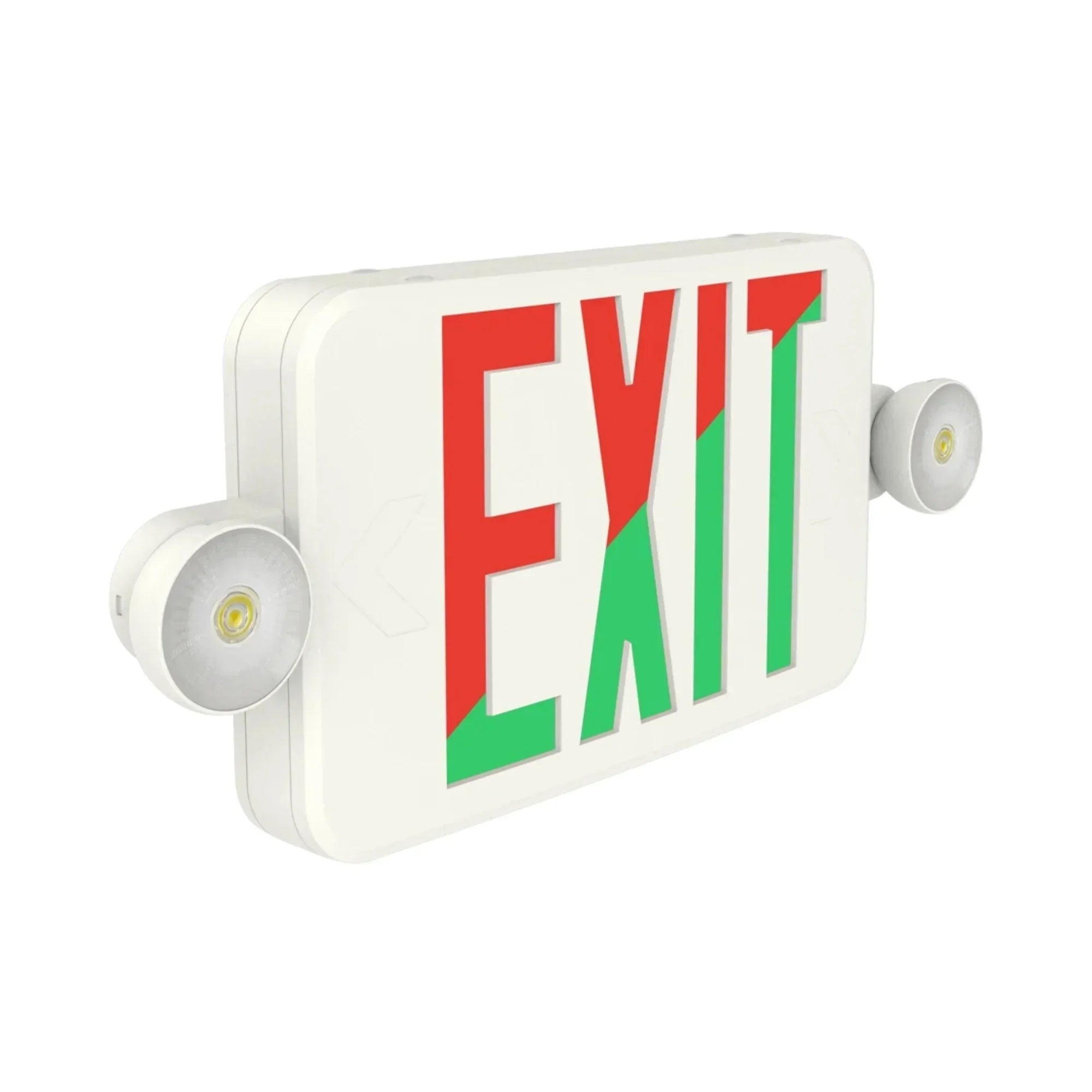

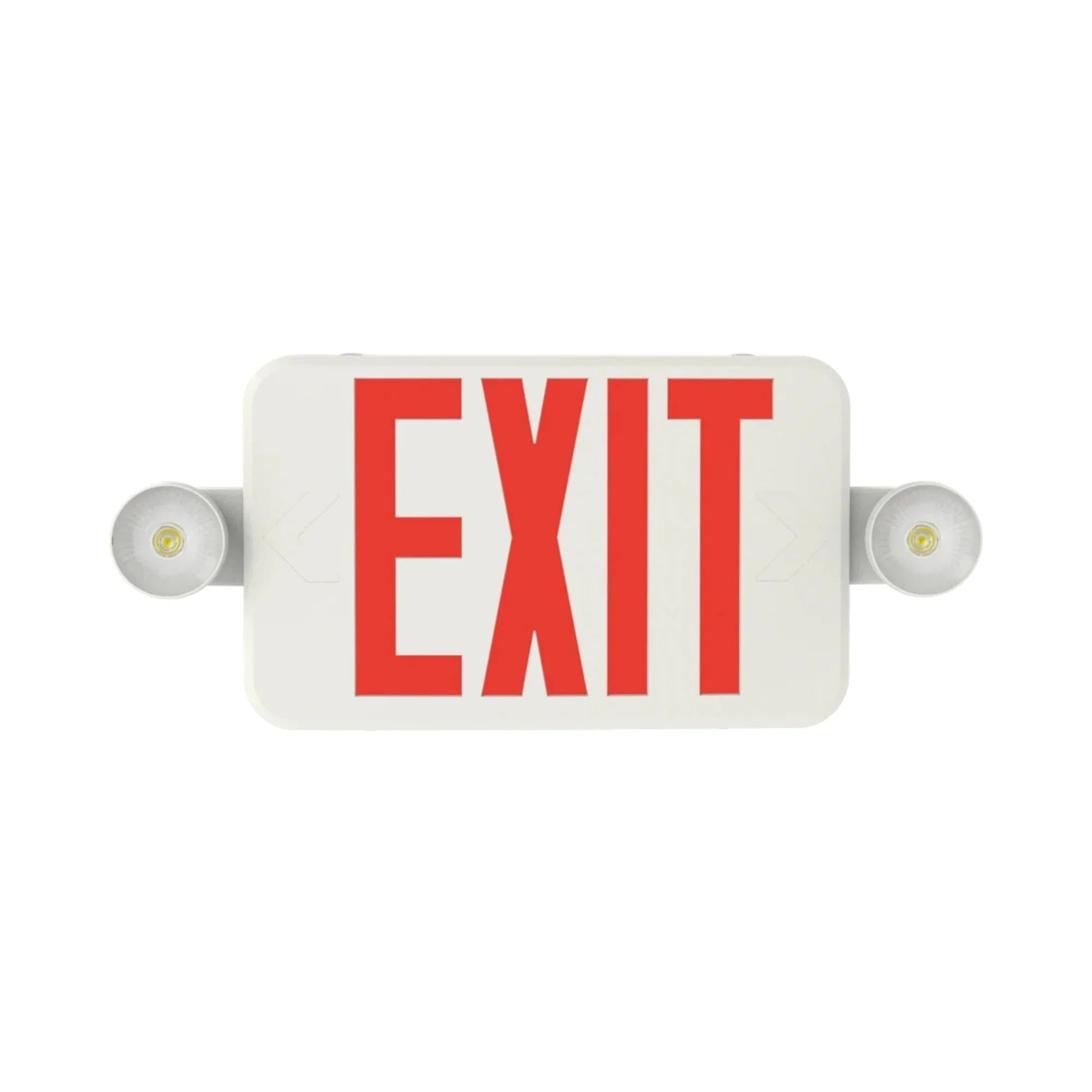

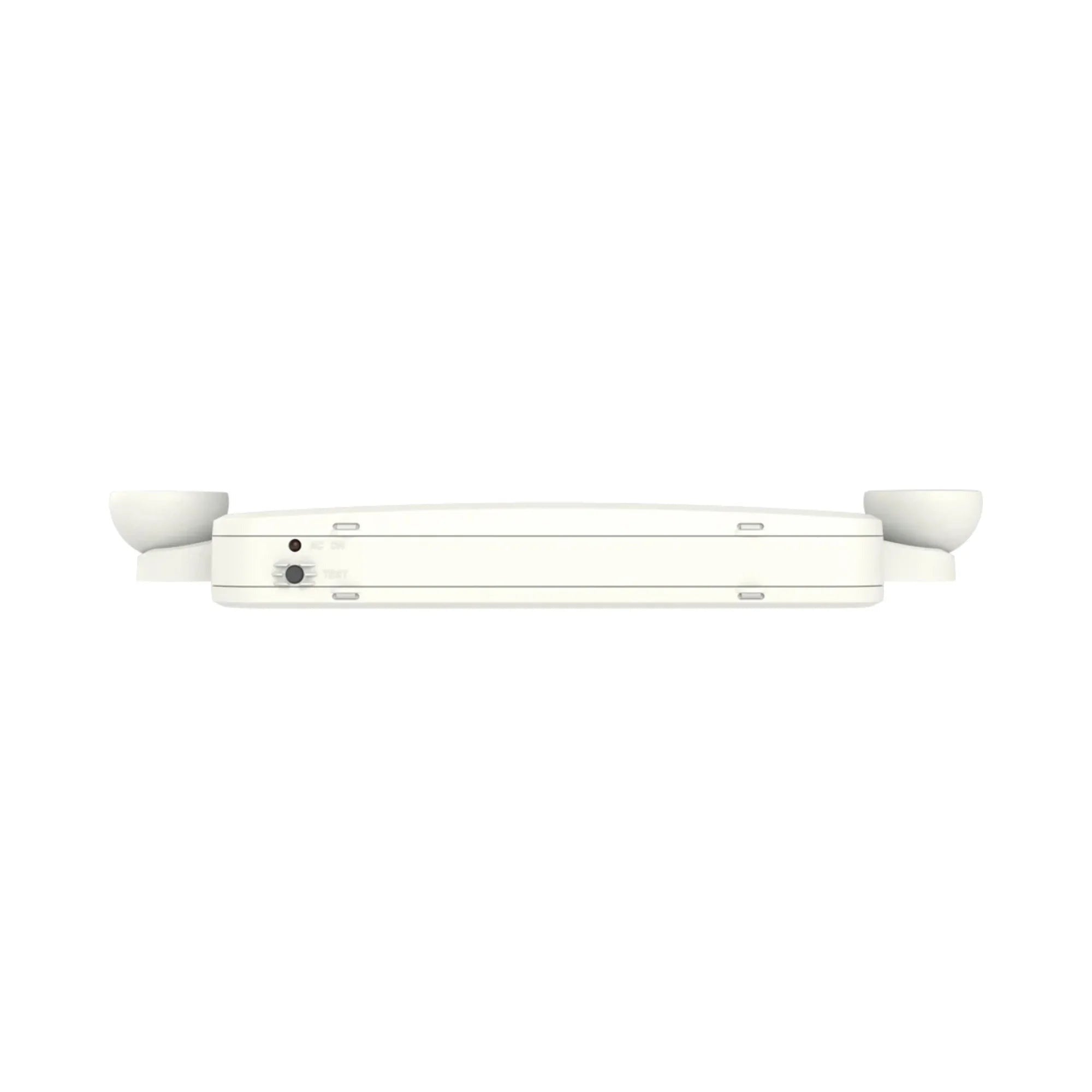

RAB Lighting ECOMBO34-RG is an LED exit/emergency combo that combines two emergency lamp heads with selectable red/green lettering. The unit accepts universal 120–277V input, provides 160 lumens from dual LED heads at ultra-low input power, and delivers 90 minutes of emergency illumination from a built-in 3.6V 1000mAh Ni-MH battery. It mounts to a standard J-box and is supplied with two faces for single- or double-face installation.

  • LED lamp heads delivering 160 lumens total with adjustable orientation (330° rotation, 40° tilt)
  • Universal 120–277V input with ultra-low input power (1.8W) and 90-minute battery backup (3.6V 1000mAh Ni-MH)
  • Steel housing, two-face convertible configuration, universal J-box mounting for wall or ceiling applications

Product Highlights

LED exit/emergency combo, universal 120–277V, 90-minute Ni-MH battery backup, dual adjustable heads, two-face convertible

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: ECOMBO34-RG
  • Country of Origin: United States
Technical Specifications
Brand
RAB Lighting
MPN
ECOMBO34-RG
Model
ECOMBO34
Product Type
Exit emergency combo
Lamp Type
LED
Housing Material
Steel
Number of Faces
2 (convertible single/double face)
Letter Colors
Selectable red/green
Input Voltage
Universal 120-277V
Input Power
1.8W (typical)
Maximum Output Wattage
2.2W (maximum)
Delivered Lumens
160 lm (total from dual heads)
Emergency Runtime
90 minutes
Battery
Built-in 3.6V 1000mAh Ni-MH
Recharge Time
Maximum 24 hours
Head Orientation
Adjustable heads; 330° rotation, 40° tilt
Operating Frequency
50/60 Hz
Operating Temperature
32°F to 104°F (0°C to 40°C)
Mounting
Universal J-box mounting pattern; wall or ceiling surface mount; back/top/side mounting options
Application
Wall or ceiling exit/emergency illumination
Emergency Egress Coverage
14' x 3' (mounted at 7.5 ft)
IP Rating
IP20
Listings and Compliance
UL924 listed; NFPA 101; NEC; OSHA; California Title 20 compliant

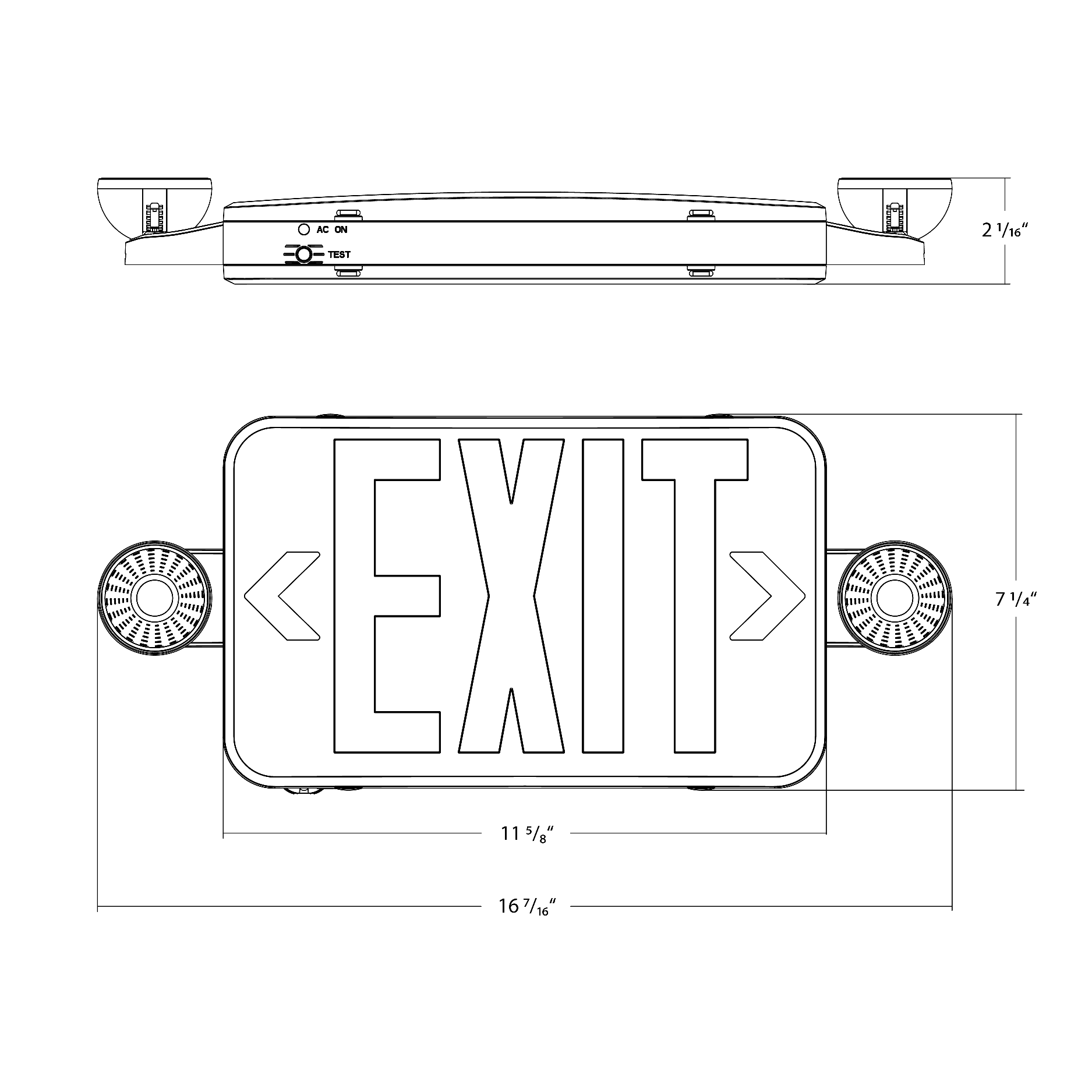

Dimensions (L x W x H)
16.44 in x 2.06 in x 7.25 in
Weight (manufacturer spec)
2.6 lb
Additional Features
Field-installable removable chevrons; integrated test switch and charge indicator
