Rab Lighting ALEDM3TSF ALED Field-Adjustable Area Light 150W (Medium)

Brand: RAB LIGHTING
SKU: ALEDM3TSF
Availability: Out Of Stock
$1,588.42
$1,588.42
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

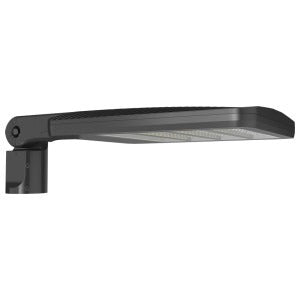

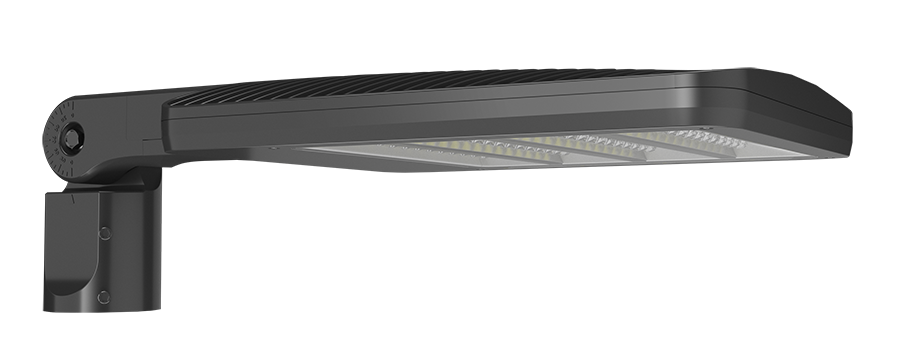

RAB Lighting ALEDM3TSF is a medium field-adjustable LED area light with three discrete output settings (150W factory default, 90W, 78W). It provides 5000K color temperature, Type III distribution, and a constant-current driver for 120-277V operation. The fixture features an IP66-rated die-cast aluminum housing, polycarbonate lens, 0-10V dimming to 10%, surge protection, and a 100,000-hour L70 LED lifespan.

  • Field-adjustable wattage: 150W / 90W / 78W (factory default 150W) with Type III distribution
  • 0-10V dimming to 10%, constant-current driver (120-277V) and built-in surge protection (10 kV L-L, 6 kV L-G)
  • IP66 rated die-cast aluminum housing with polycarbonate lens, 2 3/8" slipfitter mount, 100,000-hour L70 lifespan

Product Highlights

Medium slipfitter area luminaire; three-step field-adjustable wattage; IP66, 0-10V dimmable, 100,000-hour L70.

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: ALEDM3TSF
  • Country of Origin: Cambodia
Technical Specifications
Brand
RAB Lighting
Model
ALEDM3TSF
Family
ALED Field-Adjustable Area Lights
Wattage (Field Adjustable)
150W / 90W / 78W (factory default 150W)
Input Voltage
120-277V
Input Watts
76 / 91.6 / 148.2 W
Lumens
10603 / 12617 / 19192 lm
Efficacy
139.5 / 137.7 / 129.5 lm/W
Color Temperature
5000K
Color Rendering Index (CRI)
85
L70 Lifespan
100,000 Hours
Type / Distribution
Type III distribution
Driver
78W & 90W: Constant Current, Class 2, 120-277V, 50/60 Hz; 150W: Constant Current, Non-Class 2, 120-277V, 50/60 Hz
Dimming
0-10V dimming, dims down to 10%
Surge Protection
Line to Line: 10 kV; Line to Ground: 6 kV
THD
3.59% at 120V; 8% at 277V
Power Factor
1.00 at 120V; 0.957 at 277V
IP Rating
IP66
Listings
UL Listed; Suitable for wet locations; DLC (product family listed)
IES Testing
IESNA LM-79 & LM-80 tested
LED Characteristics
Long-life, high-efficacy discrete surface-mount LEDs; 7-step MacAdam Ellipse binning
Housing
Die-cast aluminum
Lens
Polycarbonate lens
Reflector
Aluminum reflector with white polycarbonate
Mounting
2 3/8" slipfitter mount with stainless steel hardware
Vibration Rating
3G per ANSI C136.31
Effective Projected Area (EPA)
1 Fixture: 0.42; 2 Fixtures @ 90°: 0.66; 2 Fixtures @ 180°: 0.83; 3 Fixtures @ 90°: 1.08; 4 Fixtures @ 90°: 1.08
Gaskets
High-temperature silicone gaskets
Cold Weather Starting
-40°F (-40°C)
Max Ambient Temperature
104°F (40°C) (power rating)
Tilt Increment
Rotates in 5 degree tilt increments
Bug Rating
150W: B2 U0 G3; 90W: B1 U0 G2; 78W: B1 U0 G2
Country of Origin
Product of Cambodia
