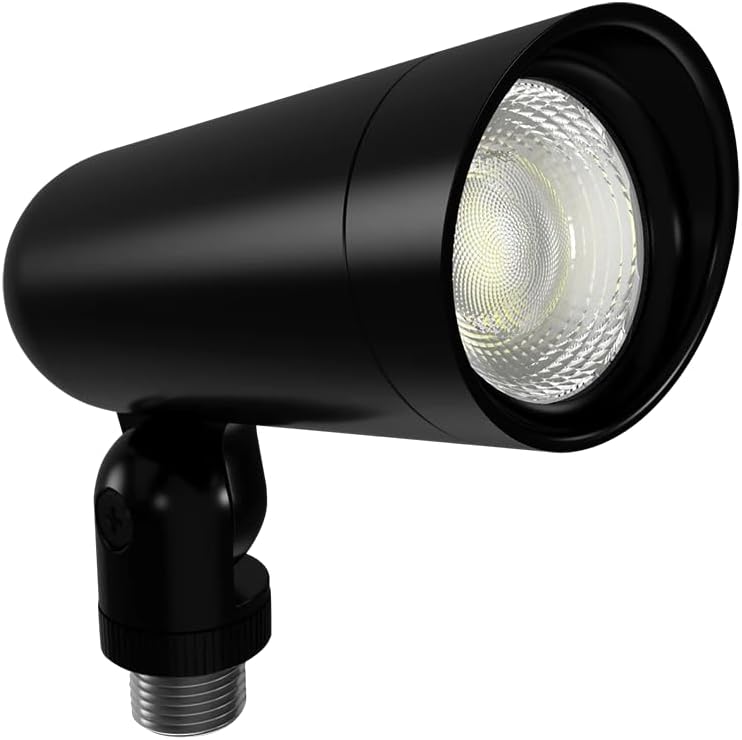

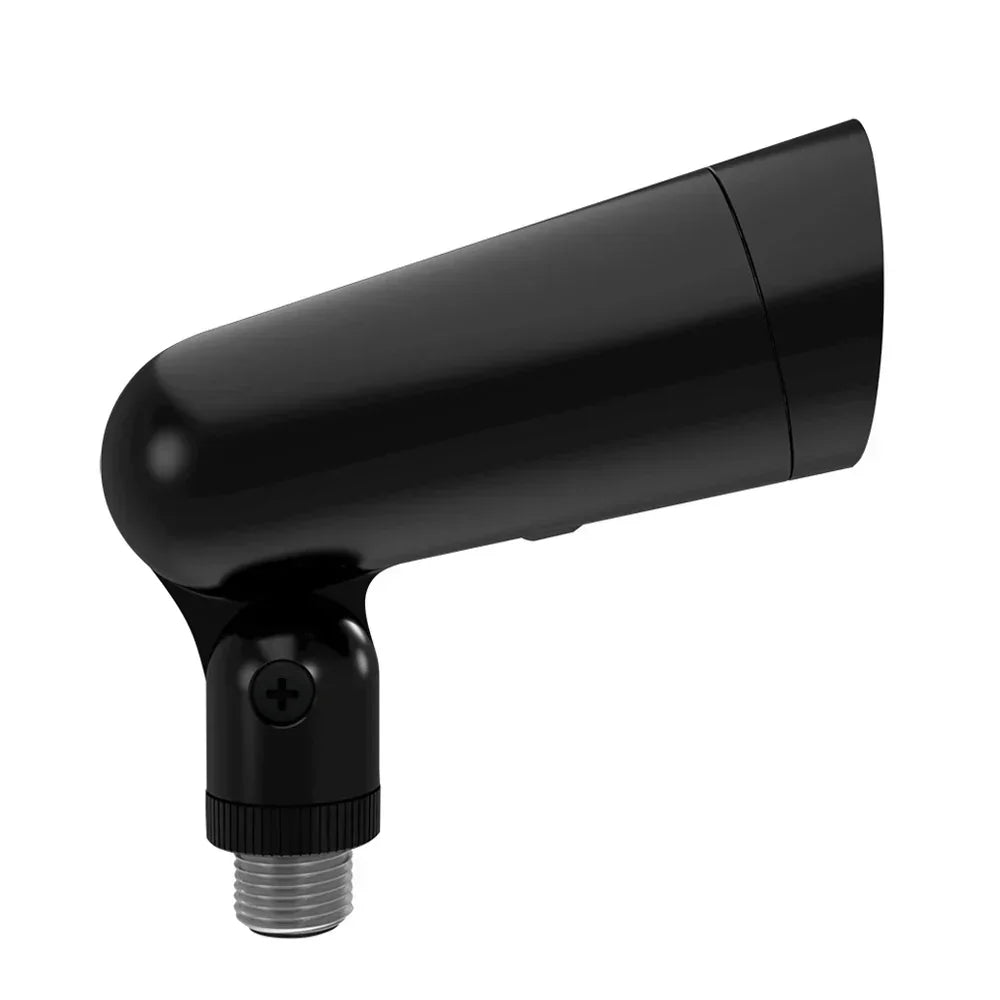

Rab LF34SB LF34 CCT Adjustable Floodlight 8W

Product Description

The RAB LF34SB LF34 CCT Adjustable Floodlight is an 8W floodlight with an adjustable color temperature. It features a 100,000-hour LED life and TRIAC dimming. With an IP65 rating, it is protected against dust and water.

• 8W 2700/3000/3500/4000/5000K
• 100,000-hour LED Life
• TRIAC dimming

Product Highlights

This adjustable floodlight is suitable for wet locations and is Trade Agreements Act compliant.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: LF34SB
• Country of Origin: Cambodia

Technical Specifications

• Field Adjustability: Field Adjustable
• Field Adjustable Light Output: Color temperature selectable by 2700K, 3000K, 3500K, 4000K and 5000K (default: 4000K)
• UL Listed: Suitable for wet locations
• IP Rating: Ingress protection rating of IP65 for dust and water
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• LEDs: Long-life, high-efficacy, discrete, surface-mount LEDs
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
• Driver: Constant Current, Class 2, 120V, 50/60 Hz, 120V: 0.07A
• THD: 13.41% at 120V
• Power Factor: 97.1% at 120V
• Dimmable: Yes, 120V with TRIAC dimmer
• Dim to Off: Yes
• Aux Power Supply: No
• Surge Protection: 2.5 kV
• Lifespan: 100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Cold Weather Starting: The minimum starting temperature is -40 F (-40 C)
• Maximum Ambient Temperature: Suitable for use in up to 104 F (40 C)
• Housing: Die-cast aluminum
• Tilt Increment: Rotates in 2 degree increments
• Lens: Tempered glass
• Gaskets: High-temperature silicone
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Mounting: Knuckle arm mount
• Brand: RAB Lighting
• Manufacturer Part Number: LF34SB
• UPC: 192552042208
• Lumens: 1,043 Lumens
• Wattage: 8 Watts
• Input Voltage: 120V
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Lamp / Base Type: Integrated LED
• Rated Hours: 100,000 Hours
• Min Operating Temp: -40 Degrees F
• CRI: 80+
• Special Features: CCT Selectable, Wet Location Rated
• Length: 5.56"
• Width: 4.4 in
• Height: 4.38"
• Room Type: Outdoor
• Specific Uses For Product: Outdoor
• Indoor Outdoor Usage: Outdoor
• Power Source: Corded Electric
• Control Method: Touch
• Light Source: landscape
• Number of Light Sources: 1
• Light Color: Warm White to Cool White
• Lighting Method: LED
• Switch Type: Toggle
• Water Resistance Level: Water Resistant
• Brightness: 4000 lumen
• Efficiency: High Efficiency
• Mounting Type: Wall Mount
• Fixture Type: Non Removable
• Light Output Maximum: 4000 Lumens
• Installation Type: Surface Mount
• Required Assembly: No
• Dimensions Length/Depth: 5.6 in
• Material: Aluminum
• Bulb Included: Yes
• Integrated LED: Yes
• Color Rendering: 84 CRI
• Delivered Lumens: 1043
• Voltage: 120V
• Total Wattage: 8W
• MPN: LF34SB
• Family: LF34 CCT
• Lamp Life: 100,000 hours
• Pack Size: 1/ea
• UOM: ea
• UNSPSC: 39111626
• de Part Number: RABLF34SB
• Manufacturer Catalog Number: LF34SB
