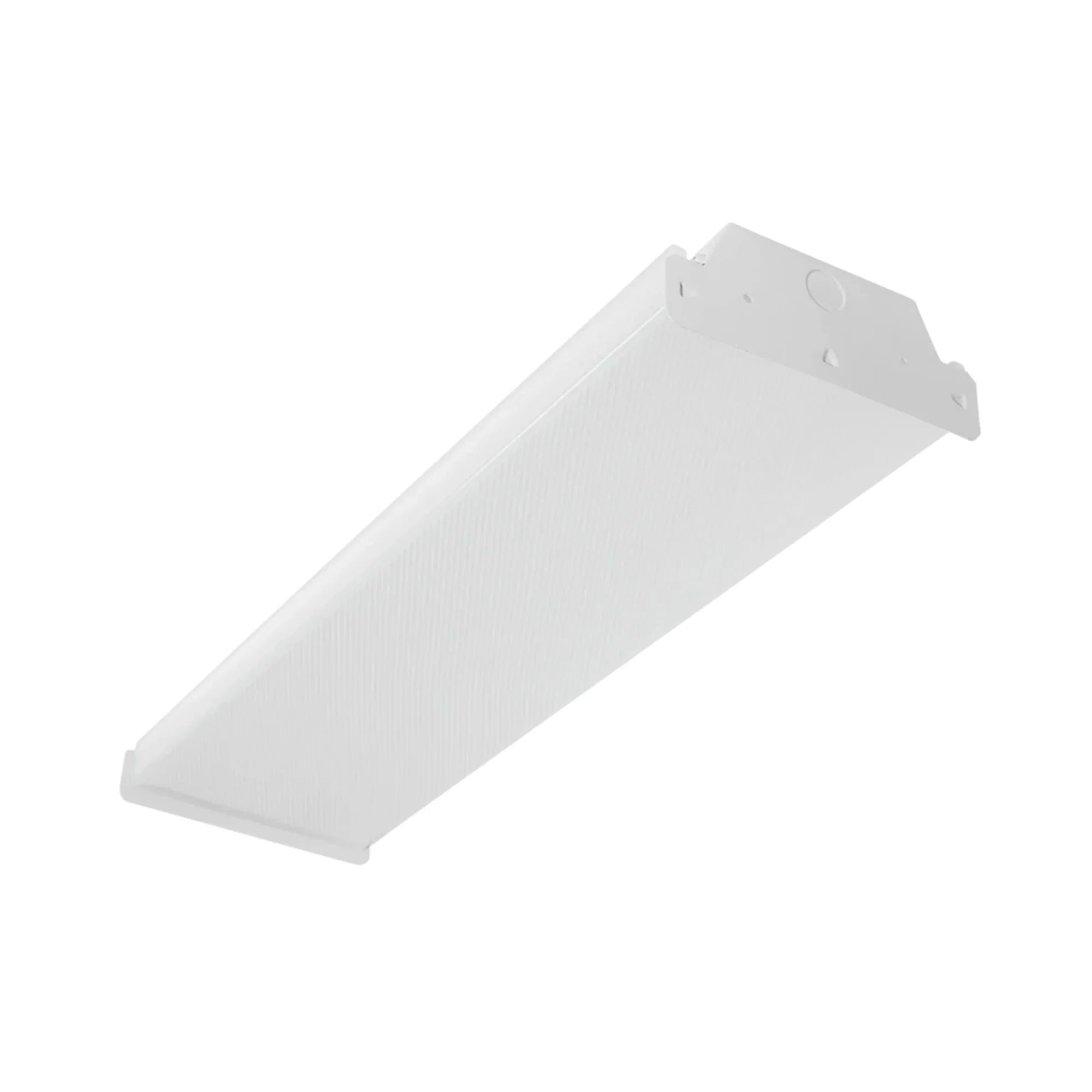

Rab GUSJR2 20W LT FX (2ft) GUSJR2-C

Product Description

Rab GUSJR2 is a field-adjustable 2 ft wraparound LED fixture rated at 20W nominal and capable of selectable 20/15/10W output, delivering up to 2,790 lumens while operating on 120-277V. The fixture provides selectable color temperatures (3500K, 4000K, 5000K), a constant-current driver with 0-10V dimming and surge protection, a diffused PMMA lens, and a 24-gauge cold-rolled steel housing. It is rated for damp locations and 50,000-hour LED life.

• Field-adjustable wattage (20/15/10W) and selectable CCT (3500K, 4000K, 5000K); delivered lumens 1,382 to 2,790 and efficacy 126.2 to 143.8 lm/W
• Constant-current driver, 120-277V input, standard 0-10V dimming (to 10%), with 2 kV line-to-neutral and 4 kV line/neutral-to-ground surge protection
• Diffused PMMA lens with 24-gauge cold-rolled steel housing, surface mountable, rated for damp locations, 50,000-hour L70 life

Product Highlights

Field-adjustable 2 ft LED wrap with selectable 20/15/10W and 3500/4000/5000K, 120-277V input and 0-10V dimming, up to 2,790 lumens, DLC and UL damp location listings, 50,000-hour life

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: GUSJR2
• Country of Origin: Cambodia
