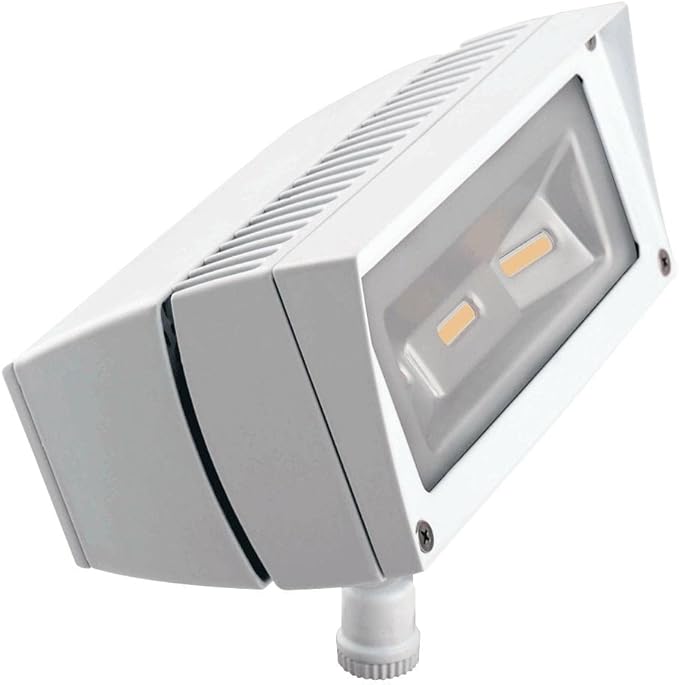

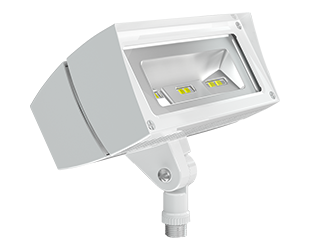

Rab FFLED18W Floodlight Fixture With ON/OFF Driver, LED Lamp, 18 W

Product Description

The RAB FFLED18W floodlight fixture features an ON/OFF driver and an 18W LED lamp. This rectangular-shaped LED floodlight is designed to replace 70W Metal Halide. It utilizes patent-pending airflow technology to ensure long LED and driver lifespan, along with an ultra-efficient LED and optical design. It is suitable for wet locations, building facade lighting, sign lighting, LED landscape lighting, and instant-on security lighting.

• Replaces 70W Metal Halide
• Features patent pending airflow technology ensures long LED and driver lifespan
• Ultra efficient LED and optical design

Product Highlights

This floodlight is designed for building facade, sign, and security lighting. It features airflow technology and an ultra-efficient LED design.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: FFLED18W
• Country of Origin: Cambodia

Technical Specifications

• Mounting Type: Arm
• Fixture Wattage: 22 W
• Housing Material: Aluminum
• Housing Finish: White
• Color Rendering Index (CRI): 69
• Lamp Type: LED
• Lumens: 1624 Lumens
• Amperage Rating: 0.2/0.15/0.13/0.11 A
• Voltage Rating: 100 to 240/277 VAC
• Dimensions: 7 in H x 8-5/8 in W x 5-1/8 in D
• Average Life: 100000 hr
• Color Temperature: 5000 K
• Lamp Wattage: 18 W
• Enclosure Type: NEMA 7H x 6V/IP65
• Vendor SKU: FFLED18W
• UPC: 019813176055
• UNSPSC: 39112102
• Application: Wet Locations, Building Facade Lighting, Sign Lighting, Led Landscape Lighting and Instant-on Security Lighting
• Manufacturer: RAB Lighting
• Brand: RAB
• Efficacy: 123.3 lm/W
• 120V: 0.2A
• 208V: 0.15A
• 240V: 0.13A
• 277V: 0.11A
• Input Watts: 19.7W
• Driver: Constant Current, Class 2, 120-277V, 50 - 60 Hz, 120V: 0.2A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
• THD: 11.89% at 120V, 17.78% at 277V
• Power Factor: 98.7% at 120V, 91% at 277V
• Surge Protection: 6 kV
• Lifespan: 100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Wattage Equivalency: Equivalent to 70W Metal Halide
• IP Rating: Ingress protection rating of IP66 for dust and water
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
• UL Listed: Suitable for wet locations. Suitable for ground mounting.
• Trade Agreements Act Compliant: This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
• DLC Product Code: S-ZL2GY0
• NEMA Type: NEMA Beam Spread 7H x 6V
• Airflow: Airflow technology heat sink for superior cooling
• Ambient Temperature: Suitable for use in up to 104°F (40°C)
• Cold Weather Starting: The minimum starting temperature is -40°F (-40°C)
• Thermal Management Housing: Die-cast aluminum housing, lens frame and mounting arm
• Reflector: Semi-specular anodized aluminum
• Gaskets: High-temperature silicone gaskets
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.
• LEDs: Multi-chip, high-output, long-life LEDs
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
• Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screw
• CA Title 24: Compliant
• Life Hours: 100,000
• Wattage: 18 Watt
• Fixture Type: Landscape
• Voltage: 120/208/240
• Metal Halide Equal: 70 Watt
• Housing: Die Cast Aluminum
• Start Temp. (Min): -40 Deg. F
• Start Temp. (Max): 104 Deg. F
• Height: 7 in.
• Width: 8.63 in.
• Depth: 5.13 in.
• Warranty: 5-Year Limited
• Model Name: FFLED18W
• Part Number: FFLED18W
• Item model number: FFLED18W
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• Warranty Description: Manufacture warranty.
• Light Output Maximum: 1624 Lumens
