Rab ELX Edge-Lit Exit Sign 4.5W (Single Face) ELX

Brand: RAB
SKU: ELX
Availability: In Stock

Ships same day if ordered by 12 pm
$149.97
$149.97
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

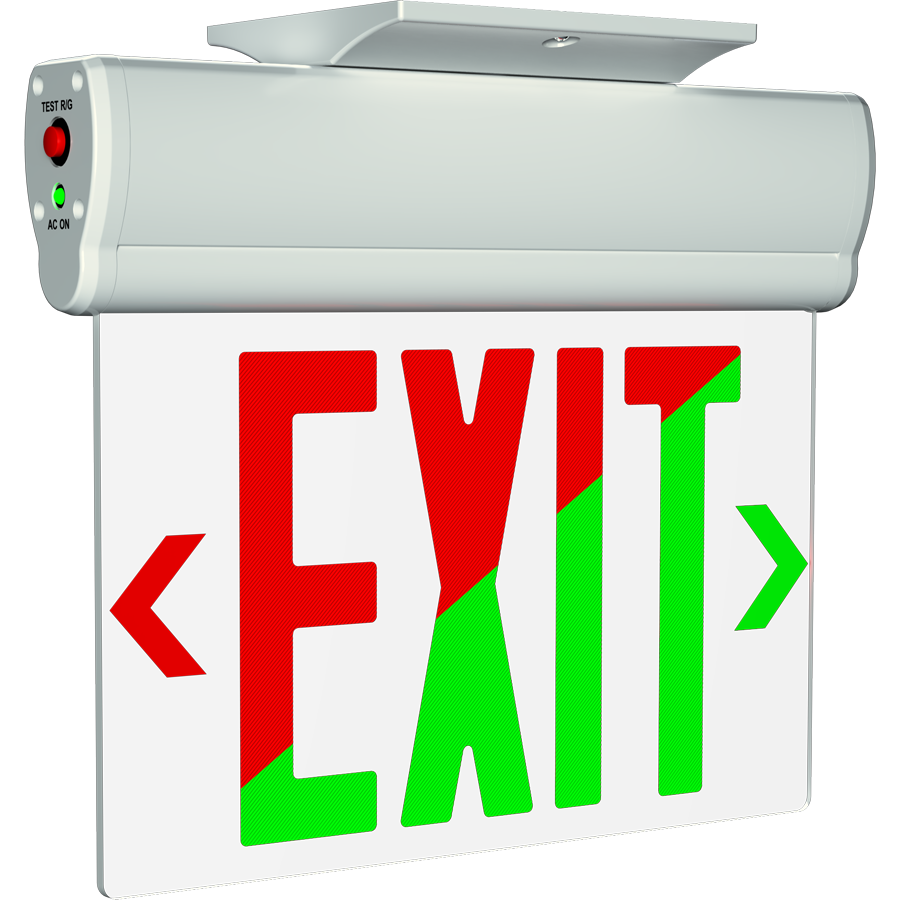

Rab ELX is a Chicago-approved edge-lit exit sign (MPN ELX) designed for indoor dry and damp environments. The single-face sign uses acrylic or mirror panels and an aluminum housing, provides emergency battery backup with a nickel-cadmium 4.8V battery and offers multiple mounting options for wall, ceiling, end and recessed installations.

  • Emergency battery backup: nickel cadmium 4.8V battery with 120 minutes emergency illumination and 24-hour recharge time
  • Electrical: 120/277V input; input wattage 4.5W @120V and 4.9W @277V; power factor >=0.9; input current 42mA @120V, 20mA @277V
  • Mechanical: single-face edge-lit format, acrylic or mirror panel options, aluminum housing, multiple mounting methods with included hardware

Product Highlights

Chicago-approved edge-lit exit sign with nickel-cadmium emergency backup, 120/277V operation, multiple mounting options, and UL924 listing

Product Information

Standard Information

  • Brand: RAB
  • Manufacturer Part Number: ELX
Technical Specifications
Brand
Rab
Manufacturer Part Number
ELX
Product Type
Chicago-Approved Edge-Lit Exit Sign
Description
Chicago-approved edge-lit exit sign with a single face and emergency battery backup
Input Wattage
4.5W @120V; 4.9W @277V
Input Voltage
120/277V
Power Factor
>=0.9
Operating Frequency
60 Hz
Input Current @120V
42 mA
Input Current @277V
20 mA
Dual Voltage Circuit Operation
No
Operating Temperature
32 F to 122 F (0 C to 50 C)
Battery Type
Nickel Cadmium
Battery Voltage
4.8 V
Emergency Illumination Duration
120 minutes
Recharge Time Required
24 hours
Battery Operating Temperature
32 F to 122 F (0 C to 50 C)
Storage Temperature
68 F to 86 F (20 C to 30 C)
Storage Shelf Life
3 years before initial charge; 5 years after initial charge
Self Diagnostics
No (manual test only)
Remote Test Switch
No
Emergency Backup
Battery Backup
Mounting Method
Back/Top/End; includes hardware for surface ceiling, wall, end, recessed ceiling and recessed wall mounts
Mounting Type
Wall/Ceiling/Recessed/Sloped ceiling
Swivel/Pivot Capability
Field-selectable swivel/pivot keeps signage perpendicular on sloped installations
Cold Weather Rated
No
Shape
Rectangle
Housing Material
Aluminum
Panel Material
Acrylic (clear) or mirror panels included
Number of Faces
Single Face
Arrow Direction
Double Arrow
Arrow Material
Screen Print
Sign Format
Edge-lit
Remote Capacity
No
Listings and Compliance
UL924 Listed; NFPA 101, NEC and OSHA illumination standards; complies with FCC Part 15
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
CAELXTEU1RWAEM-DA
T20 Compliant
Can be used to conform with California Title 20 requirements
California Energy Commission Status
Lawful for Sales in California
City Compliance
Chicago Approved
LED Lifespan
50,000 hours (per family specification)
Damp Location Rating
Rated for use in damp locations

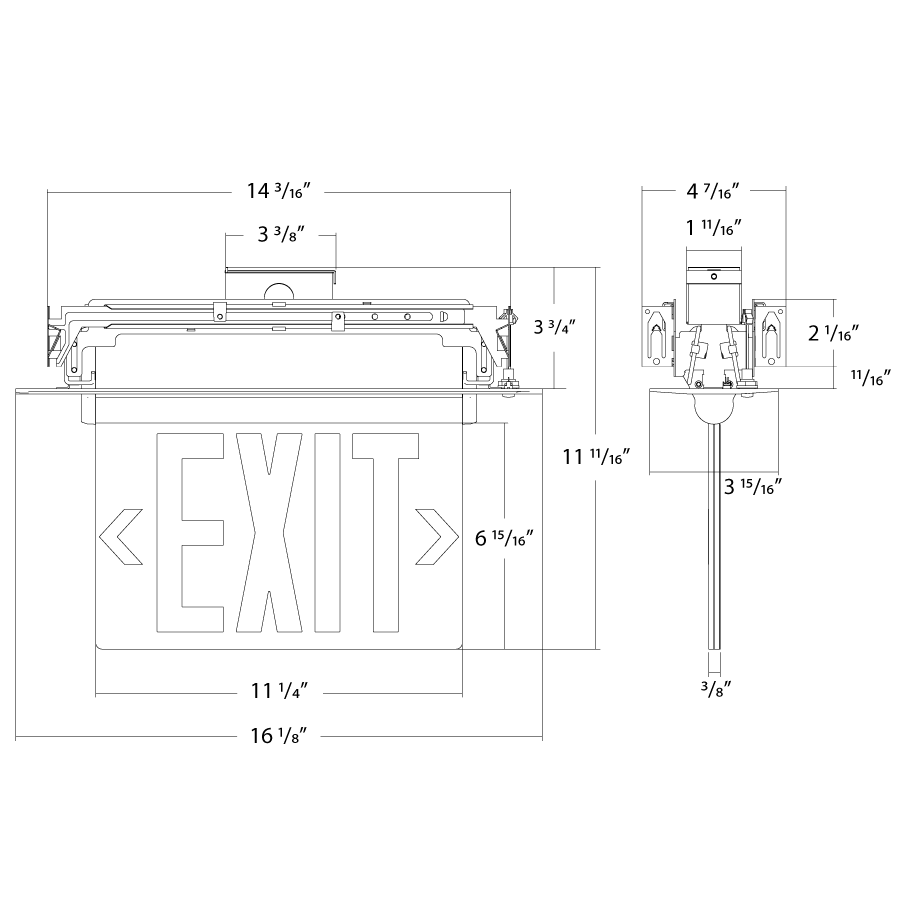

Dimensions
16 1/8" x 4 7/16" x 11 11/16"
