Product Description

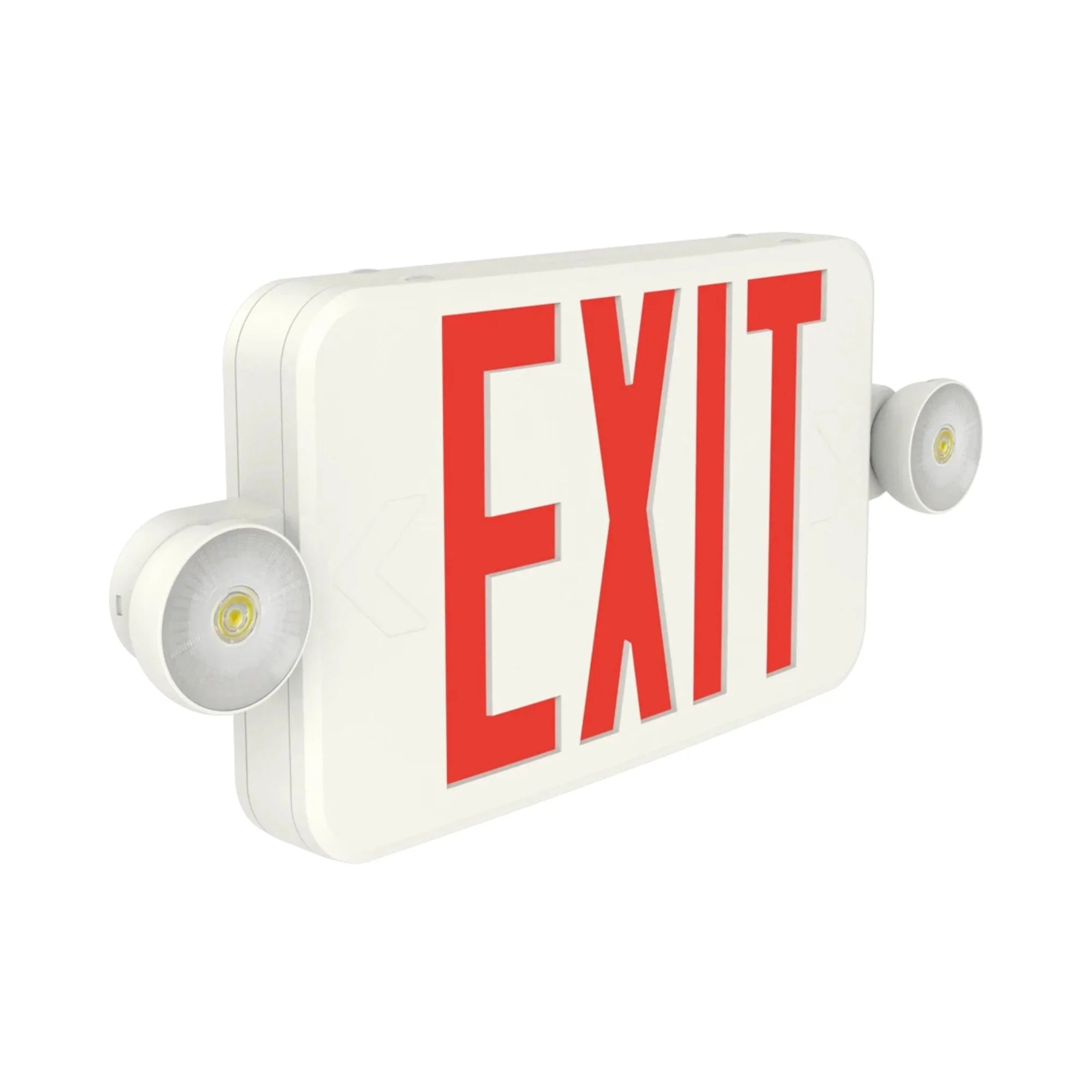

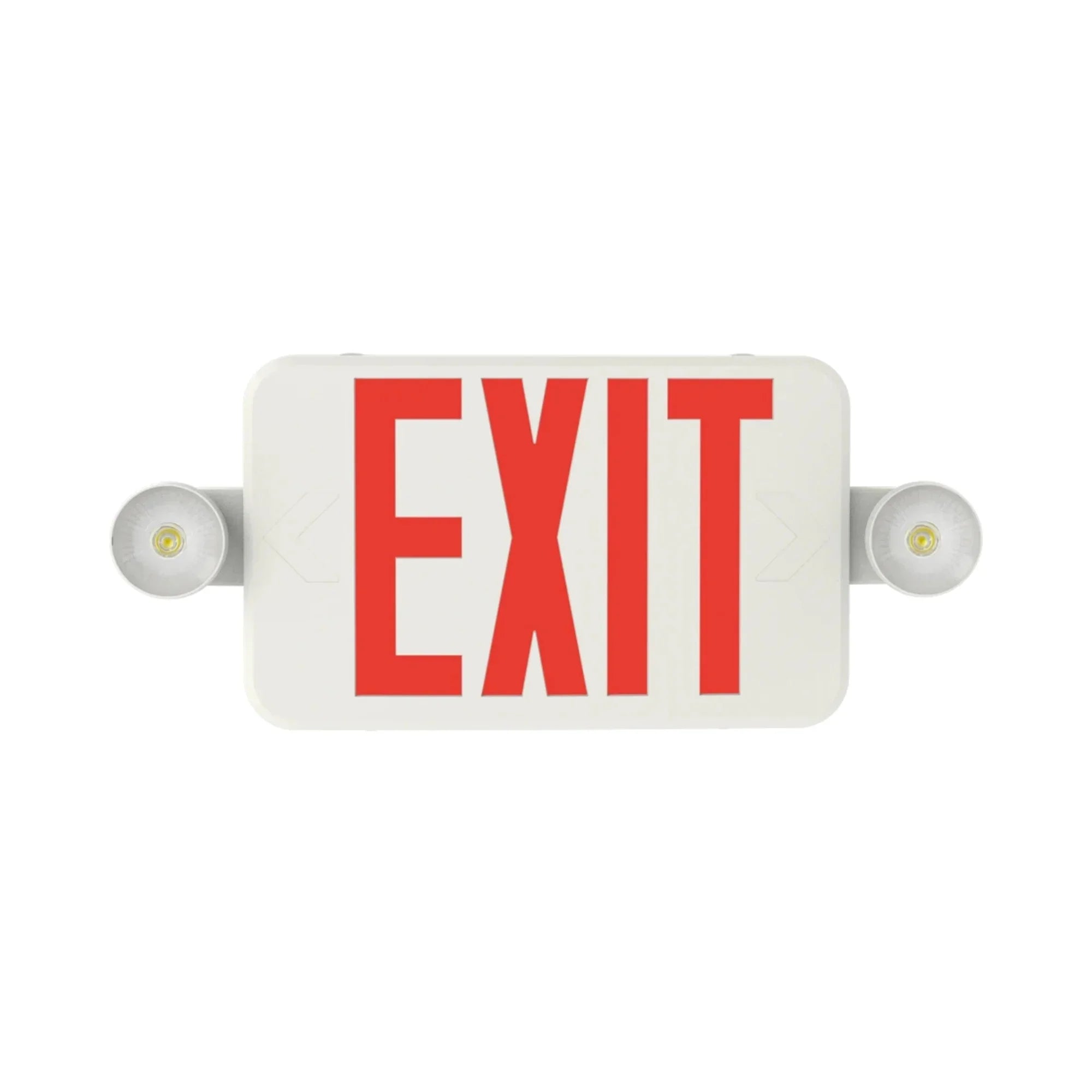

The RAB ECOMBO34 ultra-economy exit sign combo features selectable red/green letters and a 90-minute battery backup. The dual round emergency heads provide 160 lumens in a compact thermoplastic design. It has a low 2W input power with 120-277V operation. UL924 listed and FCC Part 15 compliant.
- Provides 160 lumens output from 2-lamp round emergency heads with 90-minute battery backup

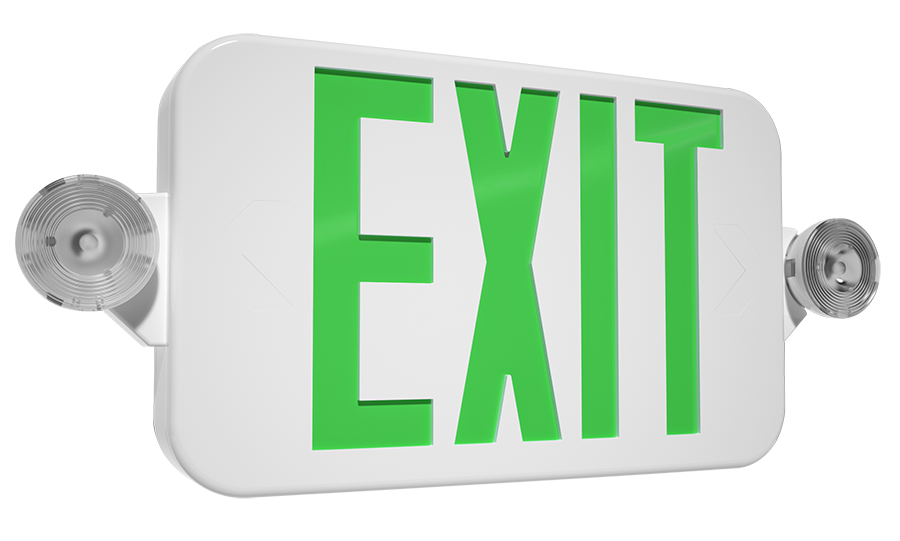

- Features red/green selectable letter color in universal single/double face configuration
- Has an operating temperature range of 32°F to 104°F for reliable performance
Product Highlights
This RAB exit sign combo offers selectable letter colors and emergency lighting in a compact, energy-efficient design, suitable for dry and damp environments.
Product Information
Standard Information
-
Brand: RAB
-
Manufacturer Part Number: ECOMBO34
Technical Specifications
-
Brand: RAB Lighting
-
Manufacturer Part Number: ECOMBO34-RG
-
UPC: 192552019897
-
Input Voltage: 120-277V AC
-
Product Type: Exit Combo - Ultra-economy exit sign combo with 90-minute emergency battery backup
-
Technology: LED
-
Letter Color: Red/Green (field selectable)
-
Face Configuration: Universal Single/Double Face
-
Sign Format: Stencil
-
Arrow Direction: Left/Right Arrow
-
Housing Material: Thermoplastic
-
Housing Color: White
-
Panel Material: Thermoplastic
-
Panel Color: White
-
Shape: Rectangle
-

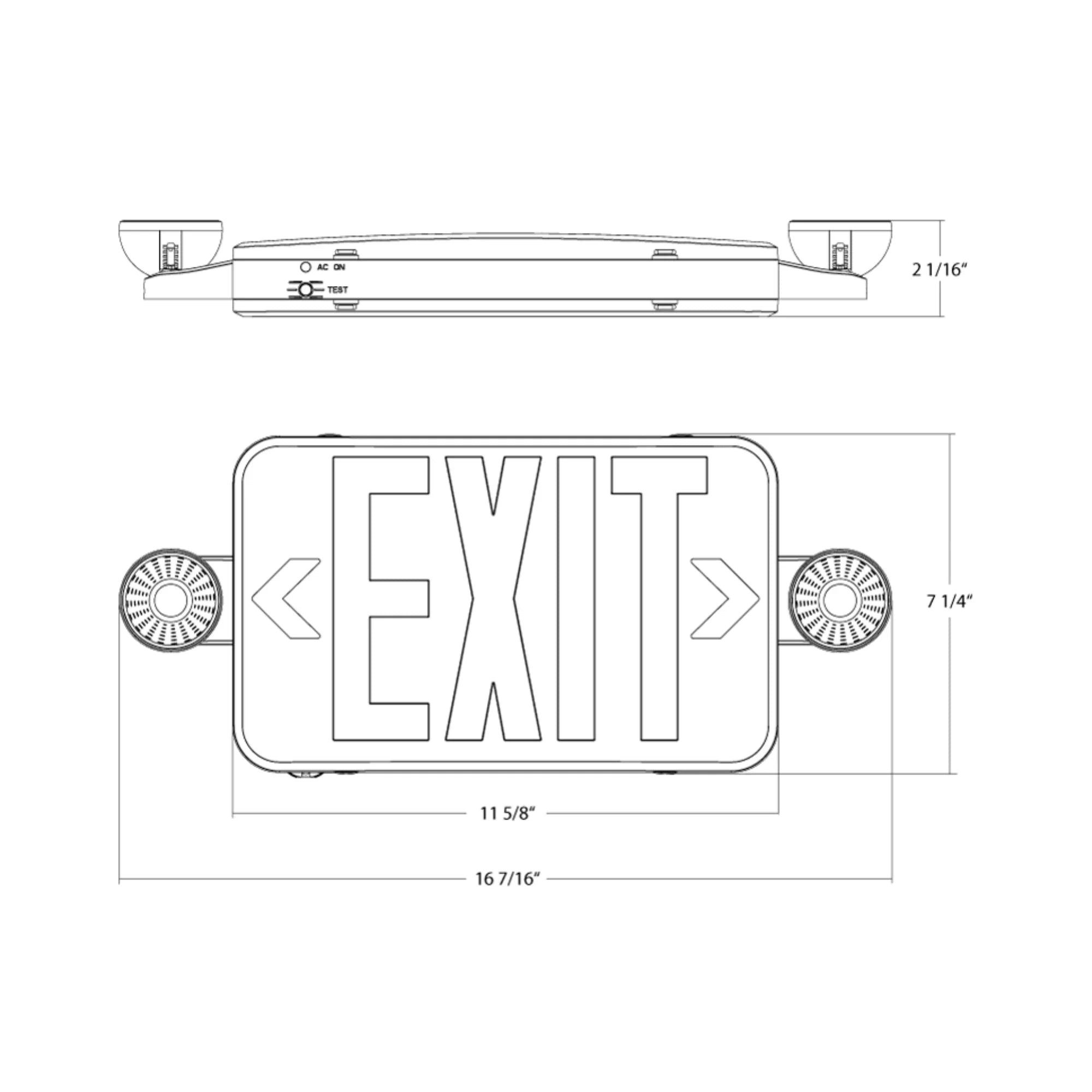

Face Dimensions: 11 5/8" W x 7 1/4" H
-
Emergency Light Heads: 2-Lamp Heads (round, non-replaceable)
-
Delivered Lumens: 160
-
Remote Head Lumens: 160lm total
-
Input Power: 2W
-
Operating Frequency: 50/60Hz
-
Input Current @ 120V: 35mA
-
Input Current @ 277V: 15mA
-
Maximum Output Wattage: 2.2W
-
Power Factor: 0.4
-
Battery Type: Nickel-Metal Hydride
-
Battery Voltage: 3.6V
-
Battery Backup Time: 90 minutes
-
Recharge Time: 24 hours
-
Battery Operating Temperature: 0°F to 50°F (32°C to 122°C)
-
Storage Temperature: 32°F to 104°F (0°C to 40°C)
-
Storage Shelf Life: 3 years before initial charge, 5 years after initial charge
-
Self Diagnostics: No, manual test only
-
Remote Test Switch: No (compatible with EREMOTE-RTS sold separately)
-
Remote Capacity: No
-
Mounting Method: Back/Top/Side
-
Mounting Type: Surface mount
-
Maximum Mounting Height: 20 ft
-
Spacing Criteria: 14 ft on center assuming 7.5 ft mounting height with egress path 3 ft out
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Environment: Suitable for use in dry and damp environments
-
IP Rating: IP20
-
Cold Weather Rated: No
-
Dual Voltage Circuit Operation: No
-
Certifications: UL924 Listed
-
FCC: Complies with Part 15 of the FCC Rules
-
California Title 20: Compliant - can be used to conform with requirements
-
California Title 24 JA8: No
-
CEC Status: Lawful for sales in California
-
Compatible Products: EREMOTE-RTS (Wall Mount Remote Test Button Switch)
-
Material: Thermoplastic
-
Voltage: 120 or 277
-
Total Wattage: 2W
-
SKU: ECOMBO34-RG
-
Family: RAB ECOMBO34 Exit Sign
-
Product Rating: Damp Rated
