RAB DESIGN LIGHTING VXCA

Product Description

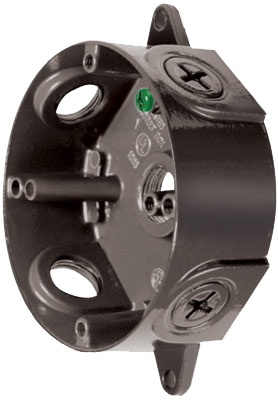

The RAB DESIGN LIGHTING VXCA is made from heavy die-cast aluminum, ensuring strength and durability. This product includes a pre-tapped hole that features a #10-24 green corrosion-protected steel slotted washer head ground screw. It comes with 10-24 stainless steel round head screws, compatible with both Phillips and slotted drivers. The box has a diameter of four inches and side holes with a half-inch thread size. The unit is UL Listed, making it suitable for wet locations. Note that when using fixtures that exceed twenty pounds, an XC cover plate should be used instead of a C103.

• Features stainless steel screws for corrosion resistance.
• Equipped with a green hex slotted washer head ground screw in a pre-tapped hole.
• Constructed with heavy die-cast aluminum for durability.

Product Highlights

The RAB DESIGN LIGHTING VXCA is ideal for mounting frames and fixtures in various environments.

Product Information

Standard Information

• UL Listed: Suitable for wet locations
• Box Material: Precision die cast aluminum

Technical Specifications

• Screws: 10-24 Stainless steel Round Head Phillips/slotted
• Ground Screw: #10-24 green corrosion-protected steel slotted washer head screw in pre-tapped hole
• Box Diameter: 4 inches
• Side Hole Thread Size: 1/2 inch
• Weight Capacity: For fixtures over 20 lbs, use an XC cover plate instead of a C103
