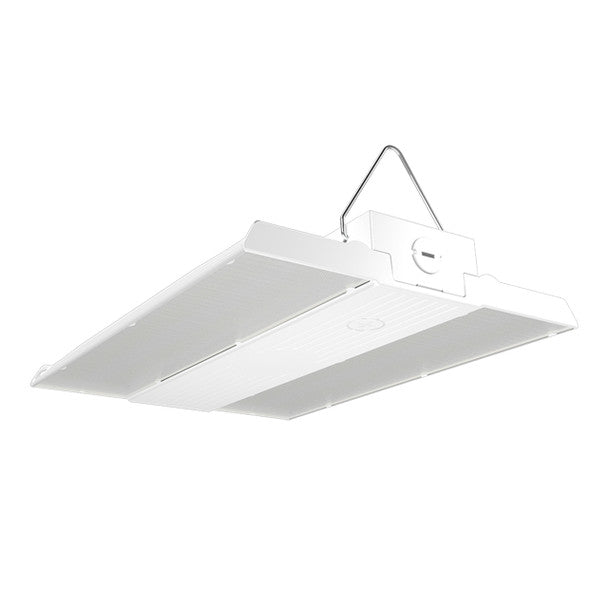

RAB DESIGN LIGHTING RBAY17S LED Linear High Bay 80/100/130W

Product Description

The RAB DESIGN LIGHTING RBAY17S is an LED linear high bay suitable for damp environments. It runs on an input voltage of one hundred twenty to two hundred seventy-seven volts. This light provides adjustable wattage options of eighty watts, one hundred watts, and one hundred thirty watts. The lumen output varies from twelve thousand seven hundred fifty-eight to twenty thousand three hundred fifty lumens, with an efficacy ranging from one hundred thirty-nine to one hundred sixty-seven lumens per watt. The RBAY17S allows users to select color temperatures at three options: three thousand five hundred Kelvin, four thousand Kelvin, or five thousand Kelvin. The model includes features like zero to ten volt dimming and comes with V-hooks and chains for easy mounting. Built from die-cast aluminum and equipped with a polycarbonate lens, this high bay light has a remarkable lifespan of one hundred thousand hours. It is comparable to four-lamp T5HO, six-lamp T8 fluorescent, or four hundred watt metal halide lights.

• Field-adjustable wattage settings of 80W, 100W, and 130W
• Selectable color temperature options of 3500K, 4000K, and 5000K
• Includes V-hook and chain for efficient mounting

Product Highlights

This product is designed for high efficiency and long-lasting performance in damp locations.

Product Information

Standard Information

• Brand: RAB DESIGN LIGHTING
• MPN: RBAY17S

Technical Specifications

• Wattage: 80W / 100W / 130W
• Equivalent: 4-lamp T5HO / 6-lamp T8 / 400W Metal Halide
• Lumens: 12,758 - 20,350 lm
• Efficacy: 139 - 167 lumens/Watt
• Color Temperature: Field Adjustable 3500K / 4000K / 5000K
• Life Rating: 100,000 Hours
• CRI: 80+
• Voltage: 120V / 208V / 240V / 277V
• Mounting: V-Hook and Chains
• Housing Material: Aluminum
• Lifespan: 100,000-Hour LED lifespan
• Operating Temperature: -4°F to 122°F
• Dimmable: Yes, 0-10V
• Protection Ratings: IP20
• Weight: 5.6 lbs
