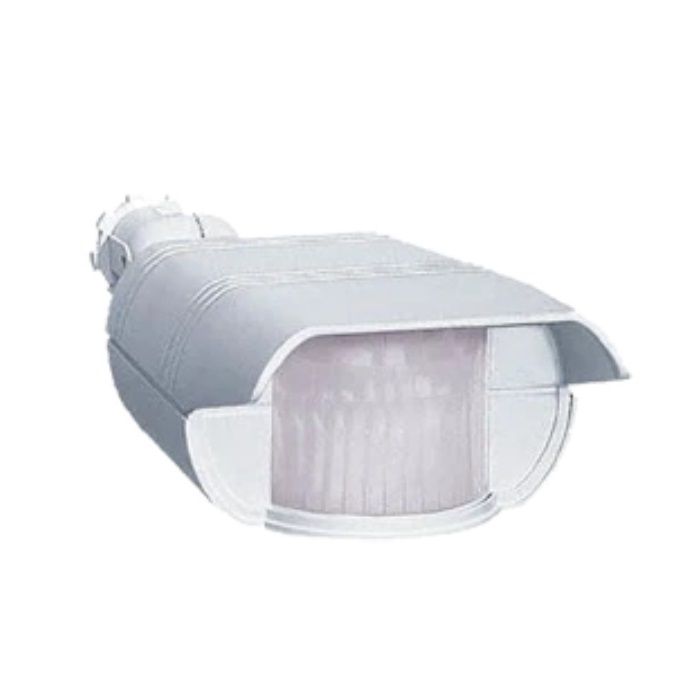

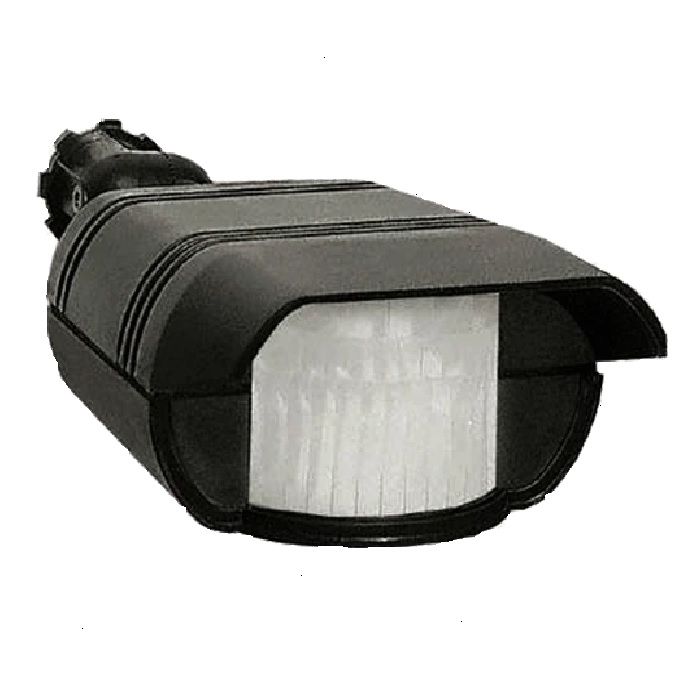

RAB DESIGN LIGHTING GT500W Motion Sensor 500 Watt

Product Description

The RAB DESIGN LIGHTING GT500W is a reliable motion sensor suited for outdoor wet locations. This sensor operates on both 120V and 277V AC at 60 Hz, consuming four watts of power. It features adjustable detection sensitivity, which can be set between fifty percent and one hundred percent. The sensor has a 110 degree detection view and is built with corrosion-resistant polycarbonate housing. Key features include surge protection up to six thousand volts and a manual override that automatically resets after six hours or at dawn. It supports a switching capacity of six hundred watts at 120VAC or one thousand three hundred fifty watts at 277VAC for electronic ballast, such as LED loads. The time adjustment spans from ten seconds to fifteen minutes.

• Includes six thousand volt surge protection.
• Manual override with auto reset function.
• Adjustable sensitivity from one hundred percent to fifty percent.

Product Highlights

Product Information

Standard Information

• Compliance: UL Listed suitable for wet locations
• Voltage: 120 or 277V AC 60 Hz

Technical Specifications

• Power Consumption: 4W
• Surge Protection: Withstands up to 6000 volts
• Switching Capacity: 600W @ 120VAC Electronic Ballast (LED), 1350W @ 277VAC Electronic Ballast (LED)
• Time Adjustment: 10 seconds to 15 minutes
• Detector Sensitivity: Adjustable from 100% to 50%
• Sensor Housing: Made of tough, corrosion-resistant polycarbonate
• Detection: 110 degree view
• Dimensions: 4 inches - 15.50 inches x 2.25 inches - 4.63 inches x 5 inches
