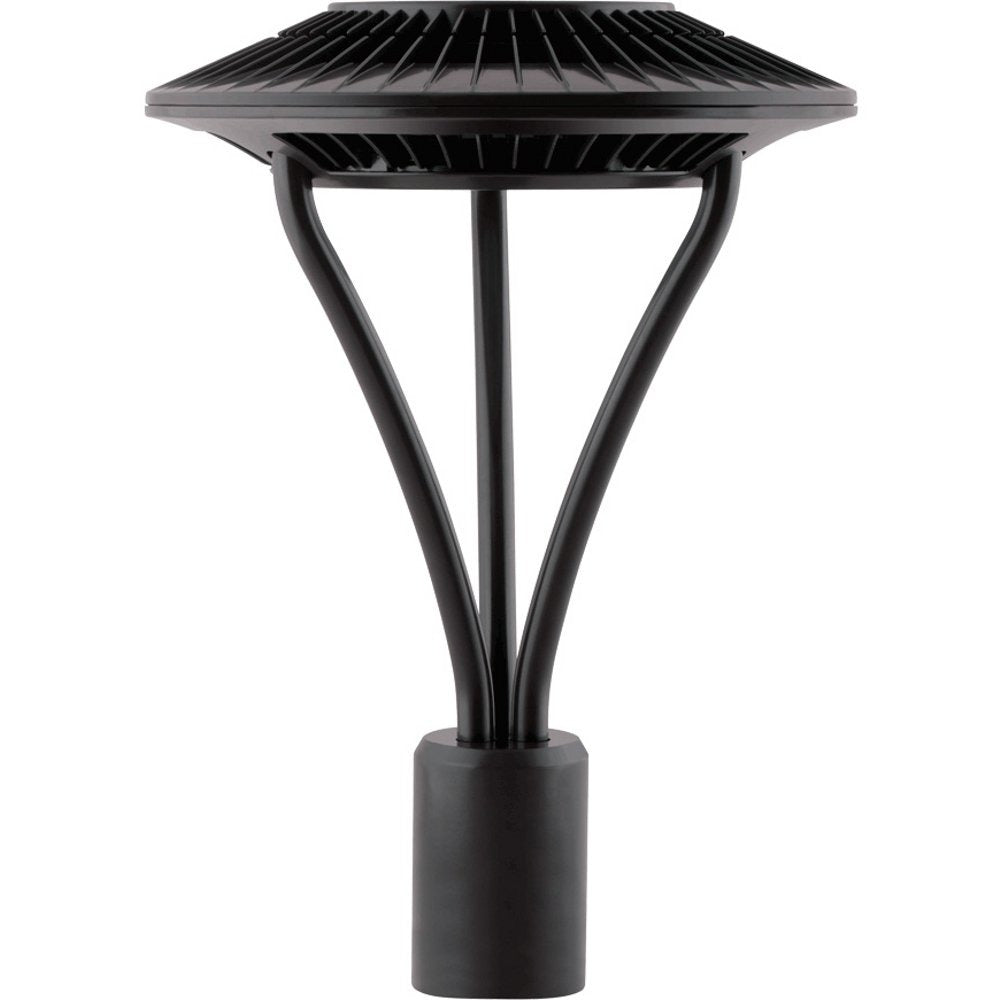

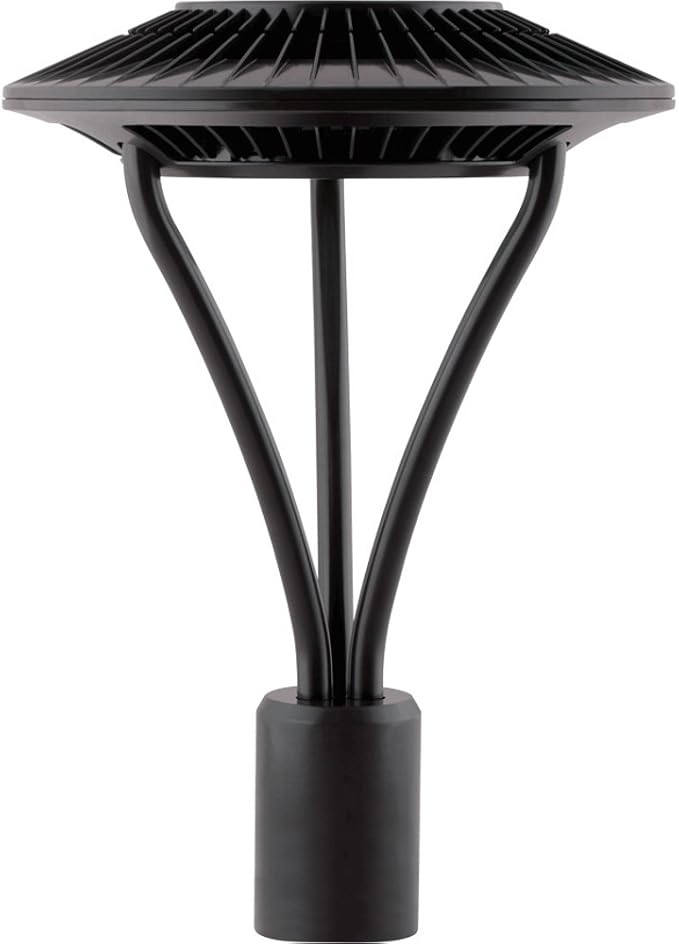

Rab ALED5T52 Led Area Light 52W 5000K Type V Bronze

Product Description

The RAB ALED5T52 is a 52-watt LED area light fixture in the ALED Series, designed for post-top mounting in commercial and site lighting applications. It operates across a wide voltage range of 120 to 277 volts and produces a 5000K cool white output through a clear lens with Type V circular distribution, delivering broad, even illumination across large horizontal surfaces. The housing is constructed from aluminum and finished in bronze. This fixture is specified and installed by licensed electricians on parking lots, roadways, plazas, and other open-area lighting projects.

The ALED5T52 is suited for outdoor area lighting where uniform, wide-spread light distribution is required. Its post-top mounting configuration makes it a direct fit for standard poles and site lighting infrastructure. The Type V distribution pattern is particularly effective for centrally placed poles covering large, open footprints such as parking fields, walkways, and commercial property perimeters. The 5000K color temperature delivers high visual clarity appropriate for security and general site illumination.

Key Features

• 52-watt LED light engine with 5000K cool white color temperature
• Type V circular distribution for broad, uniform area coverage
• Multi-voltage input: 120 to 277 volts
• Post-top mounting configuration for standard pole installation
• Clear lens for maximum light transmission
• Aluminum housing with bronze finish for corrosion resistance in outdoor environments

Compatibility

Designed as an OEM-style replacement or new-installation LED area light for post-top pole mounting in commercial outdoor lighting systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local ordinances. Disconnect and lock out all power to the pole and supply circuit before beginning any wiring or mounting work. Verify that the pole tenon or mounting adapter matches the fixture base before securing the fixture. Do not energize the fixture until all wiring connections are made and the fixture is fully secured to the mounting structure.
