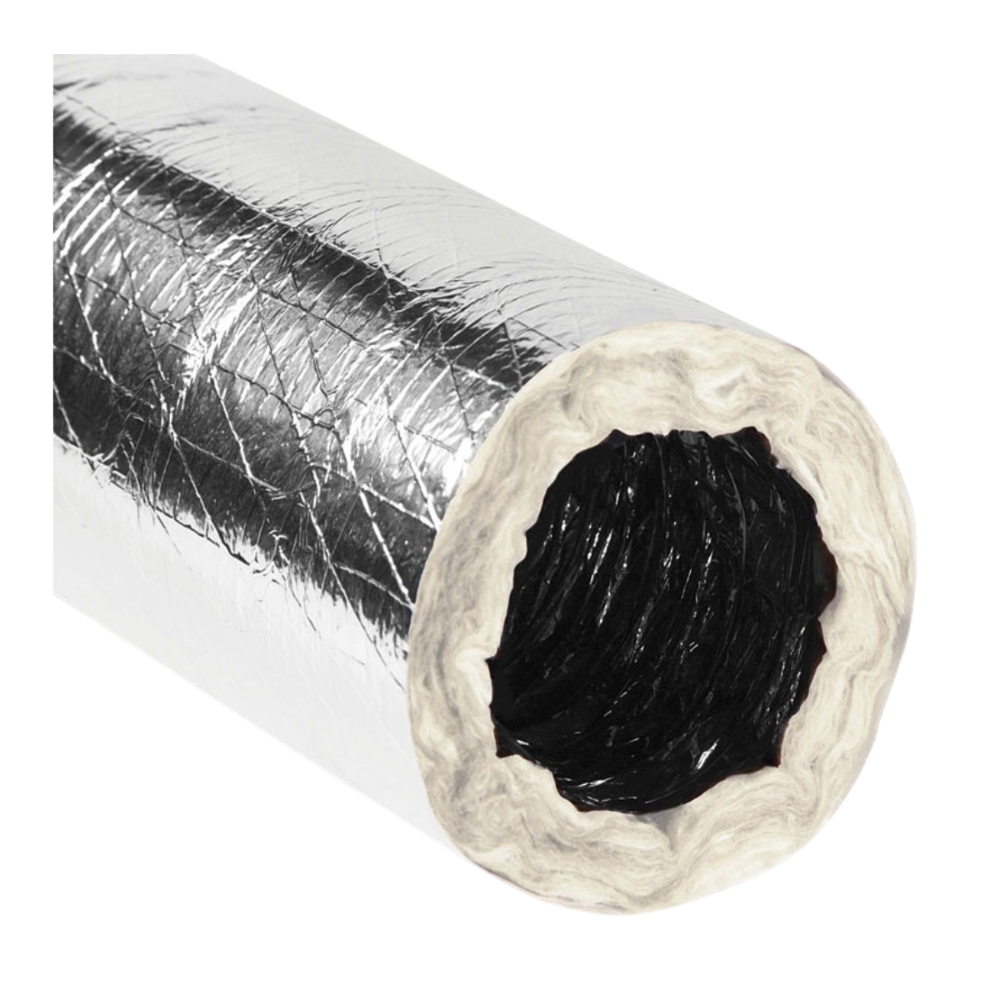

Quietflex 570C 5 inches x 25 feet Boxed R6 Rip Stop Flexible Foil Air Duct

Product Description

The Quietflex 570C Rip-Stop Silver Jacket Flex Duct features a metallic polyester-vapor barrier with a special ". Johns Manville Formaldehyde-Free Insulation Oversized Core R6.0 - Boxed C. tp + 10" Static Pressure. This insulated class 1 flexible duct has an inside diameter of 5 in and a length of 25 ft.

• Rip Stop Flex Duct
• Metallic polyester-vapor barrier with a special ".
• Johns Manville Formaldehyde-Free Insulation

Product Highlights

The Quietflex 570C is an insulated class 1 flexible duct with a 5 inch inside diameter and a length of 25 ft.

Product Information

Standard Information

• Brand: QUIETFLEX
• Manufacturer Part Number: 570C

Technical Specifications

• Type: Insulated Class 1
• Inside Diameter: 5 in
• Insulation Value: R6
• Length: 25 ft
• Domestic/Import: Domestic
• Flow Rate: 5000 fpm
• Material: Polyester/Metalized Polyester
• Pressure Rating: -3/4 to 12 in-WC
• Temperature Rating: -20 to 140 deg F
• Vapor Transmission: 0.04
