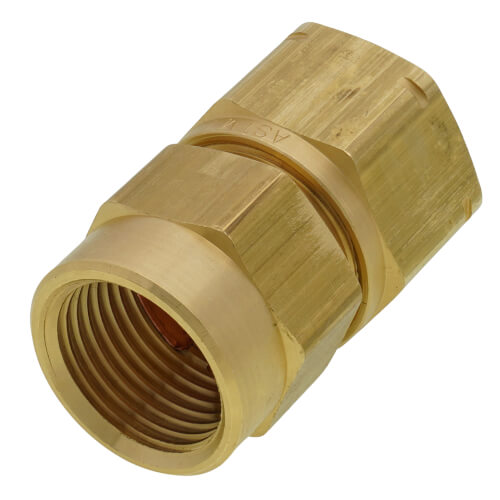

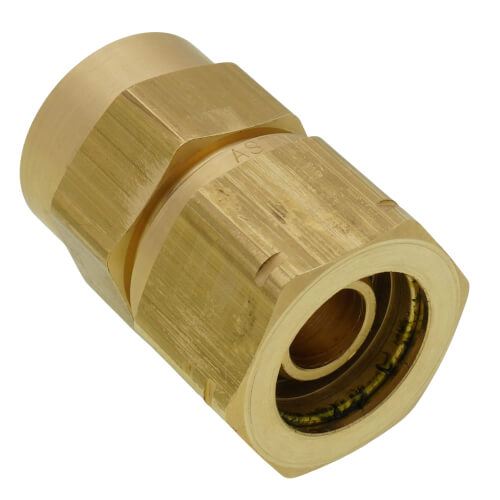

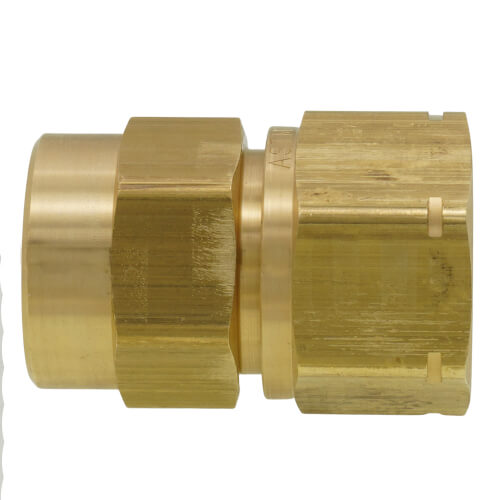

Python 6115 Female Compression Fitting Assembly 5/8

Product Description

The Python 6115 is a Female Compression Fitting Assembly designed for HVAC systems. This product features a solid brass construction and is suitable for various applications, including mini-split and heat pump systems. Its lightweight design makes it easy to handle compared to traditional copper fittings.

• Solid brass construction for durability
• Compatible for both residential and commercial HVAC applications
• Easy installation without the need for special tools

Product Highlights

This fitting is part of the Python PERT line set system, known for its resistance to chemicals and UV light, making it ideal for long-term use in various environments.

Product Information

Standard Information

• Brand: Python
• Manufacturer: Gastite Products Division

Technical Specifications

• Product Type: Female Compression Fitting Assembly
• Fitting Size: 5/8 inch
• Material: Brass
• Maximum Design Pressure: 700 psi
• Maximum Design Temperature: 203 °F
• Compatible Refrigerants: R410A, R32, R454B
• Pipe Sizes Available: 1/4, 3/8, 1/2, 5/8, 3/4, 7/8 inches
• Insulation: Non-porous, fiber-free closed-cell insulation
