Pt Coupling 84640050 ptcn series combination nipple 1/2 inches hose shank x npt male

Product Description

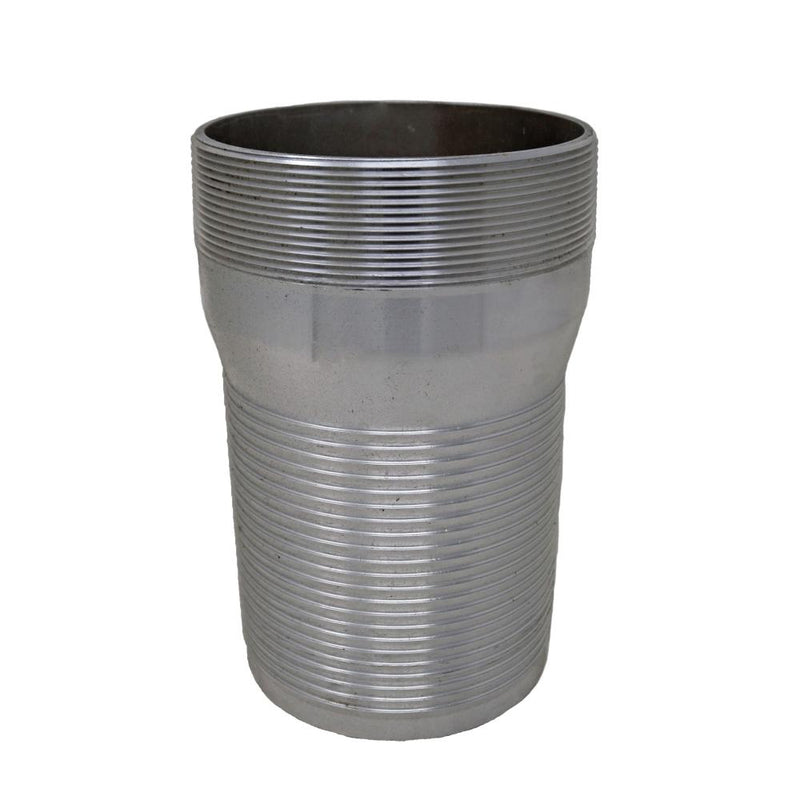

The PT Coupling 84640050 PTCN series combination nipple is made of type 316 stainless steel and connects hose to threaded pipe conforming to the National Pipe Thread (NPT) standard for low-pressure discharge or suction service. This adapter has a barbed fitting on one end and a male NPT connector on the other end.

• Adapter for connecting pipes or fittings of different types
• Fitting connects to hose on one end and has an NPT male connector on the other
• Type 316 stainless steel for higher strength and greater corrosion resistance than type 304 stainless steel

Product Highlights

The barbed fitting creates a tight seal on flexible and semi-rigid hose. Ideal for use with salt water, waste water, hydraulic oil, coolants, gasoline, and petroleum products.

Product Information

Standard Information

• Brand: PT COUPLING
• Manufacturer Part Number: 84640050

Technical Specifications

• Brand: PT Coupling
• Material: Stainless Steel
• Connection Type: 1/2" Hose Shank x NPT Male
• Series: PTCN
• MODEL: 84640050
• Connection Size 1: 1/2 Inch
• Connection Size 2: 1/2 Inch
• Connection Type 1: Hose Shank
• Connection Type 2: MNPT
• Nominal Size: 1/2 In
• Shape (Orientation): Straight
• Ends Configuration: 1/2in Hose Barb, 1/2in Male NPT
