Pt Coupling 1400415 Basic Standard Series D-Coupler 1-1/2 inches Coupler x NPT Female

Product Description

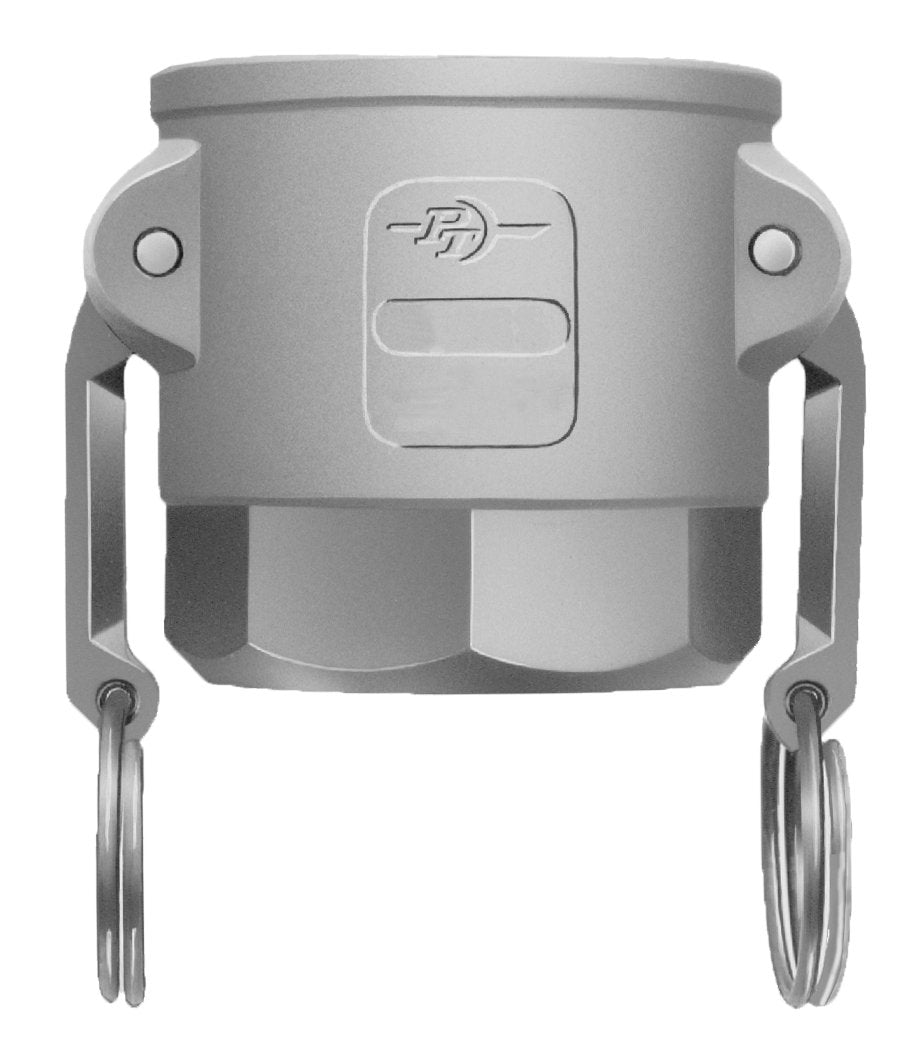

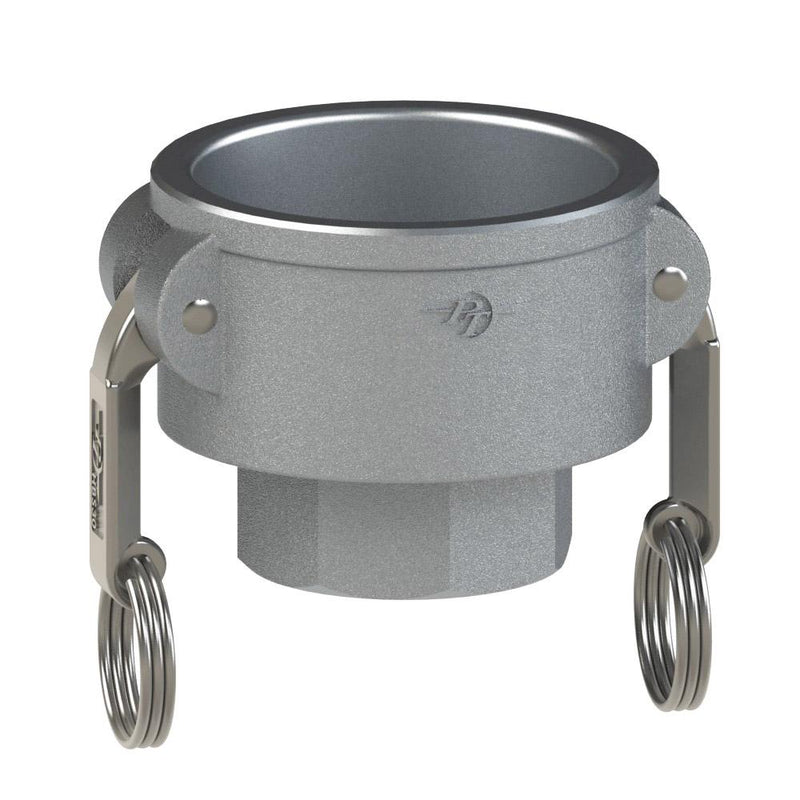

The PT COUPLING 1400415 Type D coupler features a stainless steel body with stainless steel cam arms, a buna-n gasket, and a female National Pipe Taper (NPT) threaded connection for adapting NPT thread to a female cam and groove-style fitting. It complies with Commercial Item Description A-A-59326D for quick disconnect fittings.

• Cam-locking female coupler with gasket provides leak-tight connection to male cam and groove-style fitting
• Female NPT threaded connection
• 316 stainless steel body for strength and resistance to corrosion

Product Highlights

This coupler is suitable for use with salt water, waste water, chemicals, hydraulic oil, and coolants and is used in applications such as fuel delivery, wine transfer, and chemical transfer.

Product Information

Standard Information

• Brand: PT COUPLING
• Manufacturer Part Number: 1400415
• Country of Origin: US

Technical Specifications

• Fitting Type: D-Coupler
• Connection: 1-1/2" Coupler x NPT Female
• Material: 316 Stainless Steel
• Gasket: Buna-N (Buna Nitrile)
• Compliance: Commercial Item Description A-A-59326D
• Application: Fuel delivery, wine transfer, and chemical transfer
• Brand: PT Coupling Company
• MPN: 1400415
• Product: Part D
• Model: 15D
• Size: 1-1/2"
• Shape (Orientation): Straight
• Cam Type: Type D
• Ends Configuration: 1-1/2in Female Cam & Groove, 1-1/2in Female NPT
• Material(s): 316 Stainless Steel
• Seal Material(s): Buna-N/Nitrile
• Type: Type D
• Fitting/Connector Type: Coupler
• Nominal Size: 1-1/2 in
• End Style: Female Coupler x Female Thread
