Proto JSCVMT-13S Full Polish 12-Point Reverse Ratchet Wrench 13-Piece Set

Product Description

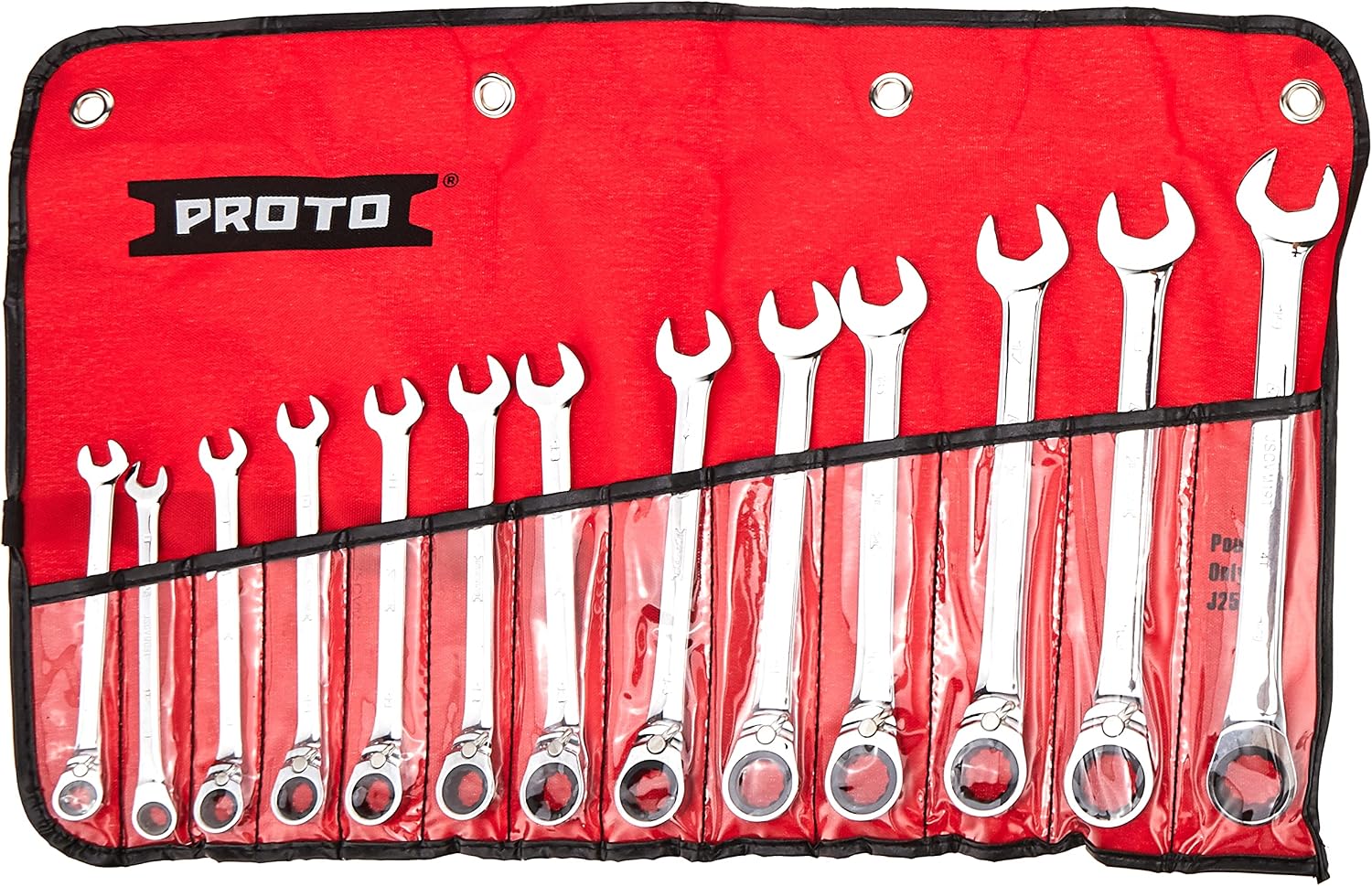

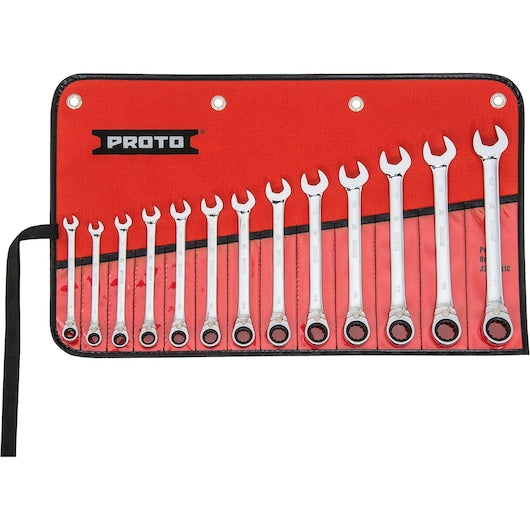

The Proto JSCVMT-13S is a 13-piece metric combination reversible ratchet wrench set with 12-point box-end heads and a reverse ratchet mechanism. The set is designed for metric fasteners and features a polished finish with blended material construction. Individual wrench dimensions are listed as approximately 6.25 x 0.82 x 0.51 inches. The set provides combination open ends plus ratcheting box ends for faster fastening in maintenance and repair tasks.

• 13-piece metric combo set with 12-point box-end heads and reverse ratchet mechanism (reversible ratcheting)
• Polished finish and blended material construction; combination open end plus ratcheting box end for each size
• Includes metric sizes 7 mm–19 mm, tool roll accessory, 15° head offset and spline box ends with fine 72-tooth indexing

Product Highlights

13-piece metric reversible ratcheting wrench set with 12-point spline box ends, polished finish, and metric sizes 7 mm–19 mm

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: JSCVMT-13S
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Brand: Proto
• MPN: JSCVMT-13S
• Manufacturer: Stanley Proto
• Model Number: JSCVMT-13S
• Number of Pieces: 13
• Measurement System: Metric
• Included Sizes: 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 17 mm, 18 mm, 19 mm
• Included Components: 13 pc Metric Combo Reversible Ratchet Wrench Set - 12 Point
• Finish: Polished
• Material: Blend
• Head Type: Box End
• Box End Type: Spline Box End
• Number of Points: 12
• Ratcheting: Yes
• Reversing: Yes
• Operation Mode: Mechanical (reverse ratchet mechanism)
• Head Offset Angle: 15 Degrees
• Opening Angle (Min Arc Swing): 5 Degrees
• Number of Geared Teeth: 72
• Range of Lengths: 5.5 in to 9.75 in
• Head Thickness: 0.125 in to 0.25 in
• Product Dimensions: 6.25 x 0.82 x 0.51 inches

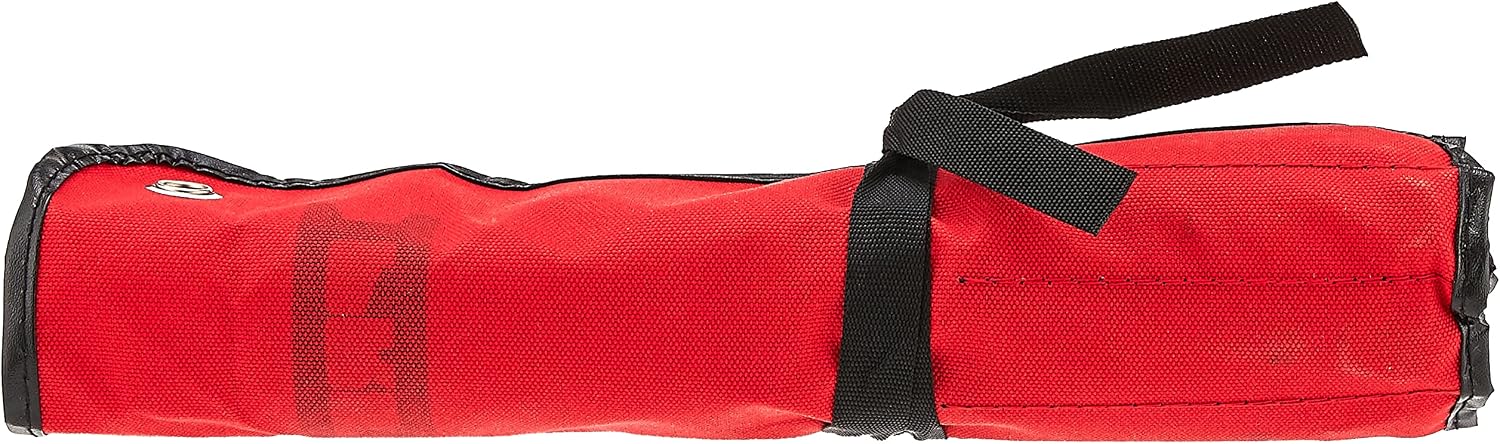

• Accessories: Tool Roll
• Tether Capable: Yes
• Corrosion Resistant: Yes
• Standards: ASME B107.100-2010
• Country of Origin: Taiwan, Province of China
• Container Type: Tool Roll
