Proto J94030 Full Threaded Shoulder Pattern Eye Bolt, Imperial, 1-1/8-7

Product Description

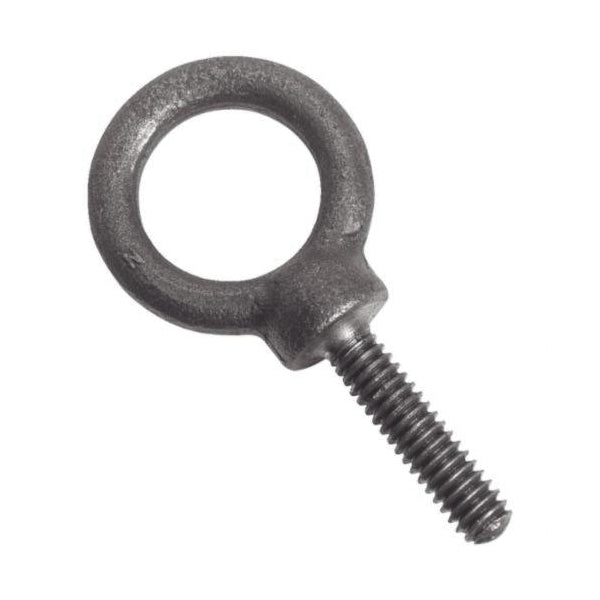

Proto Eye Bolt, MPN STAPR-J94030, is a full threaded shoulder pattern eye bolt made from forged steel. It has a thread size of one and one-eighth inches by seven threads per inch. This eye bolt features a shank length of two and three-quarters inches and an overall length of seven and three-quarters inches. The inside diameter of the eye ranges from one and ninety-four hundredths inches to two and six hundredths inches, while the outside diameter is four and six hundredths inches.

• Maximum working load capacity of twelve thousand pounds
• UNC-2A thread type for secure fastening
• Material specification meets ASME B18.15 standards

Product Highlights

This eye bolt is ideal for lifting applications where strength and reliability are critical. It is constructed to provide secure fastening in various industrial settings.

Product Information

Standard Information

• Brand: Proto
• MPN: STAPR-J94030

Technical Specifications

• Inside Eye Diameter: 1.94 to 2.06 in
• Outside Eye Diameter: 4.06 in
• Overall Length: 7-3/4 in
• Shank Length: 2-3/4 in
• Thread Length: 2-3/4 in
• Thread Type: UNC-2A
• Working Load: 12000 lb
• Measurement System: Imperial
• Diameter - Thread Size: 1-1/8-7
• Material: Forged Steel
• Type: Full Threaded Shoulder Pattern
• Finish: Plain
