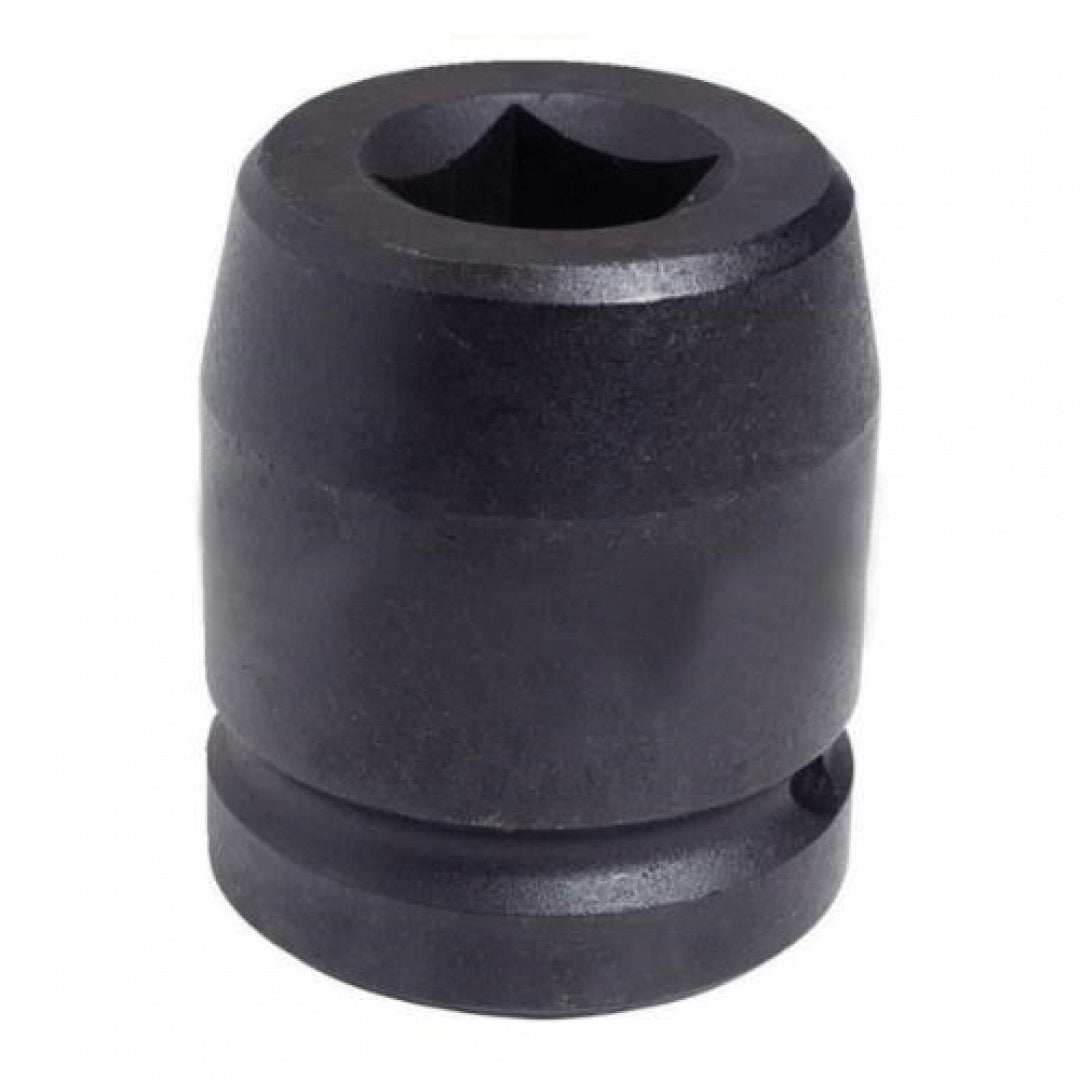

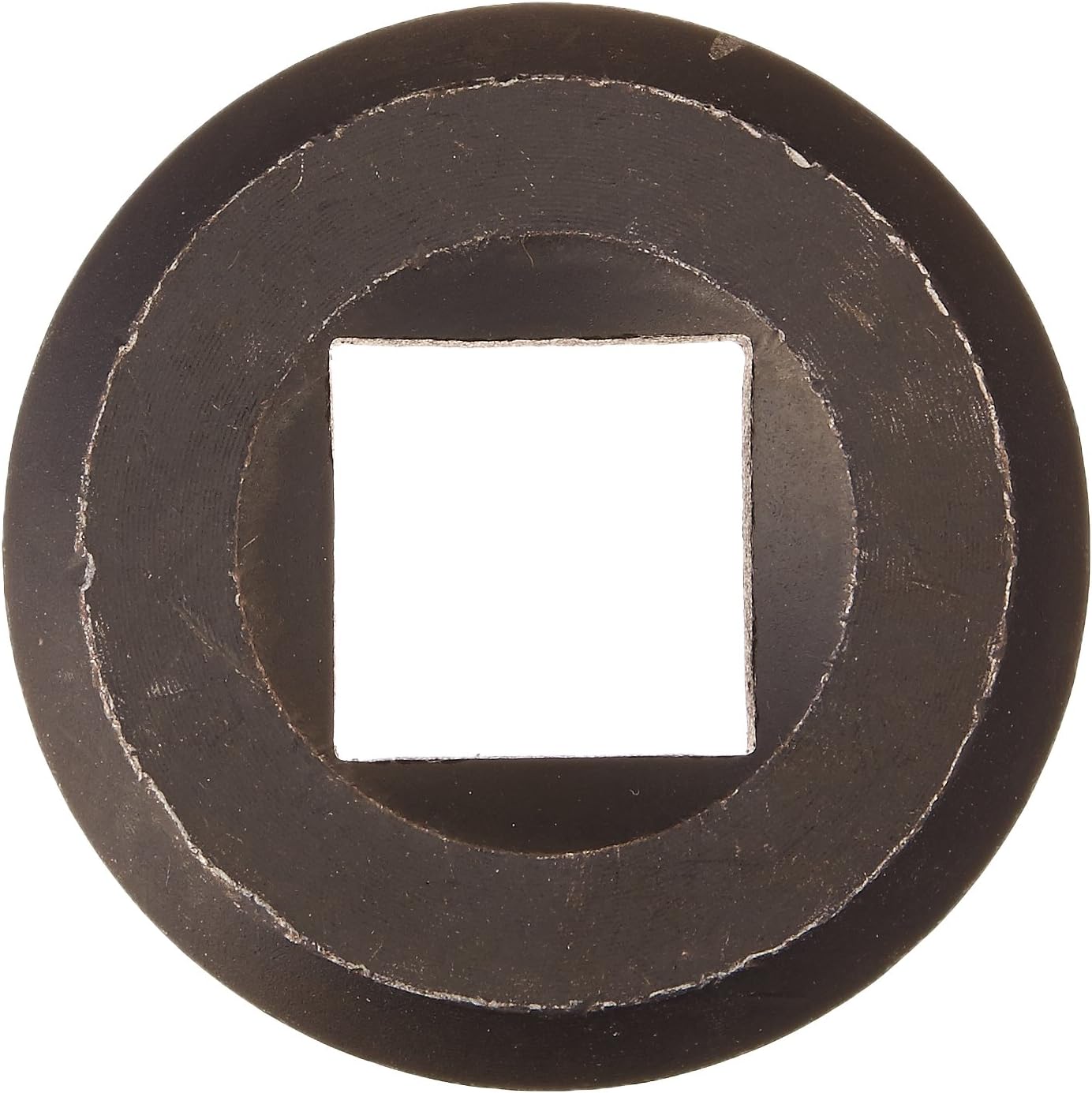

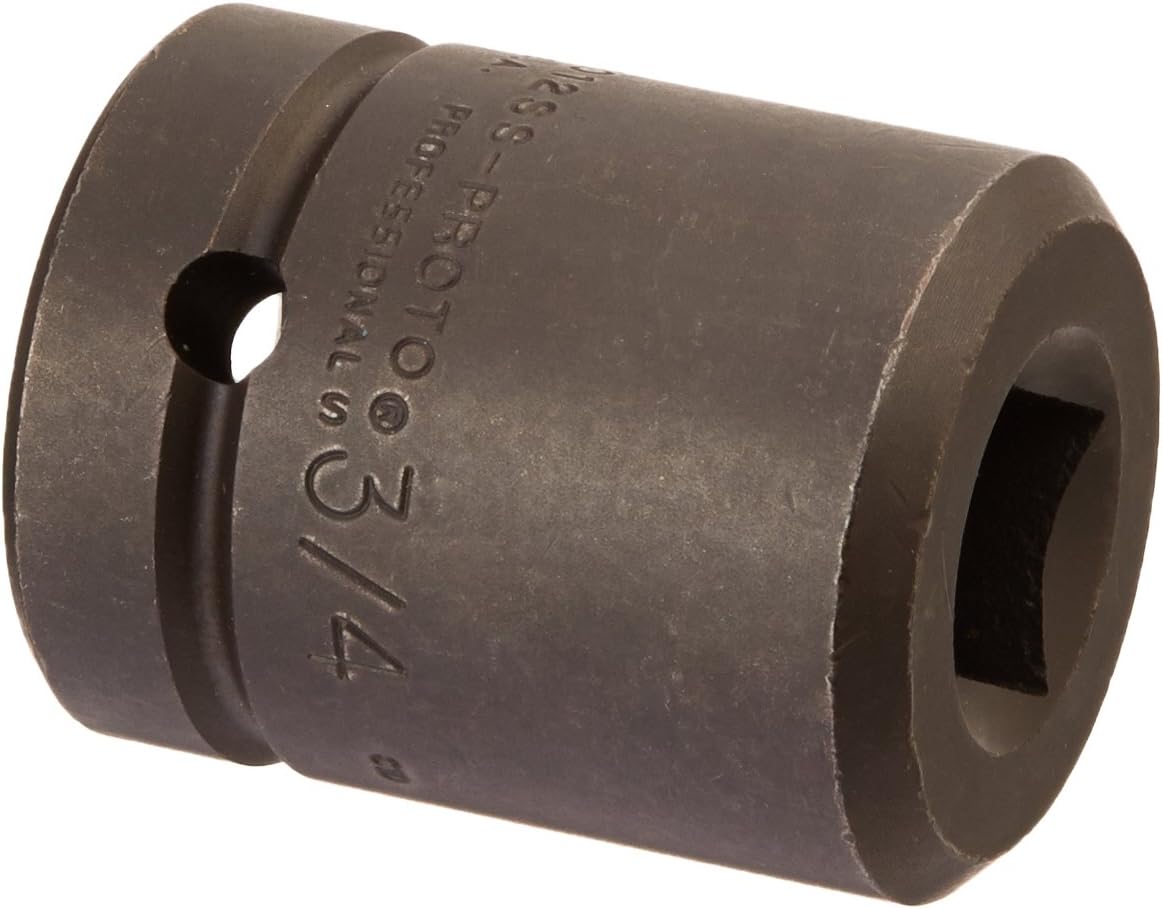

Proto J10012ss Impact Socket, 1 in Dr, 3/4 in, 4 pt

Product Description

The PROTO J10012SS is an impact socket with a 1-inch drive, a 3/4 inch opening, and a 4-point design. Constructed from forged alloy steel with a black oxide finish, it's designed for use with impact tools. The socket features chamfered service ends, concentric openings, and large clearance holes. It measures 2 1/2 inches in overall length.

• Features chamfered service ends for easy engagement
• Designed with concentric openings and large clearance holes
• Constructed from heat-treated, forged alloy steel

Product Highlights

This impact socket is suitable for installing or removing fasteners with impact tools, designed to withstand high torque and force.

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: J10012SS
• Country of Origin: US

Technical Specifications

• Finish: Black Oxide
• Material: Forged Alloy Steel
• Number of Pieces: 1
• Compatible Fastener Range: 0.75 inches
• Item Model Number: J10012SS
• Part Number: J10012SS
• Drive Size [Nom]: 1 in
• Drive Type: Square
• Head Width [Nom]: 1 7/8 in (opening side); 2 1/8 in (drive side)
• Locking Type: Pin
• Measuring System: Inch
• No. of Points: 4
• Opening Size [Nom]: 3/4 in
• Overall Length [Nom]: 2 1/2 in
• Tip Type: Box
• Nut End Outside Diameter [Imperial]: 1-7/8 in
• Drive End Outside Diameter [Imperial]: 2-1/8 in
• Nut Depth [Imperial]: 5/8 in
• Bolt Clearance Depth [Imperial]: 1-3/8 in
• Overall Length [Imperial]: 2-1/2 in
• Product Weight [Imperial]: 1.57 lbs
• Crush Retaining Ring: JRR10028
• O-Ring: J10000R1
• Measurement Type: SAE
• Socket Shape: 4-Point
• Socket Size: 3/4
• Socket Depth: Standard
• Tether Ready: Not Tether Capable
• Impact Rated: Impact Rated
• Standards: ASME B107.2
• Manufacturer Part Number: J10012SS
• Drive Size: 1 in
• UNSPSC: 27111704
• Socket Points: 4 PT
• Shaft Style: Standard Straight
• Socket Type: Standard
