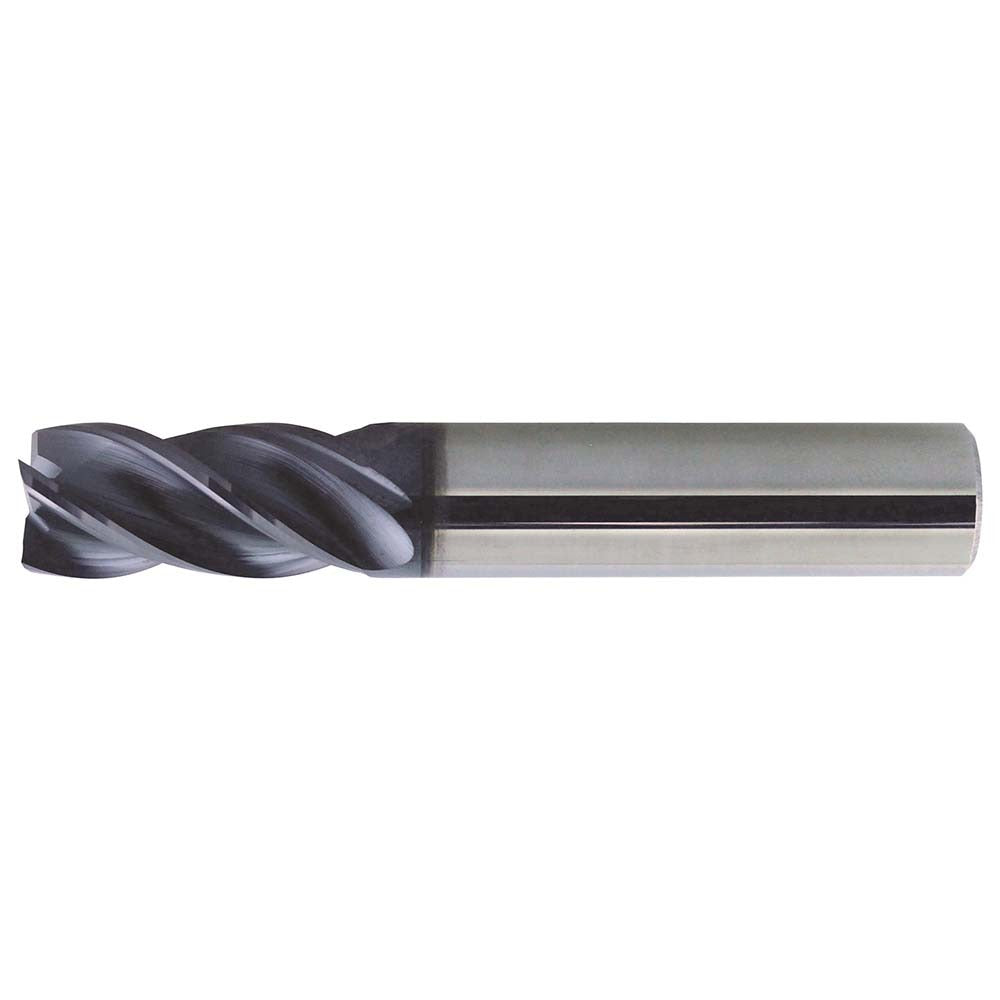

Promax US007232 Square End Mill 3/4 in 4 Flute Carbide

Product Description

The PROMAX US007232 is a solid carbide square end mill engineered for high-performance milling in demanding machining environments. With a 3/4 inch mill diameter and a 2-1/4 inch length of cut, it delivers aggressive material removal with controlled chip evacuation across a full range of ferrous and non-ferrous workpiece materials. The 4-flute, variable helix design (35/38 degrees) reduces harmonic vibration and chatter during cutting, making it well-suited for high-speed and high-feed applications. A PowerLayer coating further extends tool life by improving wear resistance and reducing heat buildup at the cutting edge. Overall length is 5 inches with a 3/4 inch straight cylindrical shank.

This end mill is designed for use in CNC machining centers and manual milling machines where precision peripheral and slot milling are required. It is a single-end, centercutting tool, meaning it can be plunged directly into material as well as used for conventional side milling passes. The right-hand cutting and right-hand flute direction make it compatible with standard spindle configurations. It suits general shop work, production milling, and toolroom applications across aerospace, die and mold, and general manufacturing industries.

Key Features

• Variable helix angle (35/38 degrees) reduces vibration and chatter for improved surface finish
• Variable index flute spacing further minimizes resonance during high-feed passes
• Solid micrograin carbide construction provides rigidity and wear resistance
• PowerLayer coating extends tool life and reduces cutting friction
• Centercutting geometry allows direct plunge entry into the workpiece
• Right-hand cut, right-hand spiral flutes for compatibility with standard machine spindles

Compatibility

Designed as an OEM-style replacement and standard tooling option for CNC machining centers and knee mills accepting a 3/4 inch straight cylindrical shank. Part of the PROMAX US007 Series.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully powered down and locked out before changing tooling. The straight cylindrical shank requires a properly sized collet or end mill holder torqued to the machine manufacturer's specification. Verify runout with a dial indicator after tool installation and before initiating any cutting cycle.
