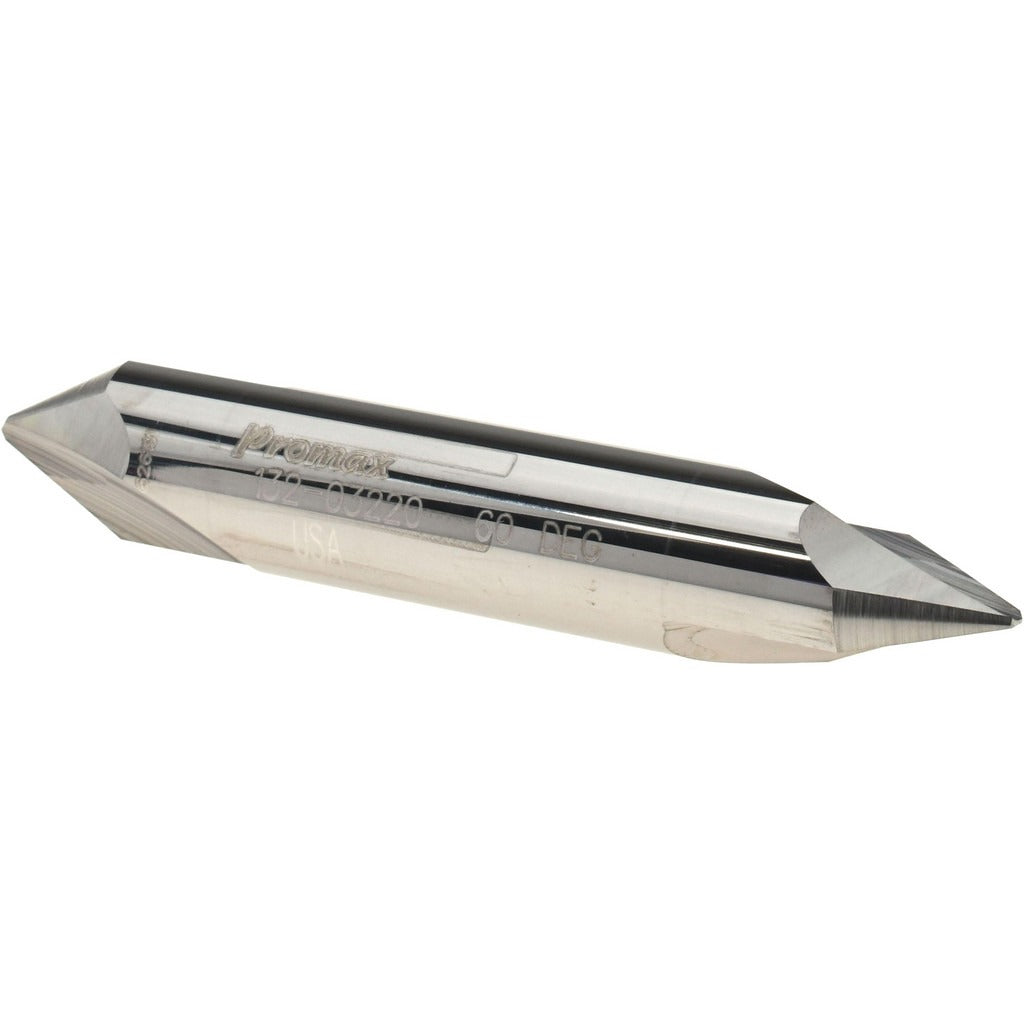

Promax 132-03220 Chamfer Mill 0.5 in 2 Flute Solid Carbide

Product Description

The PROMAX 132-03220 is a solid carbide chamfer mill designed for chamfering, countersinking, and spotting operations on CNC machining centers and manual mills. The cutter head measures 0.5 inches in diameter with a 0.5-inch shank diameter and an overall length of 3 inches. It features a double-end configuration, 2 flutes, a 60-degree included angle, and a bright uncoated finish. This tool is suited for machinists and toolroom operators working in production or job-shop environments where precise edge preparation is required.

The 132-03220 is appropriate for chamfering and spotting operations across a range of materials where a solid carbide tool provides the rigidity and edge retention needed for consistent results. Its double-end design extends tool life by providing two usable cutting ends. The 60-degree included angle makes it well suited for standard chamfer and spot-drill work on ferrous and non-ferrous workpieces. Right-hand cutting direction is standard for conventional spindle setups.

Key Features

• Solid carbide construction for rigidity and edge retention
• Double-end design provides two cutting ends for extended tool life
• 60-degree included angle for standard chamfer and spotting applications
• Bright uncoated finish suitable for general-purpose machining
• Right-hand cutting direction for conventional spindle use
• 0.5-inch shank diameter for standard collet and end mill holder compatibility

Compatibility

Designed as an OEM-style replacement or direct tooling addition for CNC machining centers and manual mills accepting a 0.5-inch shank diameter end mill or chamfer mill.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the spindle is fully stopped and the machine is locked out before changing tooling. Seat the shank fully in a collet or end mill holder and torque the retention mechanism according to the machine and toolholder manufacturer guidelines. Inspect the cutting edges for chips or damage before use.
