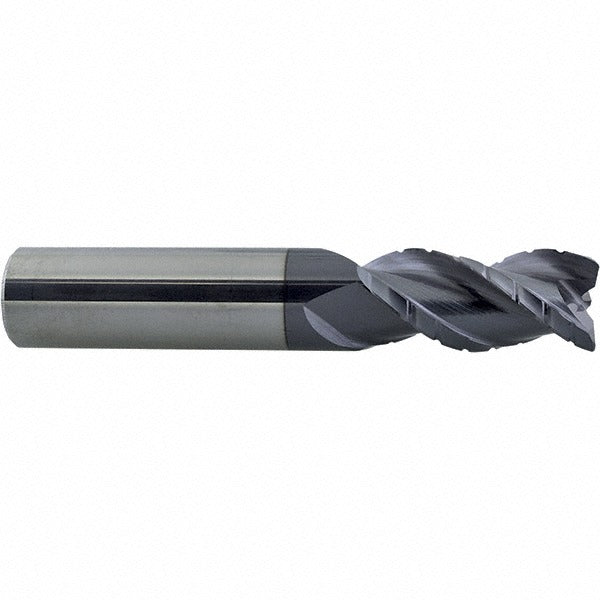

Promax 119-01624 Corner Radius End Mill 1/4 in 3 Flute

Product Description

The PROMAX 119-01624 is a solid carbide corner radius end mill designed for roughing and finishing operations in a single tool. It features a 1/4 inch cutting diameter with a 0.02 inch corner radius and three flutes arranged in a right-hand cutting direction. The 40-degree helix angle promotes efficient chip evacuation and reduced cutting forces. An AlTiN coating provides thermal resistance and extended tool life in ferrous and hardened materials. This end mill is center-cutting, allowing plunge entry, and is built from micrograin carbide for rigidity at high feeds and speeds.

This end mill is suited for milling slots, pockets, and contoured profiles in ferrous metals, stainless steel, and hardened alloys on CNC machining centers and manual mills. The corner radius geometry reduces stress concentration at the cutting edge, making it appropriate for finishing passes where a sharp inside corner is not required. The single-end, straight-cylindrical shank fits standard 1/4 inch collets and end mill holders.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance
• AlTiN coating for high-temperature performance in ferrous and hardened materials
• 0.02 inch corner radius reduces edge chipping and stress at the cutting edge
• 40-degree helix angle promotes chip flow and smooth cutting action
• Center-cutting geometry allows plunge milling
• Right-hand flute direction and right-hand cutting for standard spindle rotation

Compatibility

Designed for use with standard 1/4 inch collet chucks, end mill holders, and hydraulic or shrink-fit toolholders on CNC and manual milling machines. Part of the PROMAX Series 119 corner radius end mill line.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and the machine in a locked-out, tagged-out state. Ensure the shank is fully seated and the collet or holder is torqued to the toolholder manufacturer's specification. Verify runout with a dial indicator before production cuts. Do not exceed the tool's rated depth of cut or feed rate for the workpiece material.
