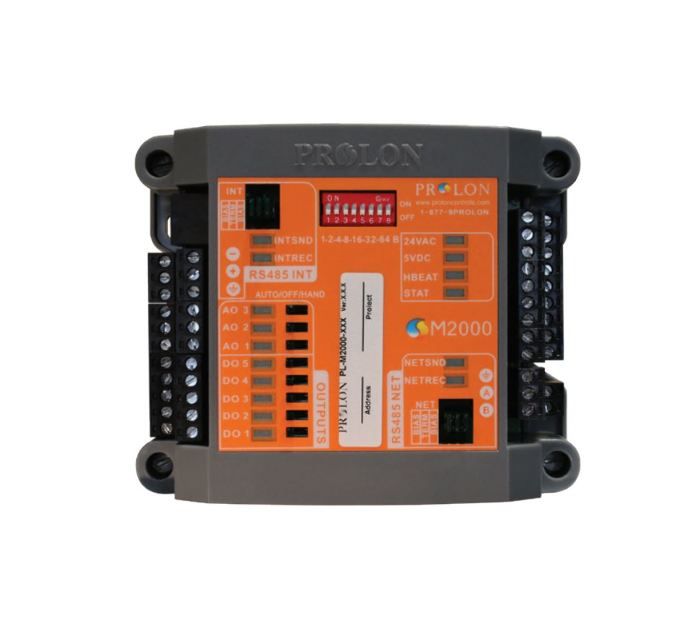

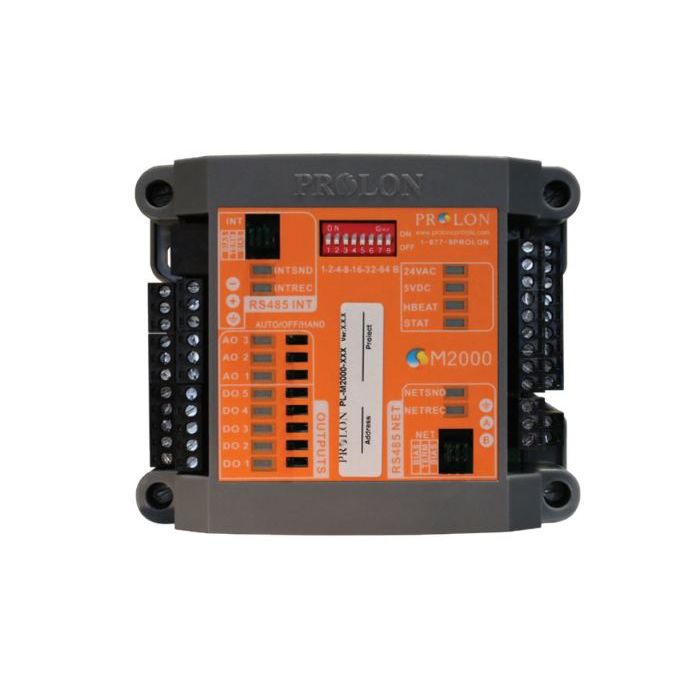

Prolon PL-M2000-FLX Flexible IO Controller, 17 IO

Product Description

The Prolon Flexible IO Controller, model PL-M2000-FLX, features a versatile interface for various input and output needs. This device is designed for general-purpose and configurable applications. It supports nine user inputs, five digital outputs, and three analog outputs, making it suitable for a wide range of control tasks.

• Offers hand/off/auto operation for reliable performance.
• Supports multiple input types such as temperature, humidity, and pressure.
• Integrates easily with Modbus RTU communication networks.

Product Highlights

The controller operates in standalone mode or can connect to a Prolon network. Its flexibility in configuring outputs allows it to maintain setpoints or adjust based on environmental data.

Product Information

Standard Information

• Brand: Prolon
• Part Number: PL-M2000-FLX

Technical Specifications

• IO Ports: 17
• Type: Configurable
• Communication Network: Modbus RTU
• Power Supply: 24 VAC
• Operating Conditions: 32 F to 122 F (0 C to 50 C)
• Mounting: Panel Mount
• Power Consumption: 5 VA
• Outputs: Configurable for various operational sequences including ON/OFF and PI Loop
