Progress Lighting ptork3010 Remote Photocontrol

Product Description

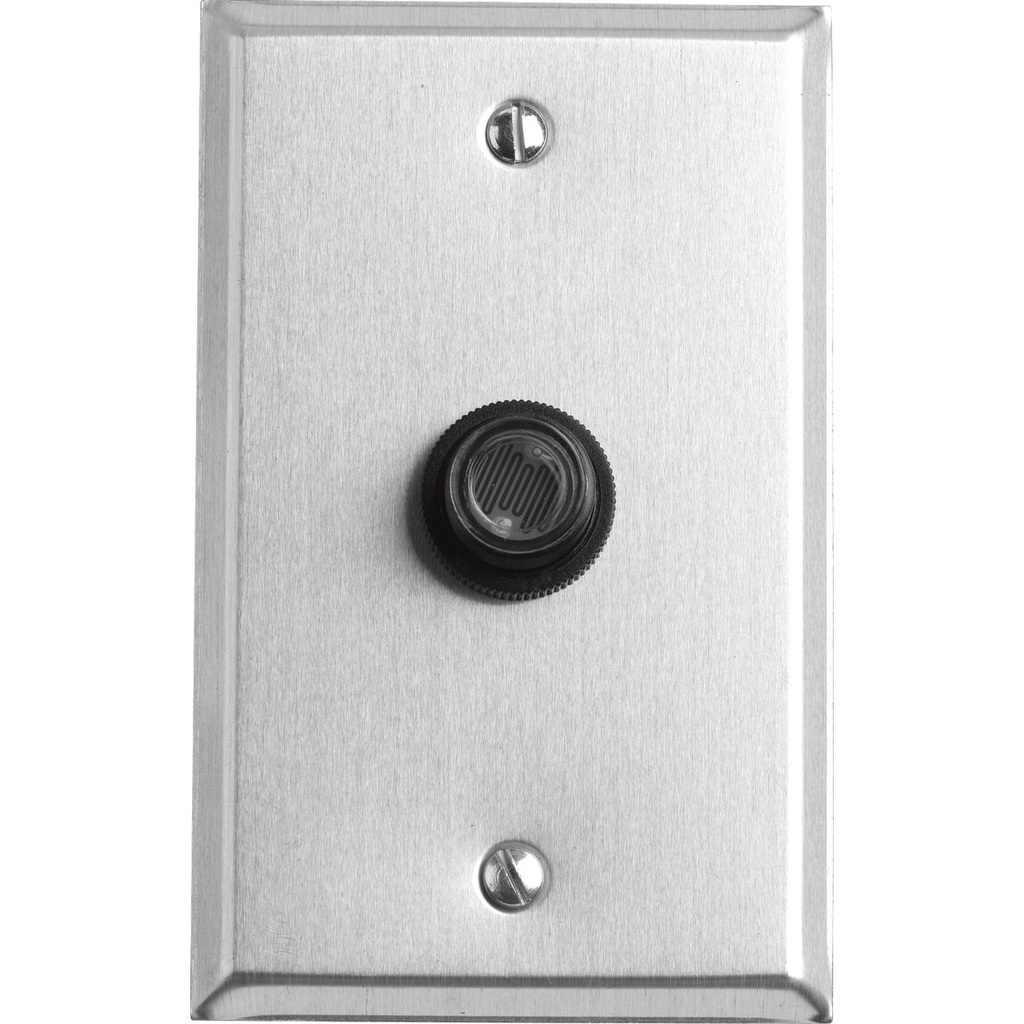

The PROGRESS LIGHTING ptork3010 is a hardwired remote photocell designed for outdoor lighting control applications. Operating at 120 volts, this wall-mounted photocontrol automatically senses ambient light levels and switches connected lighting circuits on at dusk and off at dawn. The unit is prewired for straightforward installation and mounts via a standard outlet box strap. Rated for dry locations and listed by cULus, it meets Title 20 and Title 24 energy efficiency requirements. At 0.210 pounds, the ptork3010 is a compact, utilitarian control device suited for residential and light commercial exterior lighting systems.

This photocontrol is intended for outdoor wall installations where automated dusk-to-dawn switching is required. Its grey unfinished housing blends into typical exterior wall surfaces. The unit ships individually and is appropriate for electricians handling outdoor lighting retrofits, new construction wiring, or energy-compliance upgrades where Title 20 or Title 24 compliance is needed. It is hardwired directly into the circuit and does not require a separate lamp or power source beyond the branch circuit connection.

Key Features

• Hardwired photocell with prewired leads for direct branch circuit connection
• Operates at 120 volts for compatibility with standard residential and light commercial circuits
• cULus listed for dry location outdoor use
• Compliant with Title 20 and Title 24 energy efficiency standards
• Mounts to standard outlet box using included strap hardware
• Compact form factor at 5.625 inches tall and 3 inches wide

Compatibility

Designed as an OEM-style replacement or new-installation photocontrol for standard 120-volt outdoor hardwired lighting circuits rated for dry location use.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Shut off power at the breaker before making any wiring connections. The device mounts to a standard outlet box using the provided strap; confirm the box is rated for exterior use before mounting. Do not install in wet or damp locations, as this unit is rated for dry locations only.

Technical Specifications

• Voltage Rating: 120 volts
• Mount Location: Wall
• Product Height: 5.625 inches
• Product Width: 3 inches
• Product Weight: 0.210 pounds
• Color: Grey
• Finish: Unfinished
• Power Source: Hardwired
• Mounting Hardware: Outlet box strap included
• Certifications: cULus Listed, Title 20, Title 24
• Location Rating: Dry Location
• Warranty: 1-year Limited
• Carton Quantity: 1

Standard Information

• Brand: PROGRESS LIGHTING
• Manufacturer Part Number: ptork3010
