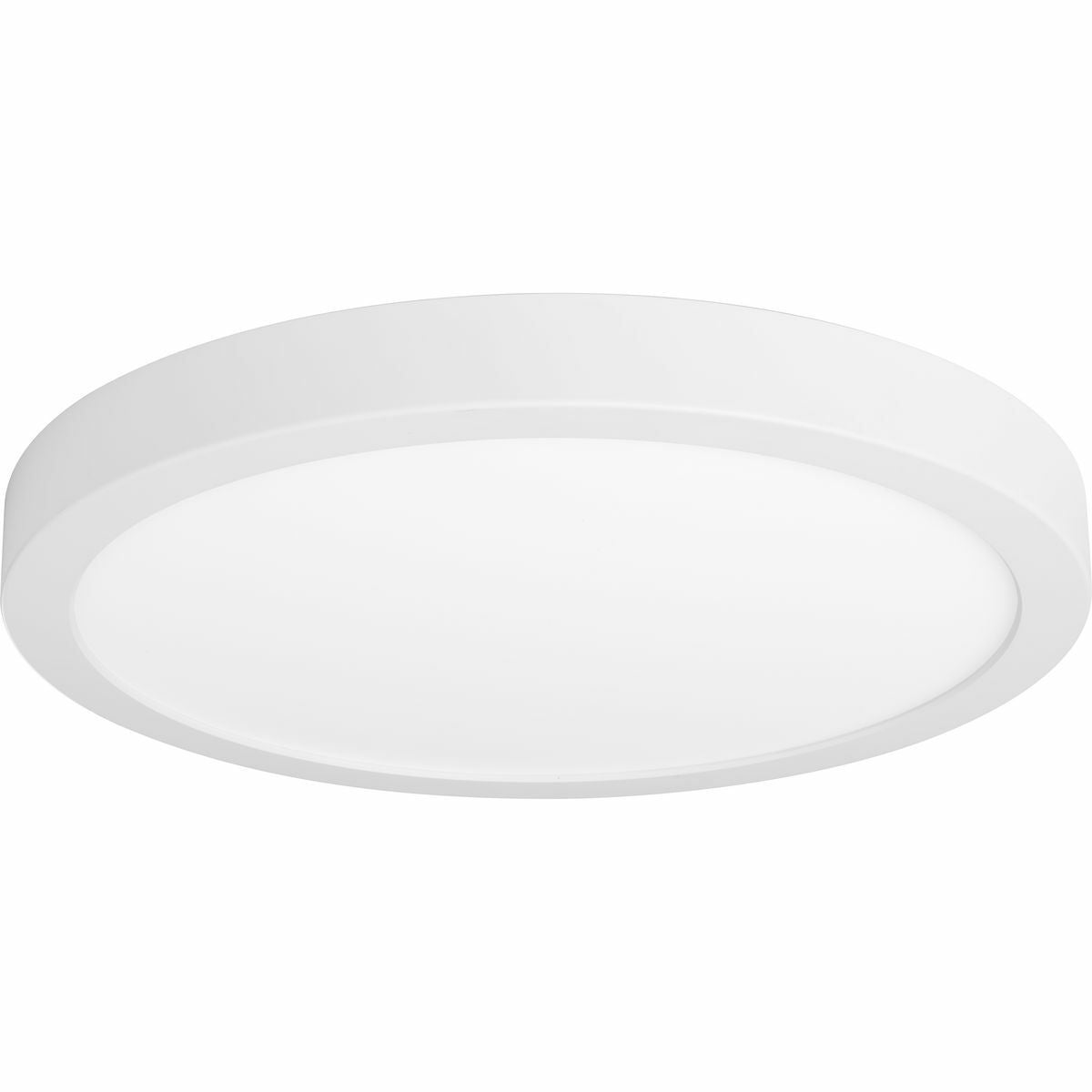

Progress Lighting P810016-030-30 Edgelit Flush Mount 17W

Product Description

The Progress Lighting P810016 Edgelit Flush Mount delivers a solution for both residential and commercial markets. Edgelit technology provides a bright and evenly illuminated surface in a slim profile. The surface mounted luminaire measures 11 inches in diameter with an overall height of 1.125 inches and is a cost effective solution for fire rated applications. The P810016 combines modern aesthetic, new technology, performance, cost and safety benefits.

• Light weight polycarbonate luminaire construction
• Polycarbonate diffuser controls glare and provides an evenly illuminated surface
• Simple installation to steel mounting plate

Product Highlights

This 17W LED flush mount is suitable for residential and commercial applications. It is Title 24 and ENERGY STAR listed and wet location rated.

Product Information

Standard Information

• Brand: PROGRESS LIGHTING
• Manufacturer Part Number: P810016-030-30
• Country of Origin: CN

Technical Specifications

• Catalog Number: P810016-030-30
• Brand: Progress Lighting
• Sub Brand: Progress LED
• Country of Origin: China
• Made in USA: No
• Finish: Painted
• Frequency Rating: 60 Hz
• Lamp Type: Integrated LED
• Light Technology: LED
• Material: Aluminum/Plastic
• Mounting: Surface
• Standard: FCC Part 15 Class B
• UPC: 785247225859
• GTIN: 00785247225859
• Item Type: Flush-Mount
• Length: 11.00"
• Width: 11.00"
• Height: 1.13"
• Voltage Rating: 120V
• Wattage: 17 W
• Fixture Type: Flush mount
• Light Source: LED
• Model#: P810016-030-30
• Brand Category: Edgelit Flush Mount
• Brand Product Description: Everlume Collection 11" Edgelit Surface Mount
• Color Rendering Index: 90
• Color Temperature: 3000K
• Lamping Category: LED
• Lamping Features: Lumens per Watt: 77
• Min Starting Temperature: -30 ?C
• Operating Temperature: 30?C
• Life (hours): 50000
• Energy Efficient: Yes
• Lamping Included: Bulbs Included
• Lamping Type: LED
• Lead Wire Length: 6.00
• Lumens: 1325 Lumens
• Primary Number of Bulbs: 1
• Total Number of Bulbs: 1
• Energy Star: Yes
• Prop 65: Yes
• Title 24: Yes
• UL Ratings: cCSAus Wet
• Features: Suitable for use in IC or Non-IC applications
• Dimming Protocol: Triac/Forward Phase or ELV/Reverse Phase
• Dimming Compatability: Lutron NTELV-300Lutron DVELV-300PLutron DVCL-253PLutron CasetaiDevices IDEV0009Leviton 6681Leviton 6672Lutron AYCL-153PLutron TGCL-153PHLutron NTLV-600Lutron MAELV-600Lutron AWRMG-EAW
• Glass Features: White Polycarbonate
• Wire: 6"
• Bulb Type: LED
• Bulb Base: Integrated
• Maximum Wattage: 17.00 W
• Light Output: 1325.00 lm
• Color Accuracy: 90 CRI
• Rated Average Life: 50000
• Shade: White
• Safety Rating: Wet
• Safety Listing: cCSAus
• Room: Closets,Pantry,Bedroom,Hall & Foyer,Kitchen
• Intro Date: 01/01/2019
• Dimmable: 120V
• Lamp / Base Type: Integrated LED
• Rated Hours: 50,000 Hours
• Min Operating Temp: -22 Degrees F
• CRI: 90+
• Special Features: Title 20 / 24 Compliant, Wet Location Rated
