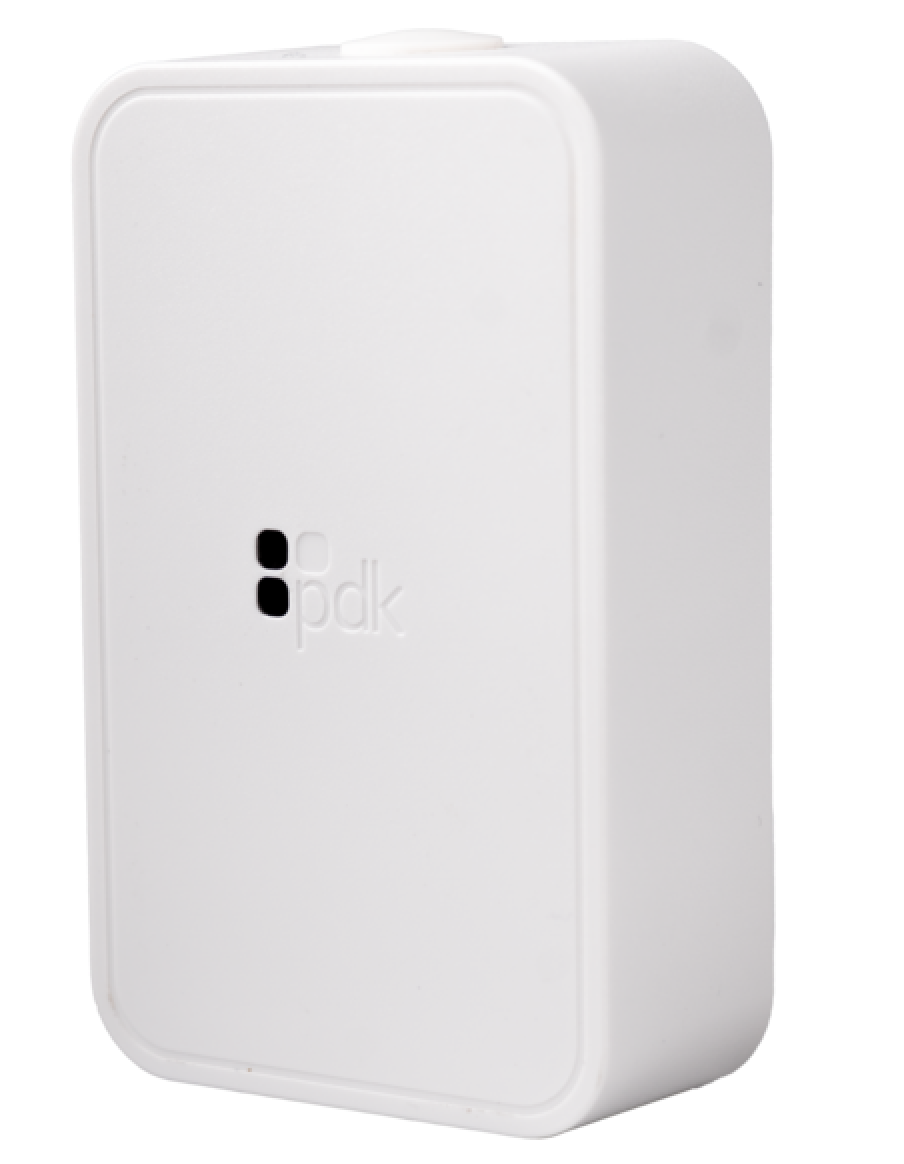

Prodatakey RHUB Hub 16 Wireless Locks to PDK.io

Product Description

ProdataKey RHUB is a hub that connects ProdataKey Red wireless locksets to PDK.io, providing a central communication point for up to 16 wireless locks. It links to the cloud node via Ethernet 10/100 Mbps and communicates with locks using Bluetooth Low Energy (2.4 GHz) with end-to-end AES 128-bit encryption. Intended for indoor use, it supports Power over Ethernet primary power with an optional 12–24 VDC auxiliary input and includes an external antenna.

• Supports up to 16 ProdataKey Red wireless locksets for centralized access control
• Ethernet 10/100 Mbps to cloud node; Bluetooth Low Energy (2.4 GHz) to locks with end-to-end AES 128-bit encryption
• Power over Ethernet (PoE) primary; optional 12–24 VDC auxiliary input; external antenna supplied

Product Highlights

Indoor PoE BLE hub for cloud-connected access control supporting up to 16 locks

Product Information

Standard Information

• Brand: PRODATAKEY
• Manufacturer Part Number: RHUB

Technical Specifications

• Brand: ProdataKey
• Manufacturer Part Number: RHUB
• ADI Part Number: JW-RHUB
• Supported Locks: Up to 16 ProdataKey Red wireless locksets
• Connectivity (Hub to Cloud Node): Ethernet 10/100 Mbps
• Connectivity (Hub to Lock): Bluetooth Low Energy (2.4 GHz)
• Encryption: End-to-end AES 128-bit
• Power - Primary: Power over Ethernet (PoE)
• Power - Auxiliary (optional): 12-24 VDC (2-pin connector, polarity sensitive)

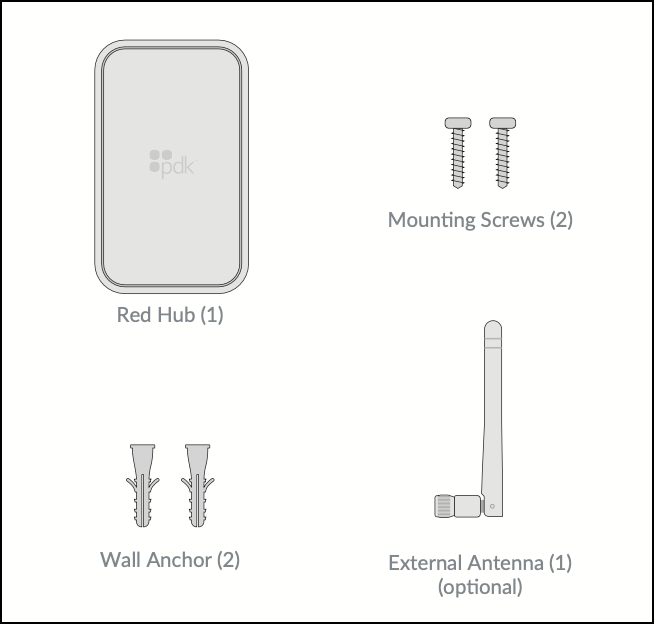

• Antenna: External antenna (supplied)
• Usage: Indoor use only
• Operating Temperature: -20°C to +45°C
• Relative Humidity: 10% - 90% (non-condensing)
• Dimensions (W x H x D): 4 in x 2.5 in x 1.5 in
• Compliance: Conforms to FCC Part 15; meets FCC and ISED RF exposure requirements (minimum 20 cm separation from people)
• UPC: 850038472290
