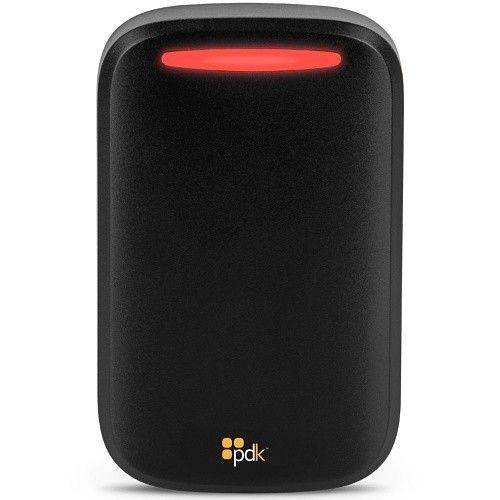

Prodatakey RGPBV2 Single-Gang High-Security Reader V2 (Pack 1)

Product Description

Prodatakey RGPBV2 is a single-gang high-security access control reader that supports multi-technology credentials and secure communications. The reader accepts Bluetooth LE mobile credentials, 13.56 MHz smart cards including MIFARE DESFire EV2/EV3, and 125 kHz proximity cards, and provides OSDP v2 or Wiegand interfaces. It features AES-128 encryption, IP65 weatherproofing, LED status indicators, and fits standard single-gang wall boxes for commercial installations.

• Multi-technology credential support: Bluetooth LE mobile, 13.56 MHz smart cards (MIFARE DESFire EV2/EV3), and 125 kHz proximity cards
• Secure communications: OSDP v2 and Wiegand interfaces with AES-128 encryption; LED indicators for access granted, denied, and tamper
• Environmental and installation: IP65 rating, operating temperature -31°F to 150°F (-35°C to 66°C), fits standard single-gang wall boxes; input voltage 5–24 VDC

Product Highlights

Single-gang, multi-technology reader with OSDP v2/Wiegand support, AES-128 encryption, IP65 rating, and BLE mobile credential capability

Product Information

Standard Information

• Brand: PRODATAKEY
• Manufacturer Part Number: RGPBV2

Technical Specifications

• Brand: Prodatakey
• Manufacturer Part Number: RGPBV2
• Model: RGPBV2
• Form Factor: Single-gang reader
• Pack Size: 1
• Protocols / Interfaces: OSDP v2; Wiegand
• Credential Support: Bluetooth LE (mobile credentials); 13.56 MHz smart cards (including MIFARE DESFire EV2/EV3); 125 kHz proximity cards
• Encryption: AES-128
• Enclosure Rating: IP65
• Operating Temperature: -31°F to 150°F (-35°C to 66°C)
• Input Voltage: 5 - 24 VDC
• Dimensions (L x W x H): 3.29 in x 0.73 in x 5.25 in
• Fits / Mounting Type: Standard single-gang wall boxes
• LED Indicators: Access granted, access denied, tamper
• Compatible Controllers: PDK Red 1; PDK Red 2; Cloud Node
• Transmission Bands / Technologies: 125 kHz; 13.56 MHz; Mobile BLE
• Item Number: RGPBV2
