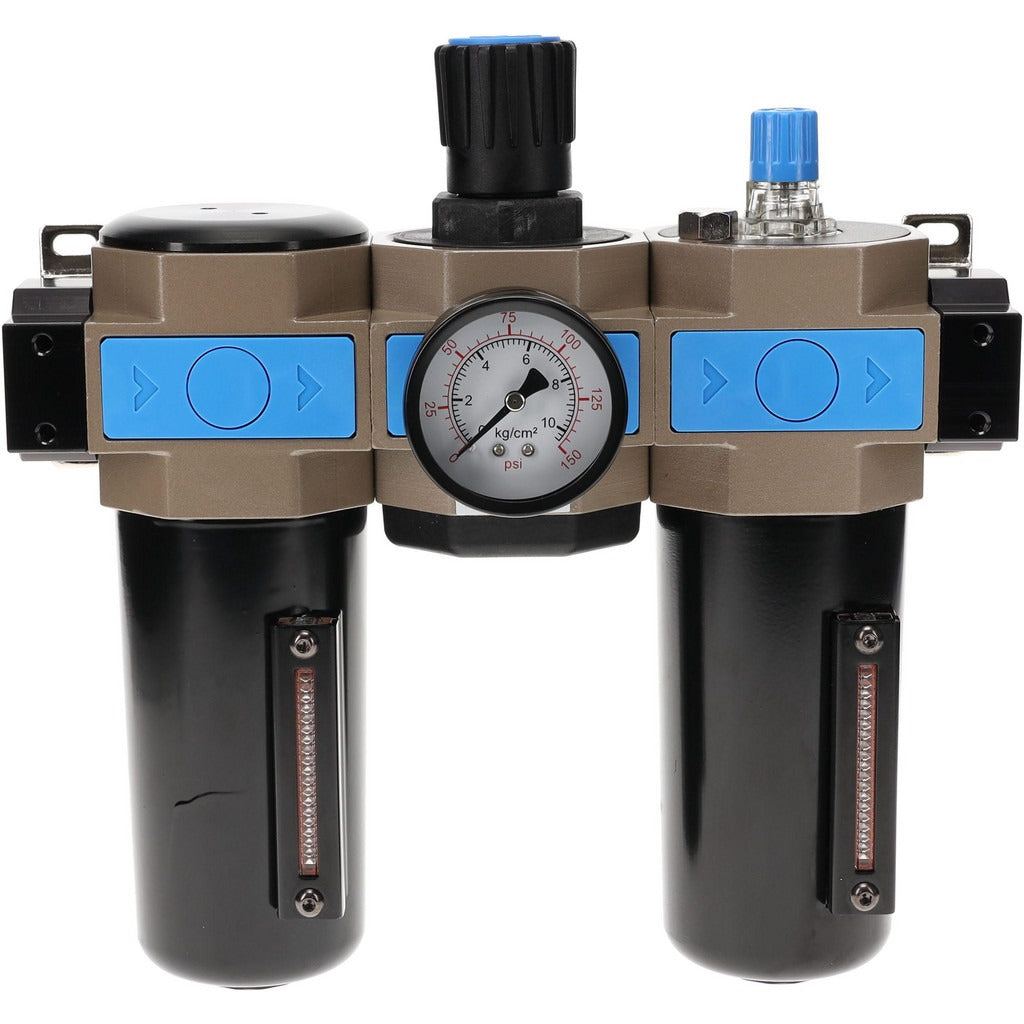

Pro-source UFRL-08NDAL Frl Combo Unit 1 Npt 289.55 Scfm

Product Description

The PRO-SOURCE UFRL-08NDAL is a heavy-duty FRL combination unit that integrates a filter, regulator, and lubricator into a single inline assembly for compressed air systems. It accepts a 1-inch NPT port and delivers up to 289.55 SCFM at a maximum supply pressure of 215 psi. The aluminum bowl construction keeps weight low while maintaining durability in industrial environments. An automatic drain removes condensate without manual intervention, and a 0.5-micron filter rating captures fine particulate before air reaches downstream tools and equipment. A pressure gauge is included for at-a-glance system monitoring. Pneumatic technicians and industrial maintenance professionals install this unit as part of air preparation lines serving production equipment, automation systems, and heavy pneumatic tooling.

This FRL unit suits industrial and commercial compressed air applications where high flow capacity and reliable air quality are required. The 1-inch NPT port size makes it appropriate for main air distribution lines feeding multiple tools or large pneumatic actuators. The modular connection design allows the filter, regulator, and lubricator sections to be reconfigured or serviced independently. A sight glass and included mounting brackets simplify installation and routine inspection. Filter bowl capacity is 7.1 ounces and lubricator bowl capacity is 8.0 ounces, supporting extended service intervals in high-demand applications. Operating temperature range is 14 degrees F to 140 degrees F.

Key Features

• 289.55 SCFM flow capacity at up to 215 psi maximum supply pressure
• 0.5-micron filter rating for fine particulate removal from compressed air
• Automatic drain eliminates manual condensate removal
• Aluminum bowl construction reduces weight while resisting corrosion
• Includes pressure gauge, sight glass, and mounting brackets
• Modular connection design allows independent servicing of each section

Compatibility

Designed as an OEM-style replacement or new-installation FRL combination unit for industrial compressed air preparation lines using 1-inch NPT connections.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial maintenance technician. Depressurize and lock out the compressed air supply before mounting or servicing this unit. Install with airflow direction matching the arrow cast into the body, and ensure all NPT threads are sealed with appropriate thread sealant. Verify that downstream system pressure requirements fall within the regulator adjustment range before returning the line to service.
