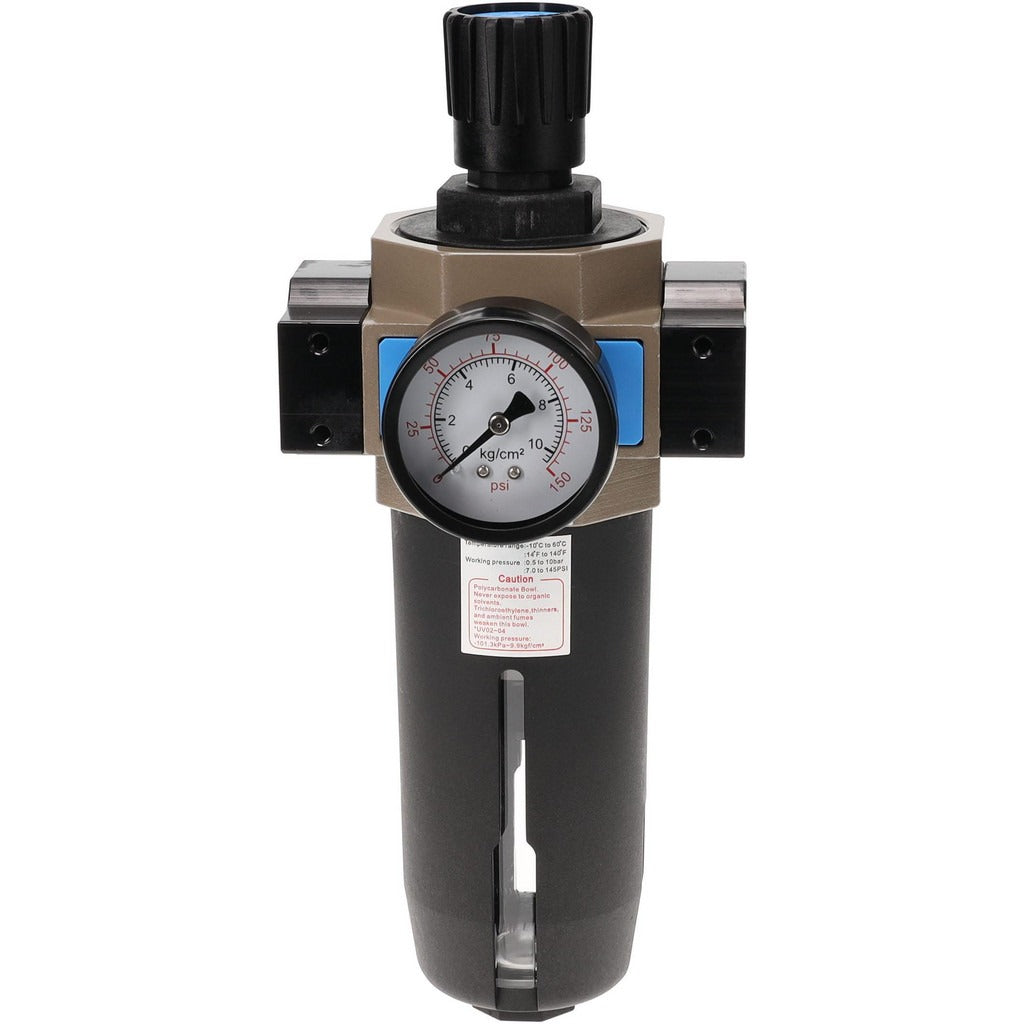

Pro-source UFR-06N Frl Combination Unit 3/4 Npt 280.37 Scfm

Product Description

The PRO-SOURCE UFR-06N is a heavy-duty FRL (filter-regulator-lubricator) combination unit designed for compressed air systems in industrial and commercial applications. It integrates filtration, pressure regulation, and lubrication into a single inline assembly, reducing installation complexity and pressure drop across multiple components. The unit handles up to 145 psi supply pressure and delivers a flow capacity of 280.37 SCFM through a 3/4 NPT port. A semi-automatic drain and 0.5 micron filtration rating keep moisture and particulates out of downstream pneumatic equipment. A pressure gauge and sight glass are included, giving technicians immediate visual confirmation of system conditions without additional hardware.

This FRL unit is suited for industrial compressed air distribution lines serving pneumatic tools, actuators, valves, and automated equipment. The 3/4 NPT port size fits medium-to-large compressed air headers common in light manufacturing, maintenance shops, and process facilities. It can be installed as a standalone unit or connected into a modular pneumatic conditioning bank. The aluminum filter bowl with bowl guard and a 7.1 oz bowl capacity make it appropriate for environments where moisture accumulation is a regular concern. Mounting brackets are included, supporting direct panel or wall installation without separate hardware sourcing.

Key Features

• Heavy-duty body with 3/4 NPT port handles up to 280.37 SCFM flow capacity
• 145 psi maximum supply pressure rating for high-demand compressed air systems
• 0.5 micron filtration rating removes fine particulates and protects downstream equipment
• Semi-automatic drain reduces manual maintenance intervals
• Aluminum filter bowl with bowl guard and integrated sight glass for visual level monitoring
• Modular connection design allows integration into multi-unit FRL banks
• Pressure gauge, mounting brackets, and bowl guard included in the box

Compatibility

Designed as an OEM-style replacement or new-installation FRL combination unit for compressed air systems using 3/4 NPT connections in industrial and commercial environments.

Installation Notes

Installation is typically performed by a qualified industrial mechanic or pipefitter in accordance with applicable compressed air system codes and equipment manufacturer guidelines. Depressurize and lock out the compressed air supply completely before beginning installation or service. Ensure flow direction arrows on the unit body are oriented correctly with the system airflow. Inspect all NPT thread connections for proper thread engagement and use appropriate thread sealant rated for compressed air service.
