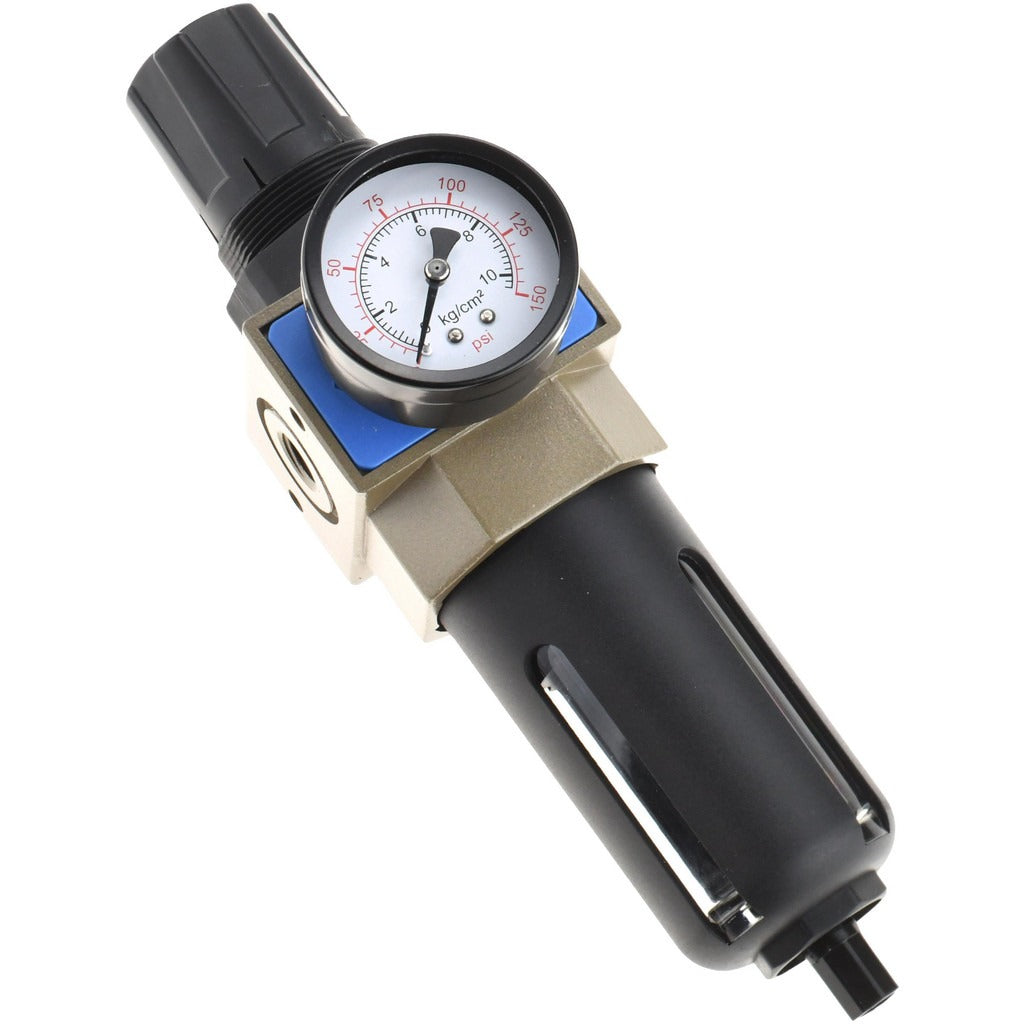

Pro-source UFR-02N Frl Combo Unit 1/4 Npt 73.45 Scfm

Product Description

The PRO-SOURCE UFR-02N is an intermediate-body FRL combination unit designed for compressed air systems requiring integrated filtration, regulation, and lubrication in a single modular assembly. Rated to 73.45 SCFM with a maximum supply pressure of 145 psi, it handles the flow demands of most industrial and commercial pneumatic circuits. The unit ships with a 1/4 NPT port, an aluminum filter bowl with a 3.6 oz capacity, a semi-automatic drain, a 0.5-micron filter element, and an integrated pressure gauge. Brackets and a bowl guard are included. It is installed by industrial maintenance technicians, pipefitters, and pneumatic system specialists.

The UFR-02N suits intermediate-duty pneumatic applications in manufacturing, assembly, and process control environments. The modular connection design allows it to be ganged with other PRO-SOURCE FRL components to build a multi-stage air preparation station. A 1/4 NPT port size makes it appropriate for smaller-bore compressed air circuits. The included sight glass allows for quick visual inspection of bowl level and condition without disassembly. Operating temperature range spans 14 degrees F to 140 degrees F, covering most indoor and climate-controlled industrial settings.

Key Features

• 73.45 SCFM flow capacity at 1/4 NPT port size for intermediate-duty pneumatic circuits
• 145 psi maximum supply pressure rating
• 0.5-micron filtration rating for fine particulate and moisture removal
• Semi-automatic drain on aluminum bowl reduces manual maintenance intervals
• Modular connection design supports multi-unit FRL assembly configurations
• Bowl guard, sight glass, pressure gauge, and mounting brackets included in the box

Compatibility

Designed as an OEM-style replacement or new-installation FRL unit for intermediate-body modular compressed air preparation systems using 1/4 NPT porting.

Installation Notes

Installation should be performed by a qualified pipefitter or pneumatic systems technician. Depressurize and lock out the compressed air supply before installing or servicing this unit. Ensure airflow direction matches the directional arrow on the body. Follow applicable facility codes and OSHA compressed air safety guidelines when setting regulated output pressure.
