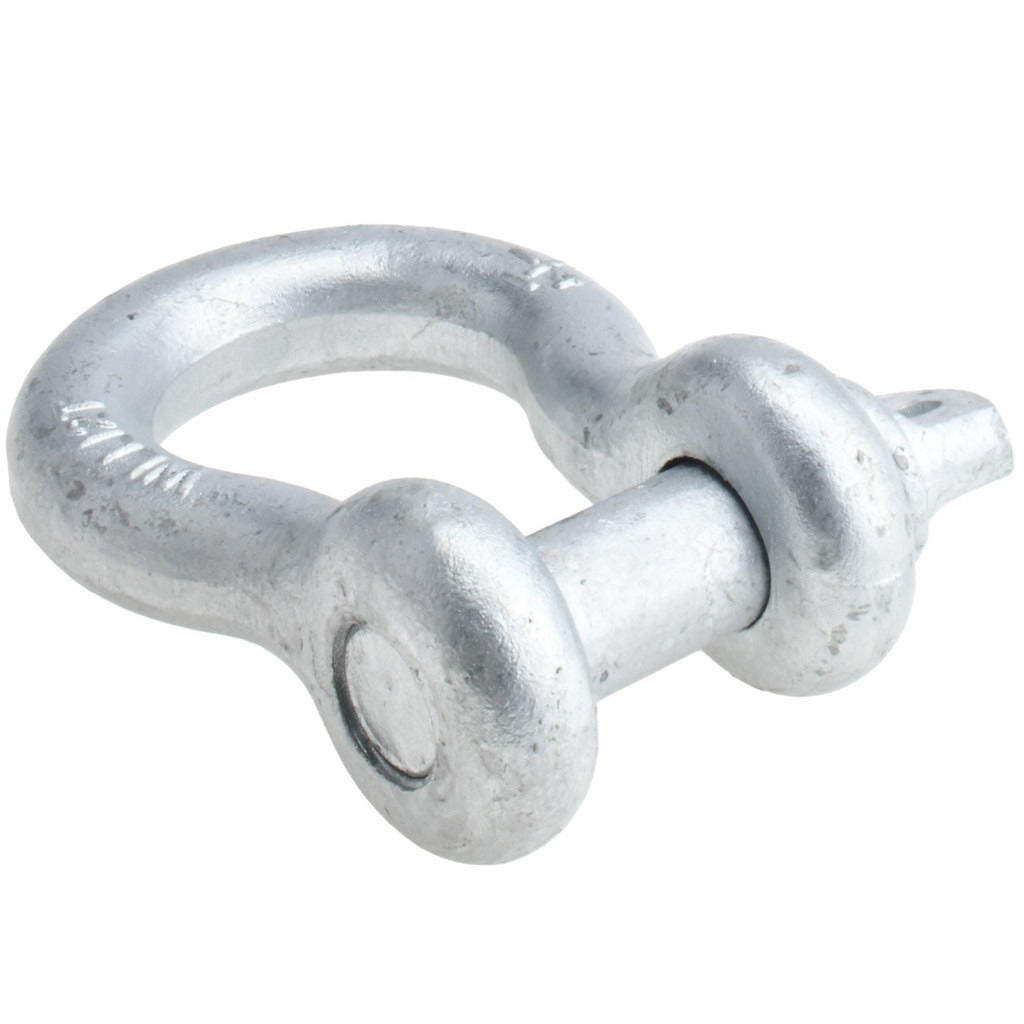

Pro-source PSXK019 Anchor Shackle Screw Pin Galvanized

Product Description

The PRO-SOURCE PSXK019 is a screw pin anchor shackle built from carbon steel with a galvanized finish for corrosion resistance. The screw pin design allows for quick connection and disconnection without tools, making it a practical choice for rigging, lifting, and load-securing applications. The pin measures 1.375 inches in diameter, the jaw inside height is 4.5 inches, and the inside width is 2.0 inches. At 10.1 pounds, this is a heavy-duty shackle suited for demanding industrial and marine environments. Rigging professionals, contractors, and equipment operators are the primary users of this hardware.

This anchor shackle is designed for use in rigging assemblies, lifting slings, load binders, and chain connections where a secure, removable pin connection is required. The anchor (bow) style provides a wider jaw opening compared to a chain shackle, allowing connection to multiple chain links, hooks, or lifting eyes simultaneously. It is well-suited for both stationary and dynamic load applications in construction, marine, and industrial settings.

Key Features

• Screw pin design allows tool-free installation and removal
• Anchor (bow) shackle jaw accommodates multiple attachment points
• Galvanized carbon steel construction provides corrosion resistance
• 1.375 inch pin diameter for high-load capacity connections
• 4.5 inch jaw inside height and 2.0 inch inside width for broad fitment
• Compatible with 1.25 inch chain size per manufacturer specifications

Compatibility

Designed for use with 1.25 inch chain size in standard rigging and lifting assemblies requiring an anchor-style screw pin shackle connection.

Installation Notes

Installation should be performed by a qualified rigger or tradesperson familiar with applicable ASME and OSHA rigging standards. Before attaching, confirm the working load limit of all connected components meets or exceeds the applied load. Thread the screw pin fully until it is hand-tight, then back off a quarter turn to prevent cross-threading under load. Never use a shackle with a bent, worn, or damaged pin.
