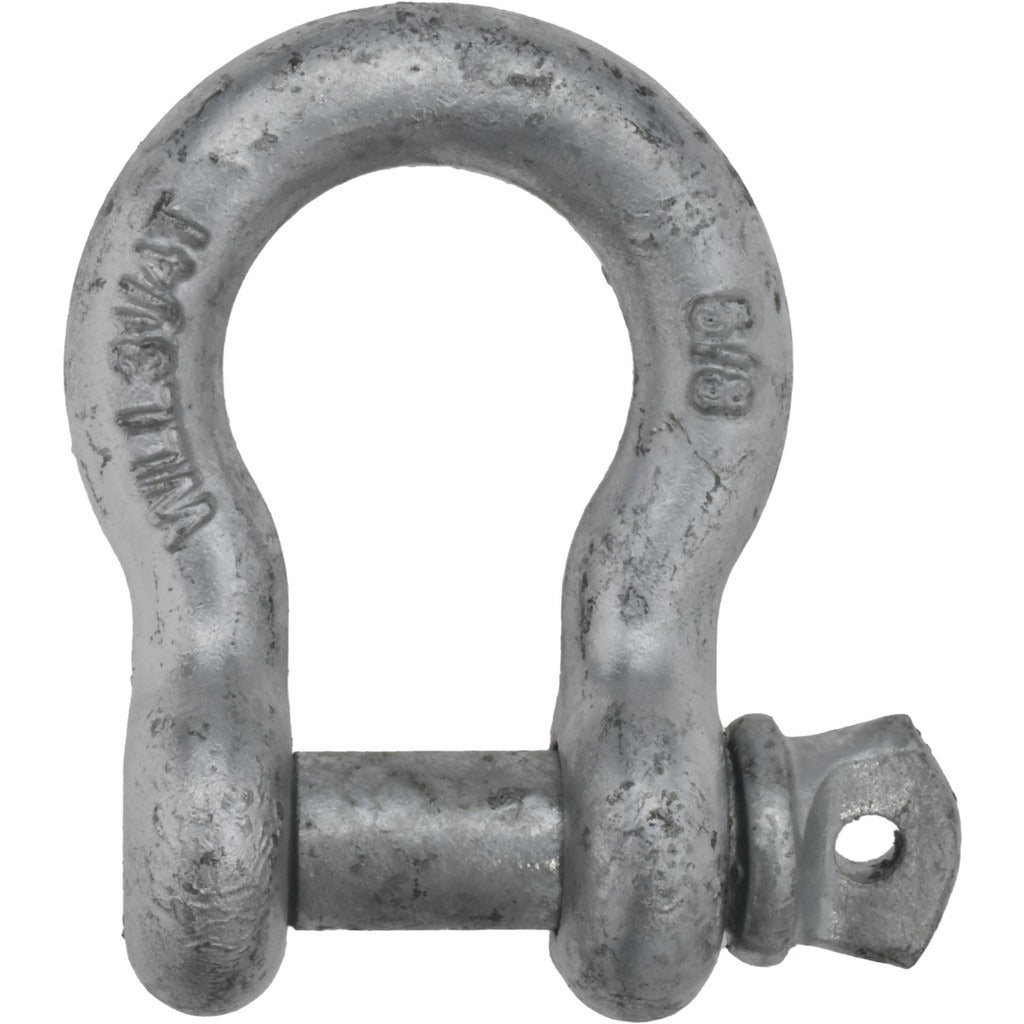

Pro-source PSXK010 Anchor Shackle Screw Pin Galvanized

Product Description

The PRO-SOURCE PSXK010 is a screw pin anchor shackle with a galvanized finish, constructed from carbon steel. Anchor shackles provide a wide bow-shaped jaw that handles multi-directional loads better than chain shackles, making them a common choice for rigging, lifting, and tie-down applications. The screw pin design allows fast, tool-free assembly and removal in field conditions. Key dimensions include a jaw inside height of 2.375 inches, an inside width of 1.0625 inches, and a pin diameter of 0.75 inches. The galvanized finish delivers corrosion resistance for outdoor and marine-adjacent environments. This hardware is installed by riggers, millwrights, and general tradespeople across industrial and construction settings.

The PSXK010 is suited for general-purpose rigging and load-securing tasks in residential construction, commercial job sites, and light industrial environments. The anchor shackle geometry accommodates loads that arrive from multiple angles, making it appropriate for slings, chains, wire rope, and similar attachments. The screw pin closure is appropriate for temporary or semi-permanent connections where the shackle is regularly removed and reattached. It is not intended for overhead lifting applications where a bolt-type or safety shackle is required by applicable standards.

Key Features

• Anchor (bow) shackle geometry distributes multi-directional loads across the wide jaw
• Screw pin closure allows tool-free connection and disconnection in the field
• Galvanized finish provides corrosion resistance in outdoor and high-moisture environments
• Carbon steel construction delivers strength for general rigging and tie-down work
• Pin diameter of 0.75 inches for compatibility with standard shackle hardware

Compatibility

Designed as a general-purpose screw pin anchor shackle for use with wire rope, chain, synthetic slings, and similar rigging hardware in standard trade and construction applications.

Installation Notes

Installation and removal is typically performed by qualified riggers or tradespeople following applicable ASME B30.26 or OSHA rigging guidelines. Before attaching, confirm the shackle working load limit meets or exceeds the intended load. Screw the pin fully in and back off one quarter turn to seat correctly, then mouse or seize the pin if the connection will see dynamic or vibrating loads. Do not use screw pin shackles for overhead lifting in applications where regulations require bolt-type safety shackles.
