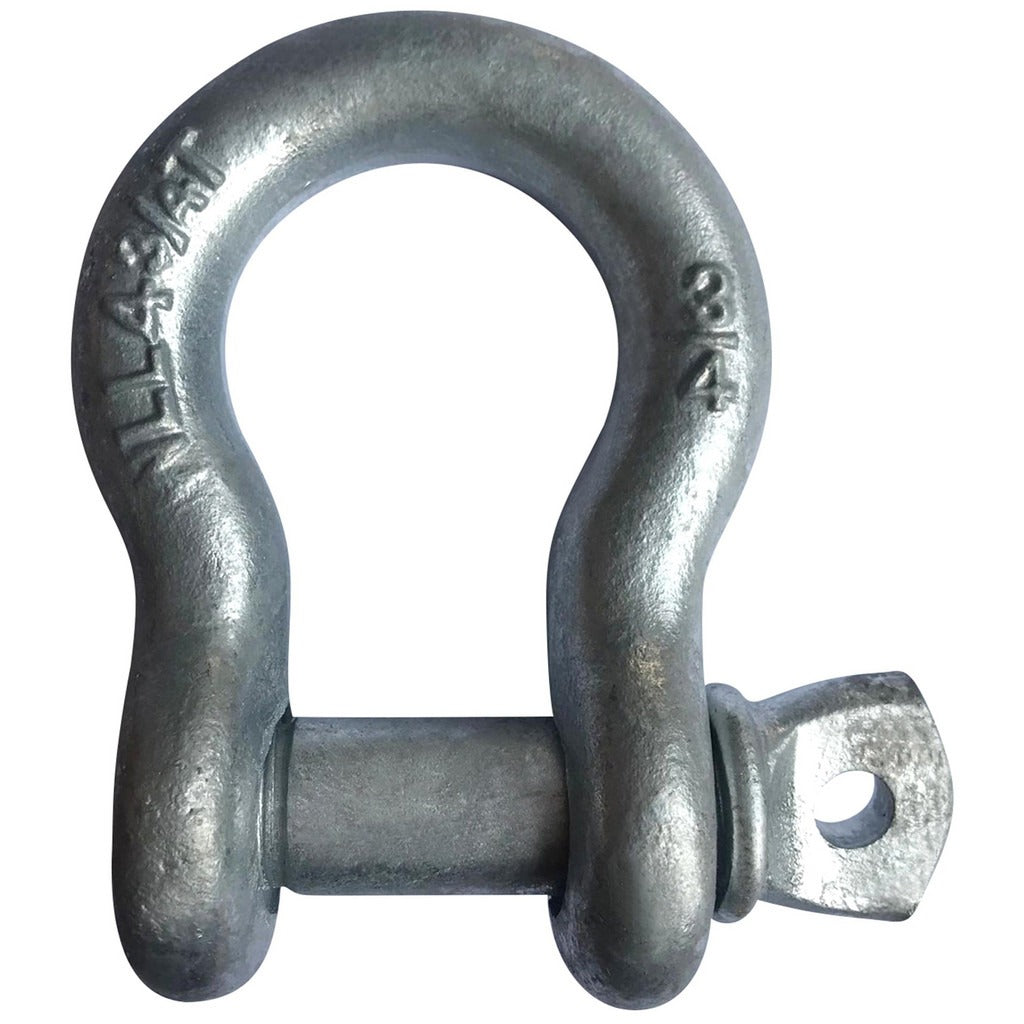

Pro-source PSXK003 Anchor Shackle Screw Pin Galvanized

Product Description

The PRO-SOURCE PSXK003 is a screw pin anchor shackle with a galvanized finish, manufactured from carbon steel. Anchor shackles are load-bearing rigging hardware used to connect wire rope, chain, or synthetic slings to a fixed point or to each other. The screw pin design allows fast attachment and removal by hand without tools, making it well suited for general rigging, lifting, and tie-down applications. Key dimensions include a jaw inside height of 2.8125 inches, an inside width of 1.25 inches, and a pin diameter of 7/8 inch. The galvanized finish provides corrosion resistance in outdoor and light industrial environments. Riggers, ironworkers, and general contractors are the typical installers.

This anchor shackle is appropriate for general-purpose rigging in construction, marine, utilities, and industrial maintenance settings. It fits applications where a removable, non-locking screw pin connection point is needed at a fixed anchor or along a rigging assembly. The 7/8-inch pin diameter and anchor-style bow make it compatible with standard rigging hardware in the same size class. It is packaged individually and sold as a single unit.

Key Features

• Anchor shackle bow geometry provides a wider bearing surface than chain-style shackles, distributing load across slings and fittings
• Screw pin closure allows tool-free assembly and disassembly in the field
• Galvanized carbon steel construction resists corrosion in outdoor and wet environments
• 7/8-inch pin diameter suits standard rigging hardware in that size class
• 1.25-inch inside width accommodates a range of sling eyes and connecting links

Compatibility

Designed as a general-purpose screw pin anchor shackle for use with wire rope assemblies, chain, and synthetic slings in standard rigging configurations. No specific OEM model compatibility was provided by the manufacturer.

Installation Notes

Screw pin shackles are installed and removed by rigging professionals following applicable ASME B30.26 standards for rigging hardware. Before use, confirm the working load limit of the shackle is not exceeded by the applied load and inspect the pin, bow, and threads for wear or deformation. Always thread the screw pin fully and secure it per the manufacturer or jobsite rigging plan before applying load. Do not use screw pin shackles in applications with dynamic or rotating loads without consulting a qualified rigger.
