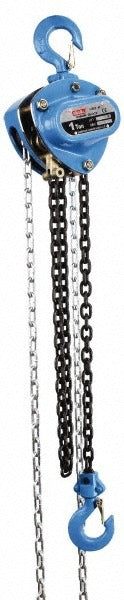

Pro-source PSHSZ-1.5K-20 Manual Chain Hoist 3000 Lb

Product Description

The PRO-SOURCE PSHSZ-1.5K-20 is a manual hand chain hoist rated for 3,000 pounds of lifting capacity with a 20-foot lift height. It uses a single strand of load chain and requires 80 pounds of lever force to operate. Minimum headroom is 17.375 inches, making it suitable for applications where overhead clearance is limited. This hoist is installed and operated by maintenance technicians, riggers, and trade professionals who need a reliable, non-powered lifting solution for material handling, equipment positioning, or machinery maintenance tasks.

This manual chain hoist is designed for use in industrial, commercial, and trade environments where a portable or fixed overhead lifting point is available. Typical applications include equipment rooms, warehouses, workshops, and mechanical service areas. With a 20-foot lift height and 65 feet of chain overhauled to lift the load 1 foot, it suits both occasional and repetitive overhead lifting tasks. No power source is required, making it practical for field service or remote job sites.

Key Features

• 3,000 lb rated lifting capacity with a single strand of load chain
• 20-foot lift height for extended vertical reach
• 80 lb lever force required for smooth, controlled manual operation
• 17.375-inch minimum headroom allows use in tight overhead clearances
• 65 feet of chain overhauled per 1 foot of load lift
• No electrical power required - fully manual operation

Compatibility

Designed as a general-purpose manual chain hoist for use with standard overhead beam trolleys, fixed hooks, or rigging points rated for the specified load capacity.

Installation Notes

Installation and operation should be performed by qualified riggers or maintenance technicians familiar with overhead lifting equipment. Verify that the mounting structure, beam, or anchor point is rated to support the full working load plus any applicable safety factor before use. Inspect the chain, hooks, and load brake before each lift. Follow applicable ASME B30.16 standards for overhead hoists and always de-tension the chain before performing any service or inspection.
