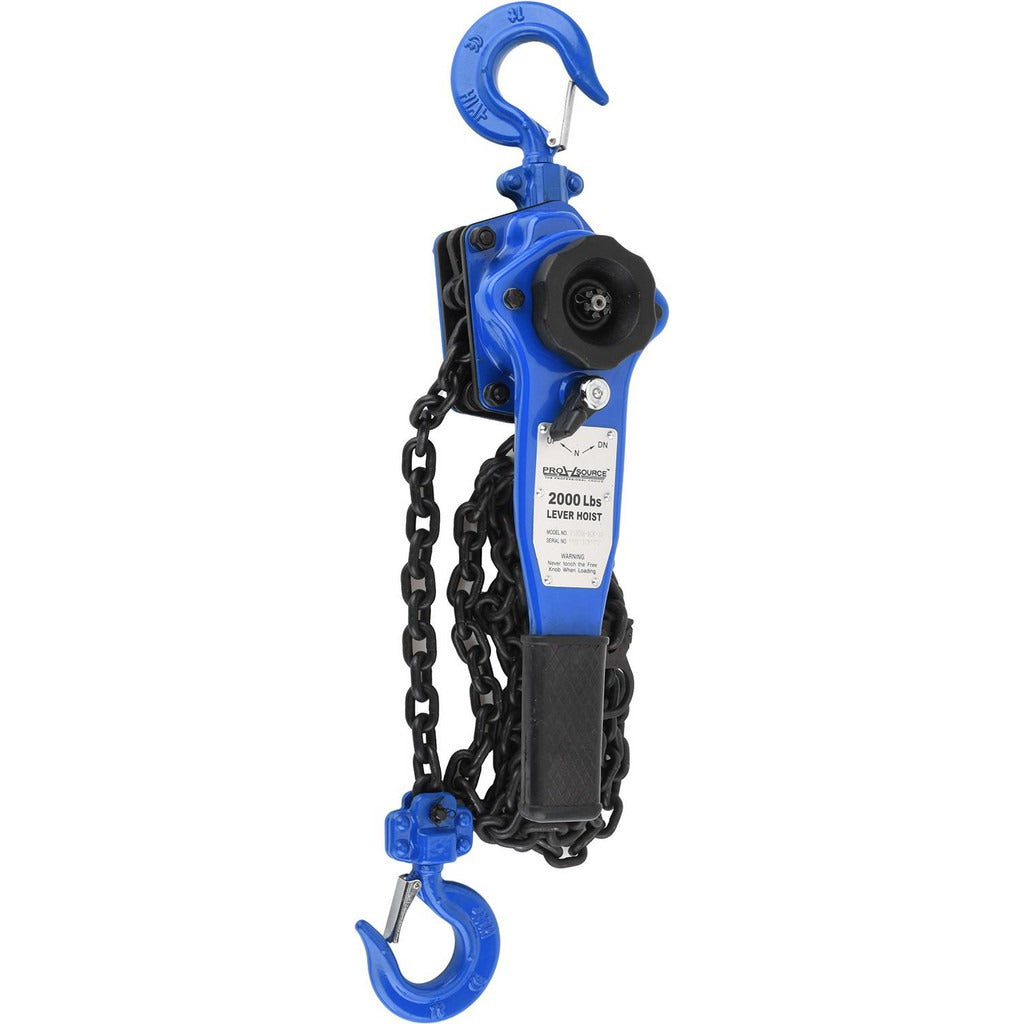

Pro-source PSHSH-1CK-10 Manual Lever Hoist 2000 Lb 10 Ft

Product Description

The PRO-SOURCE PSHSH-1CK-10 is a manual lever hoist designed for lifting, pulling, and positioning loads in industrial, construction, and maintenance environments. It operates with a lever-action mechanism and a single chain, delivering a rated capacity of 2000 pounds with a 46-pound lever force required to operate under load. With a 10-foot lift height and a minimum headroom requirement of 12.8 inches, it fits in tighter overhead spaces than many comparable chain hoists. The unit weighs 18.4 pounds, making it portable enough for field use while still handling substantial loads. Rigging crews, maintenance technicians, and industrial contractors are the primary installers.

This lever hoist is suited for overhead lifting and load-securing tasks in fabrication shops, warehouses, construction sites, and maintenance bays. It is particularly useful where electric or pneumatic hoisting equipment is impractical or unavailable. The single-chain configuration keeps the working envelope compact, and the 10-foot lift range covers most standard bay heights and elevated positioning tasks encountered in routine industrial and trade work.

Key Features

• 2000 lb rated load capacity for heavy-duty lifting and pulling applications
• 10-foot lift height accommodates standard bay and overhead work scenarios
• 46 lb lever operating force provides controlled load movement under full capacity
• Minimum headroom of 12.8 inches allows use in confined overhead clearances
• Single-chain design keeps the working envelope compact and manageable
• 18.4 lb unit weight supports portability for field and multi-site use

Compatibility

Designed as an OEM-style replacement or direct-use lever hoist suitable for general industrial lifting and rigging applications requiring a 2000 lb capacity manual chain hoist.

Installation Notes

Lever hoists must be installed by qualified rigging personnel familiar with applicable ASME B30.21 standards governing lever hoists and their rated load limits. Before use, verify that the overhead anchor point, beam, or trolley is rated to support the combined weight of the hoist, load, and any dynamic forces. Never exceed the rated capacity, and inspect the chain, hook latches, and body for damage before each lift. Lock out and tag out any adjacent powered equipment before rigging in energized areas.
