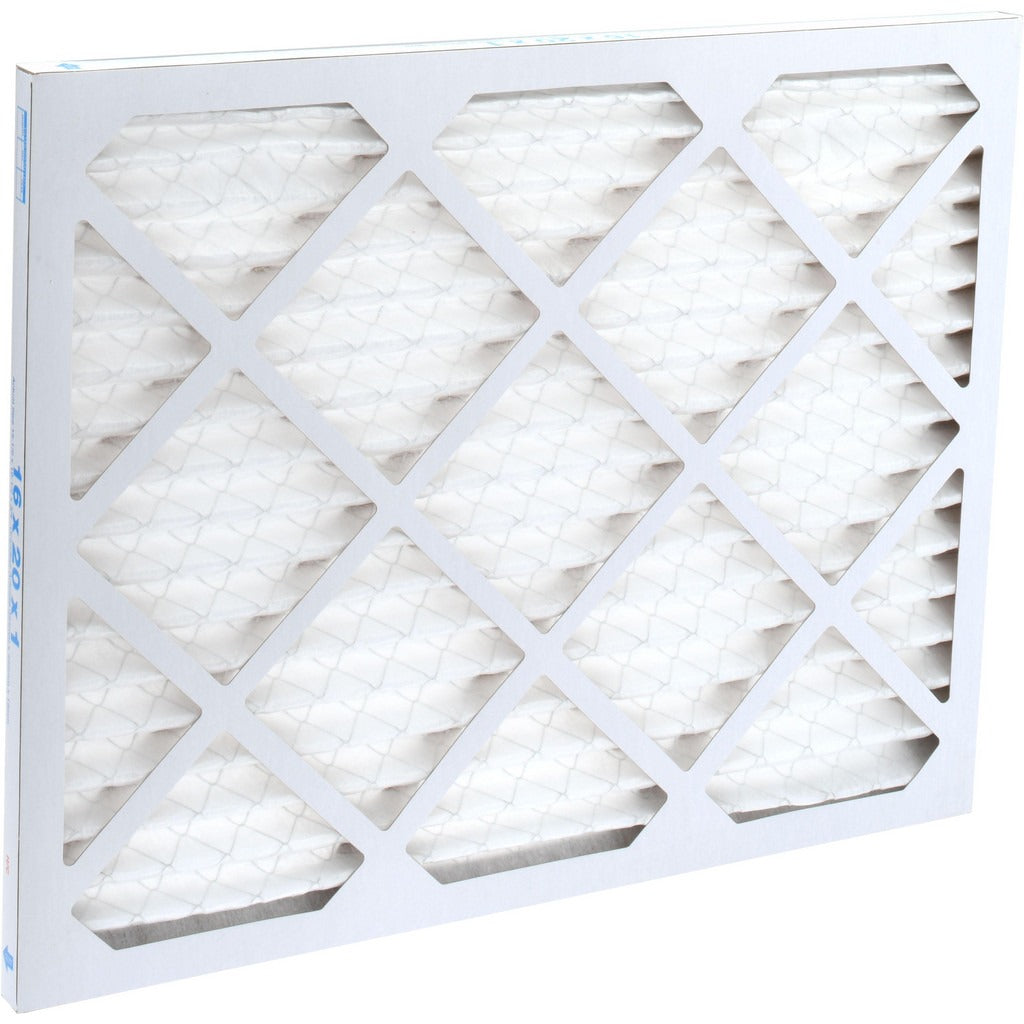

Pro-source PS21716201 Pleated Air Filter 16x20x1 Merv 8

Product Description

The PRO-SOURCE PS21716201 is a MERV 8 pleated air filter sized 16 x 20 x 1 inches (nominal), designed for residential and light commercial HVAC applications. It uses a synthetic pleated media with a clay-coated paperboard frame to capture airborne particulates at 35% efficiency. Rated for airflow up to 650 CFM and a maximum face velocity of 300 FPM, this filter maintains a low initial resistance of 0.24 inches water gauge at 300 FPM. It is suitable for any standard forced-air system and is installed by HVAC technicians or qualified service personnel performing routine filter maintenance.

This filter fits nominal 16 x 20 x 1-inch filter slots found in a wide range of residential furnaces, air handlers, and central cooling systems. The actual dimensions are 15-1/2 x 19-1/2 x 3/4 inches, which is standard for this nominal size class. It is rated for continuous operation up to 150 degrees F, making it compatible with most forced-air heating and cooling equipment in typical residential and light commercial settings. The integrated frame provides structural support during installation and throughout the service life of the filter.

Key Features

• MERV 8 rated with 35% particle capture efficiency for general-purpose air quality maintenance
• Synthetic pleated media delivers balanced airflow restriction and filtration performance
• Clay-coated paperboard frame with integrated construction for stable, easy installation
• Low initial resistance of 0.24 inches water gauge at 300 FPM protects system static pressure
• Rated up to 650 CFM and 300 FPM maximum face velocity
• Maximum operating temperature of 150 degrees F
• Meets ASHRAE 52.2 and UL 900 standards

Compatibility

Designed for use with any forced-air HVAC unit accepting a nominal 16 x 20 x 1-inch pleated air filter.

Installation Notes

A licensed HVAC technician or qualified service professional should install this filter. Power down the air handler or furnace before opening the filter access panel. Confirm airflow direction arrows on the filter frame align with the direction of airflow toward the blower. Replace the filter at regular intervals based on system runtime and indoor air quality conditions.
