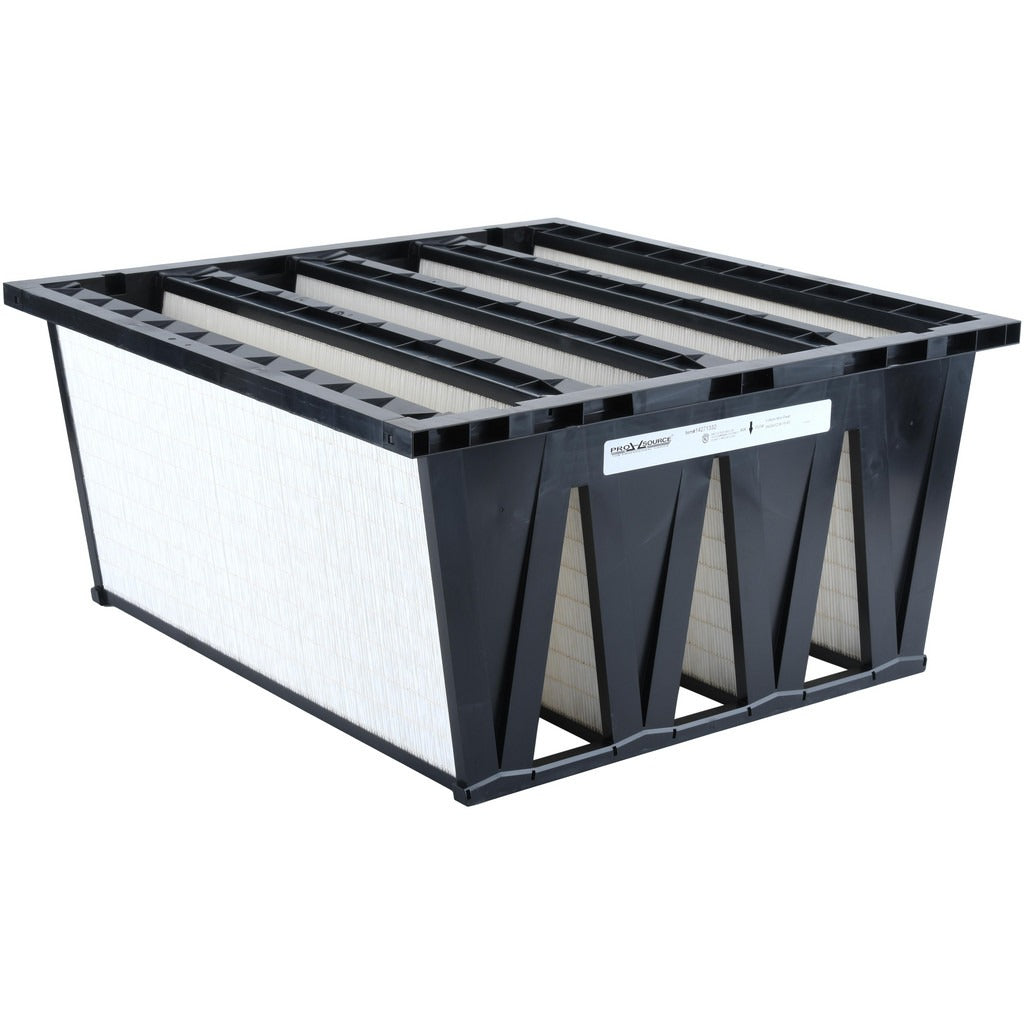

Pro-source PRO40077-P Merv 16 Air Filter 24x24x12

Product Description

The PRO-SOURCE PRO40077-P is a MERV 16 V-Bank mini-pleat air filter designed for high-efficiency particulate filtration in commercial and industrial HVAC systems. Built with a microfiberglass media and an integrated plastic frame, this filter measures 24 x 24 x 12 inches nominal (23.38 x 23.38 x 11.5 inches actual) and handles airflow up to 2,500 CFM. The V-Bank configuration increases media surface area within the 12-inch depth, supporting lower resistance at rated face velocities. Licensed HVAC technicians and facilities maintenance professionals are the primary installers for this class of filtration equipment.

This filter is suited for commercial air handling units, built-up systems, and dedicated outdoor air systems requiring high-efficiency filtration. Its MERV 16 rating captures fine particulates including combustion particles, lead dust, and humidifier dust, making it appropriate for hospitals, laboratories, clean manufacturing environments, and similar applications where air quality standards are stringent. The 12-inch depth and V-Bank geometry allow it to fit standard deep-loading filter banks without sacrificing service intervals.

Key Features

• MERV 16 microfiberglass media for high-efficiency particulate capture
• V-Bank mini-pleat design increases media area and extends filter life at equivalent CFM
• Nominal 24 x 24 x 12 inches; actual 23.38 x 23.38 x 11.5 inches for standard housing fit
• Rated airflow up to 2,500 CFM with maximum face velocity of 750 FPM
• Initial resistance of 0.41 inches w.g. at 375 FPM, 0.57 at 500 FPM, and 0.75 at 625 FPM
• Integrated plastic frame; UL 900 listed; rated to 150 degrees F maximum

Compatibility

Designed as an OEM-style replacement for commercial HVAC air handling units and filter banks accepting 24 x 24 x 12 inch nominal V-Bank or deep-loading pleated filters.

Installation Notes

Installation should be performed by a qualified HVAC technician. Shut down the air handling unit and verify zero airflow before removing the existing filter or inserting the replacement. Confirm housing dimensions against the actual filter size (23.38 x 23.38 x 11.5 inches) to ensure a proper seal with no bypass gaps. Handle microfiberglass media carefully and follow applicable facility safety protocols regarding respiratory protection during filter changeout.
