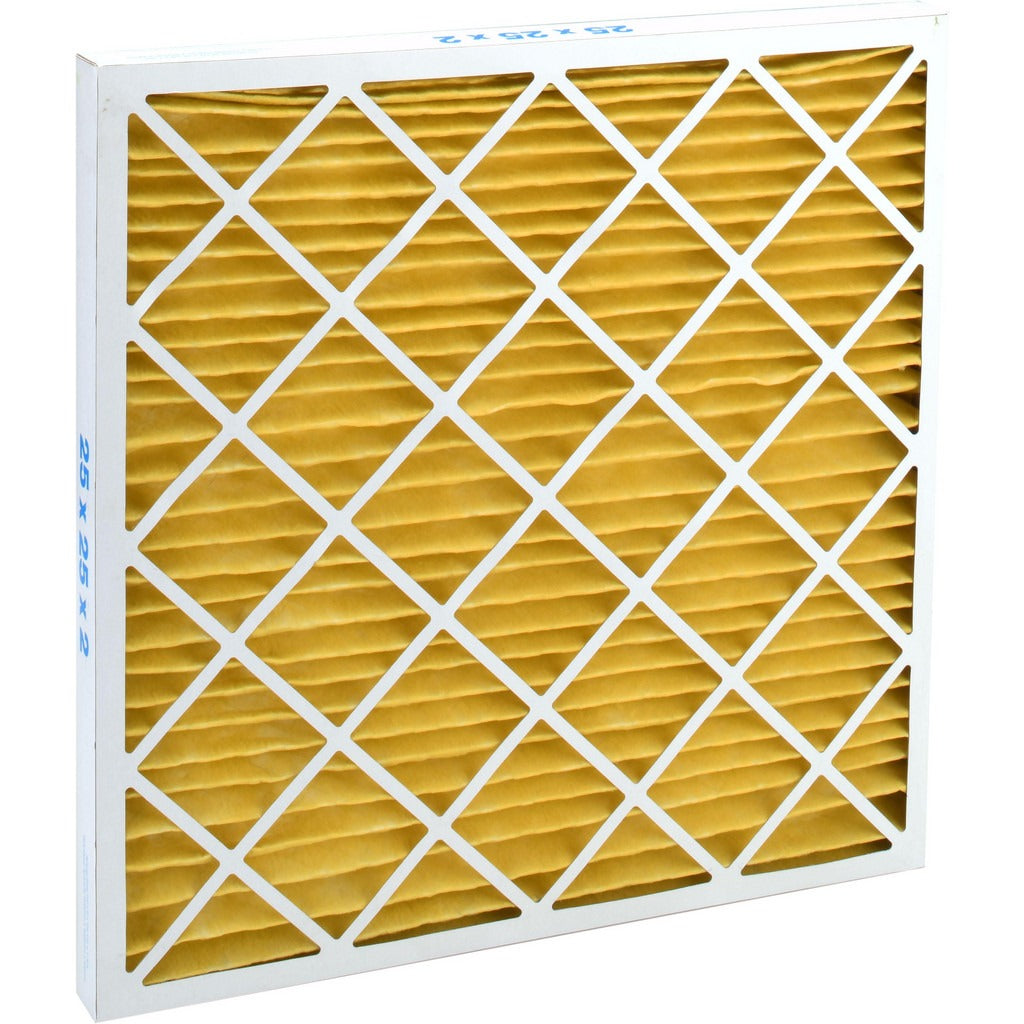

Pro-source PRO19665 Pleated Air Filter 25x25x2 Merv 11

Product Description

The PRO-SOURCE PRO19665 is a wire-backed pleated air filter rated MERV 11, designed for residential and light commercial HVAC systems. The synthetic filter media is supported by a wire backing that holds pleat geometry under airflow, maintaining consistent filtration efficiency throughout the service life. The beverage board frame provides dimensional stability during installation and operation. At a rated airflow of 2,150 CFM and a maximum face velocity of 500 FPM, this filter suits a wide range of forced-air applications. Licensed HVAC technicians and facilities maintenance personnel are the typical installers.

This filter fits standard 25 x 25 x 2 inch filter slots in residential and light commercial air handlers, furnaces, and fan coil units. The nominal size is 25 x 25 x 2 inches, with actual dimensions of 24.5 x 24.5 x 1.75 inches. MERV 11 filtration captures particles including dust, pollen, mold spores, pet dander, and fine dust, making it appropriate for environments where improved indoor air quality is a priority without significantly restricting airflow. The integrated frame eliminates the need for a separate filter rack in most standard applications.

Key Features

• MERV 11 synthetic pleated media for mid-range particulate capture efficiency
• Wire-backed pleat construction maintains pleat geometry and prevents media collapse at rated airflow
• Beverage board frame with integrated design for tool-free, track-guided installation
• Rated airflow of 2,150 CFM with maximum face velocity of 500 FPM
• Initial resistance of 0.19 inches w.g. at 375 FPM, 0.28 at 500 FPM, and 0.38 at 625 FPM
• UL 900 listed; maximum operating temperature of 150 degrees F

Compatibility

Designed for use with any unit requiring a 25 x 25 x 2 inch nominal filter. Verify the actual filter slot dimensions against the actual filter size of 24.5 x 24.5 x 1.75 inches before installation.

Installation Notes

HVAC technicians and facilities maintenance personnel should power down the air handling unit at the disconnect or thermostat before replacing the filter. Insert the filter with the airflow arrow on the frame pointing toward the blower or heat exchanger, not toward the return air duct. Confirm the filter seats flush in the track with no bypass gaps around the frame. Dispose of used filters in accordance with local waste guidelines; MERV 11 filters capturing fine particulates should be bagged before disposal.
