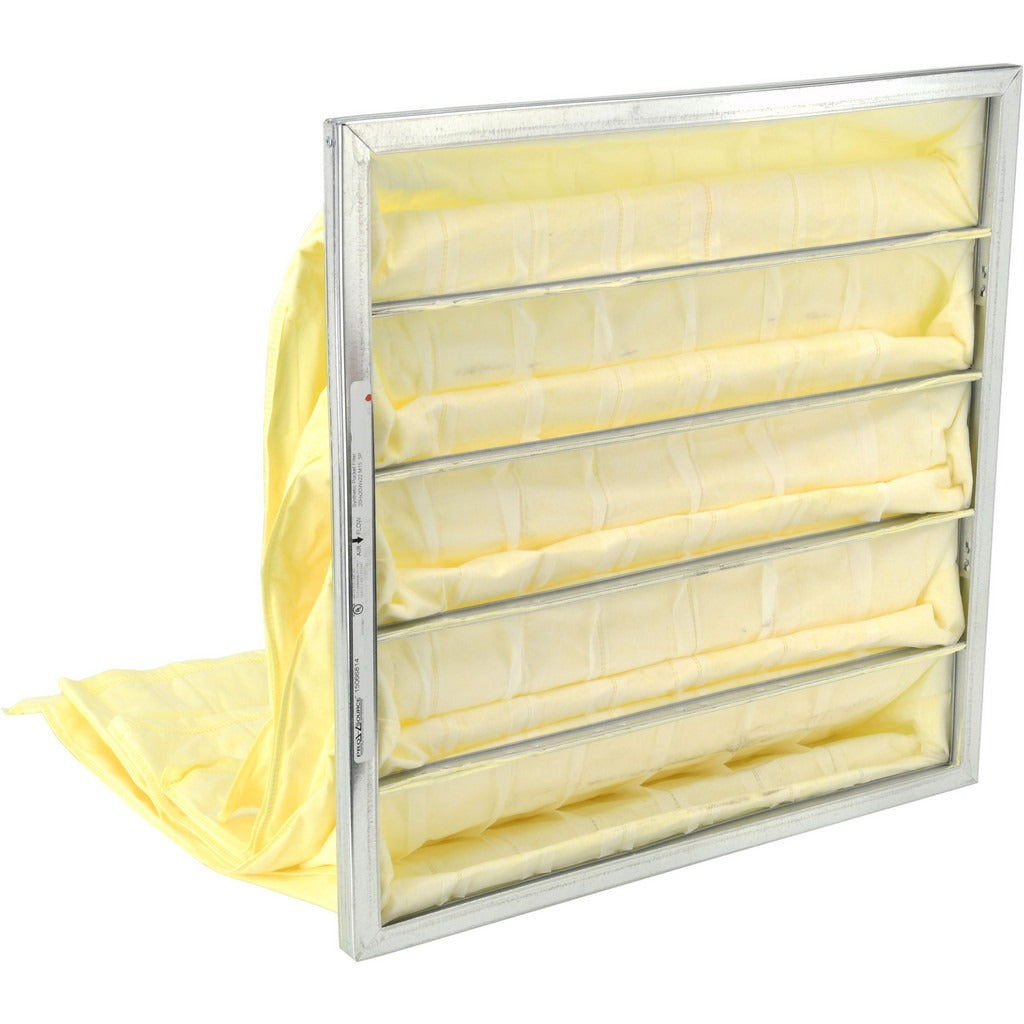

Pro-source PRO18290 Bag Air Filter Merv 15 20x20x22

Product Description

The PRO-SOURCE PRO18290 is a synthetic bag-style air filter rated MERV 15, designed for commercial and industrial HVAC air-handling systems that require high-efficiency particulate capture. With a particle capture efficiency of 90 to 95 percent and a maximum airflow rating of 500 feet per minute at 1,389 CFM, this filter handles demanding ventilation loads. The galvanized steel integrated frame holds five synthetic media pockets securely in place and supports continuous service up to 150 degrees F. This filter is installed by commercial HVAC technicians in applications where intermediate-to-high-efficiency filtration is required ahead of sensitive equipment or in occupancy-critical environments.

The PRO18290 is suited for commercial air-handling units, rooftop units, and central station air handlers in office buildings, healthcare facilities, schools, and light industrial environments. Its MERV 15 rating targets fine particulate matter including fine dust, smoke, and biological aerosols. The five-pocket bag construction maximizes media surface area, extending service intervals compared to standard flat-panel filters. Nominal face dimensions of 20 inches by 20 inches make it a common fit in standard commercial filter banks.

Key Features

• MERV 15 rating with 90 to 95 percent particle capture efficiency for high-efficiency filtration
• Five synthetic media pockets maximize surface area and extend service life
• Integrated galvanized steel frame provides structural rigidity and secure seating in filter track
• Maximum operating temperature of 150 degrees F suitable for demanding air-handling environments
• Rated for up to 500 FPM face velocity and 1,389 CFM airflow
• UL 900 listed media

Compatibility

Designed as an OEM-style replacement for commercial HVAC air-handling units accepting 20 inches by 20 inches nominal bag filters with 22 inches depth and a 5-pocket configuration.

Installation Notes

Installation is typically performed by a licensed commercial HVAC technician. Always power down and lock out the air-handling unit before removing or installing filters. Verify that the filter bank track and holding frame dimensions match the nominal and actual face dimensions before installation. Confirm airflow direction arrow on the frame aligns with the system airflow direction, and inspect the frame seal against the filter track to prevent bypass.
