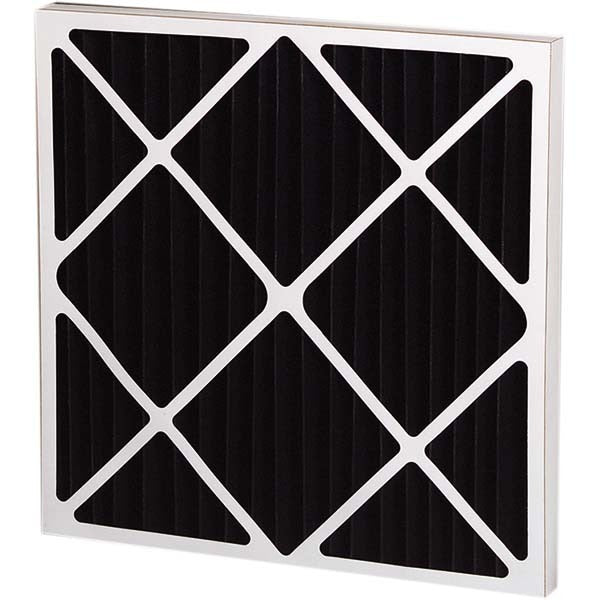

Pro-source PRO16336 Pleated Air Filter 24x24x2 Merv 6 Carbon

Product Description

The PRO-SOURCE PRO16336 is a pleated air filter designed for residential and light commercial HVAC systems requiring moderate particulate and odor control. Built with a carbon synthetic media and a beverage board frame, this filter targets MERV 6 filtration performance at airflows up to 2,000 CFM. The nominal size is 24 x 24 x 2 inches with actual dimensions of 23.5 x 23.5 x 1.75 inches. Initial resistance measures 0.18 inches w.g. at 300 FPM and 0.37 inches w.g. at 500 FPM. Licensed HVAC technicians and facilities maintenance personnel are the primary installers for this filter type.

This filter suits forced-air furnaces, air handlers, and packaged HVAC units that accept a 24 x 24 x 2 inch nominal filter slot. The carbon synthetic media provides basic particulate capture along with light odor reduction, making it appropriate for spaces with mild cooking, pet, or general household odor concerns. The beverage board frame maintains structural integrity at operating temperatures up to 150 degrees F, keeping the filter seated properly during normal system cycling.

Key Features

• MERV 6 filtration rating captures lint, dust, pollen, and larger particulates
• Carbon synthetic media provides basic odor reduction in addition to particulate filtration
• Beverage board integrated frame supports the media and maintains filter shape in the track
• Rated up to 2,000 CFM airflow with a maximum velocity of 500 FPM
• Low initial resistance of 0.18 inches w.g. at 300 FPM reduces static pressure impact on the system
• Maximum operating temperature of 150 degrees F suits standard residential and light commercial applications

Compatibility

Designed as a direct-fit replacement for HVAC systems and air handlers that accept a 24 x 24 x 2 inch nominal pleated filter with a standard beverage board frame.

Installation Notes

Filter installation is performed by licensed HVAC technicians or qualified maintenance personnel. Power down or set the thermostat to off before opening the filter compartment to prevent unfiltered air from being drawn through the system during changeout. Confirm airflow direction arrows on the filter frame align with the system airflow direction before seating the filter. Inspect the filter housing for bypass gaps around the frame after installation.
