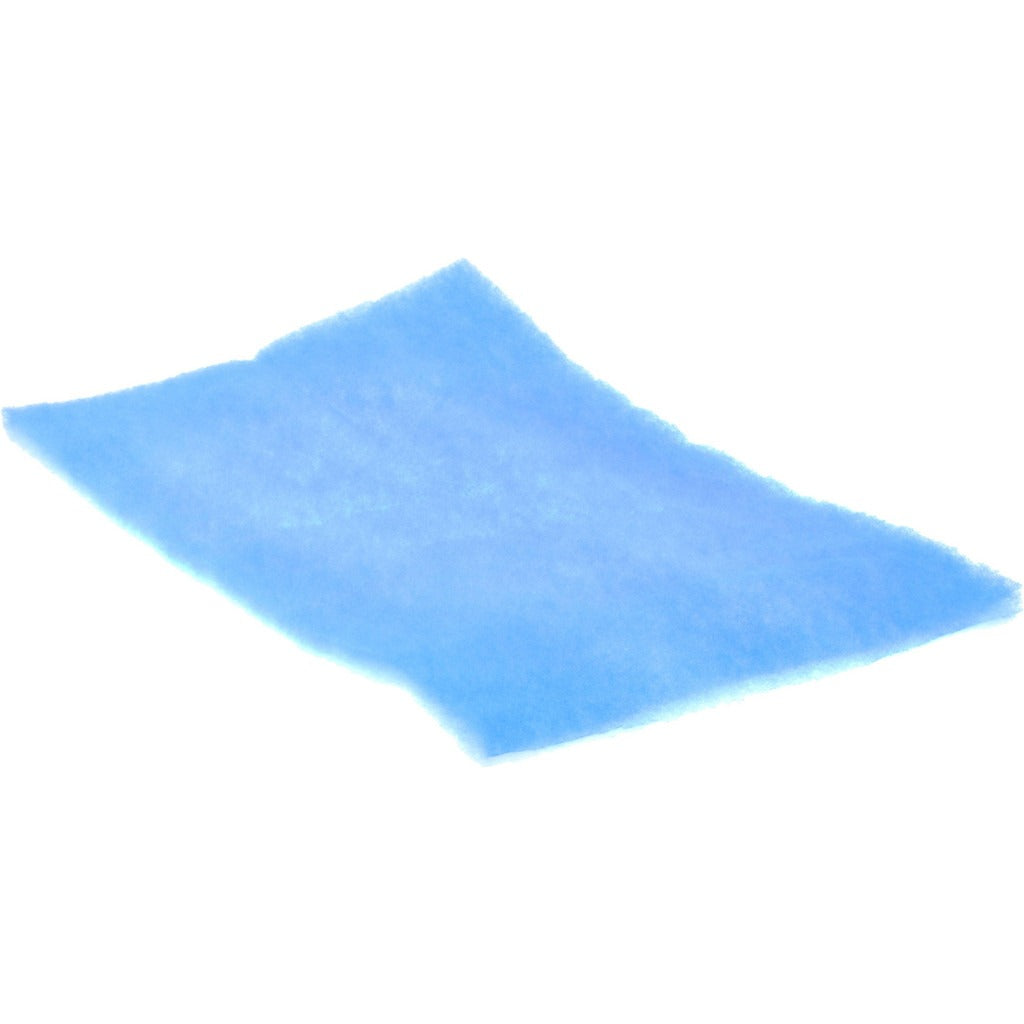

Pro-source PRO11737 Merv 7 Polyester Filter Pad 16x25x1

Product Description

The PRO-SOURCE PRO11737 is a polyester air filter media pad rated MERV 7 for use in a wide range of HVAC filtration applications. Measuring 16 inches high by 25 inches wide by 1 inch deep, this flat media pad delivers 833 CFM airflow capacity at a maximum face velocity of 300 FPM. It achieves 25 percent particle capture efficiency and 85 percent arrestance efficiency, making it suitable for pre-filtration and general-purpose dust and particulate control. A dry tackifier treatment enhances particle adhesion across the polyester media surface. Licensed HVAC technicians and facility maintenance personnel typically specify this pad where lightweight, economical filtration is required.

The PRO11737 is designed for installation in standard filter media holding frames, roll-media systems, and pre-filter assemblies used in residential, light commercial, and industrial HVAC systems. Its flat pad format allows it to be trimmed or stacked to fit custom frame openings. The pad handles operating temperatures up to 180 degrees F, making it compatible with supply-air and return-air applications in most forced-air systems. The UL Class 2 rating indicates it has been evaluated for flammability characteristics appropriate for air-handling equipment.

Key Features

• MERV 7 rating with 25 percent particle capture efficiency and 85 percent arrestance efficiency
• 833 CFM rated airflow at a maximum face velocity of 300 FPM
• Initial resistance of 0.14 inches w.g. for low static pressure drop at rated flow
• Polyester media with dry tackifier for improved particle adhesion
• Rated for continuous use up to 180 degrees F
• UL Class 2 listed for use in air-handling applications

Compatibility

Designed for use with any air-handling unit requiring a flat polyester media pad in a 16 x 25 x 1 inch filter opening; compatible with standard media holding frames and roll-media pre-filter systems.

Installation Notes

Installation is typically performed by HVAC technicians or qualified maintenance personnel. Power down the air-handling unit and confirm the system is de-energized before removing or inserting filter media. Verify that the holding frame or media track is clean and free of debris before seating the pad. Follow local codes and the equipment manufacturer guidelines for scheduled filter inspection and replacement intervals.
