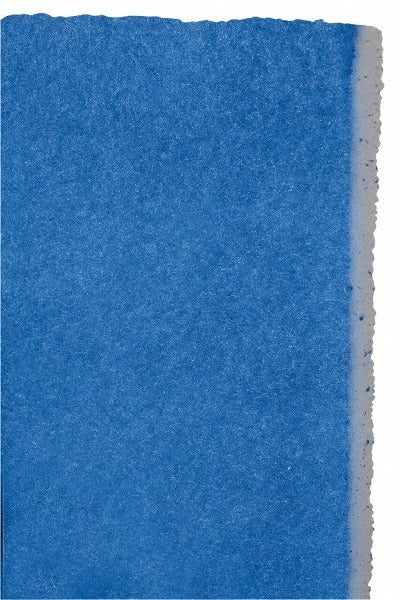

Pro-source PRO11730 Polyester Air Filter Pad Merv 7 24x24x2

Product Description

The PRO-SOURCE PRO11730 is a polyester air filter media pad rated MERV 7, designed for use in HVAC air handling and filtration systems. Measuring 24 inches high by 24 inches wide by 2 inches deep, this pad delivers 1,200 CFM airflow capacity at a maximum face velocity of 300 FPM. It achieves 35% particle capture efficiency and 87% arrestance efficiency, making it effective at removing larger airborne particles such as dust, lint, and pollen. A dry tackifier treatment is applied to the polyester media to improve particle retention. Licensed HVAC technicians and mechanical contractors typically install this pad as a primary or pre-filter stage in commercial and residential air handling equipment.

This filter pad is suited for use in air handler units, makeup air units, and pad-style filter housings commonly found in light commercial and residential HVAC applications. The polyester media construction allows it to handle operating temperatures up to 180 degrees F, making it compatible with a broad range of system configurations. It carries a UL Class 2 rating. The pad-style form factor fits standard filter rack systems that accept 24-inch by 24-inch media pads.

Key Features

• MERV 7 rated polyester media for effective coarse filtration
• 1,200 CFM airflow capacity at up to 300 FPM maximum velocity
• 35% particle capture efficiency and 87% arrestance efficiency
• Dry tackifier treatment enhances particle retention on media surface
• Maximum operating temperature of 180 degrees F
• UL Class 2 listed construction
• Initial resistance of 0.15 inches water gauge at rated FPM

Compatibility

Designed for use with any unit accepting a standard 24-inch by 24-inch by 2-inch media pad filter, as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor. Always power down the air handling unit and confirm the system is de-energized before removing or installing filter media. Verify that the filter rack or housing is clean and free of debris before seating the new pad. Check the pad for proper fit and confirm airflow direction arrows align with system airflow before closing access panels.
