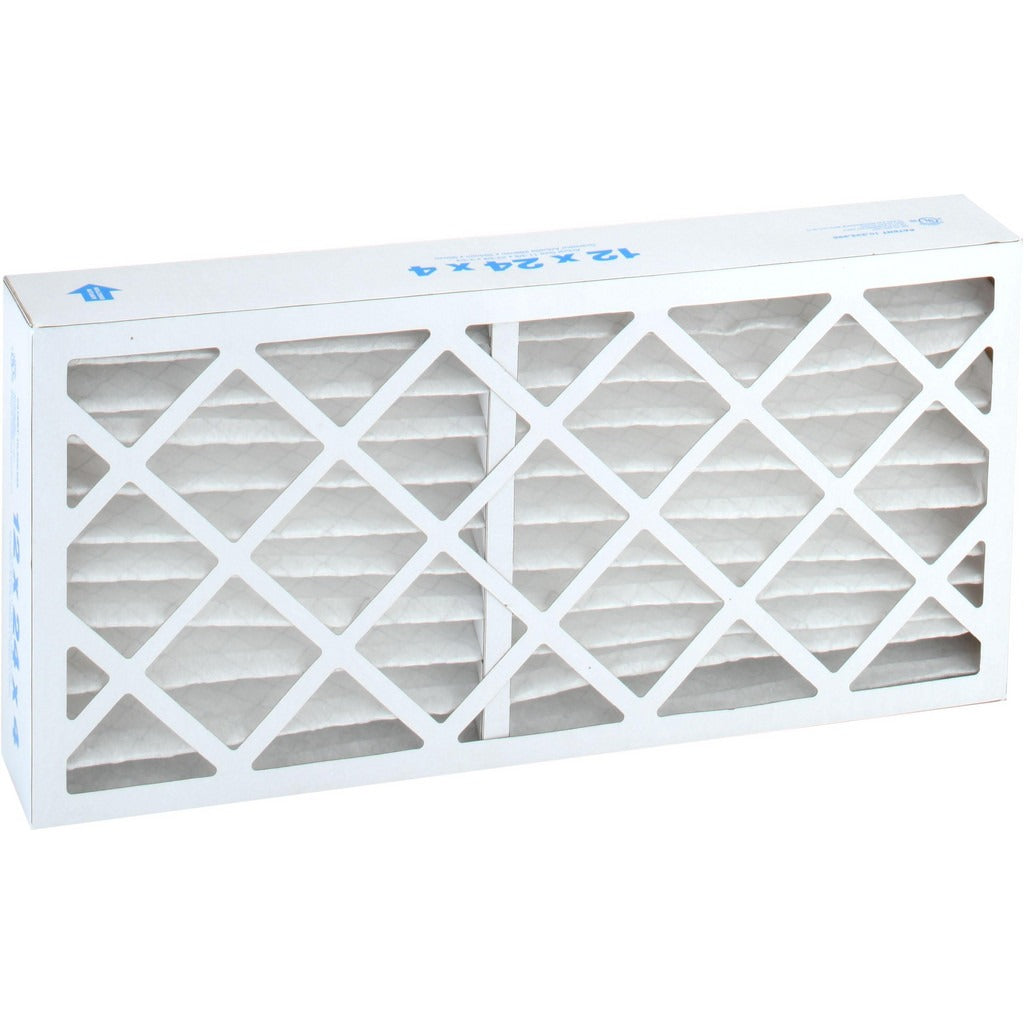

Pro-source PRO10465 Pleated Air Filter 12x24x4 Merv 10

Product Description

The PRO-SOURCE PRO10465 is a MERV 10, wire-backed pleated air filter designed for use in residential and light commercial HVAC systems. Measuring 12 x 24 x 4 inches nominally with actual dimensions of 11-3/8 x 23-3/8 x 3-3/4 inches, it fits standard 4-inch filter housings and media cabinets. The synthetic pleated media captures 55% of airborne particles at the MERV 10 efficiency rating, targeting contaminants such as fine dust, pollen, mold spores, and pet dander. A paperboard frame provides structural integrity, and the wire backing supports pleat geometry at rated airflow conditions. Rated to a maximum velocity of 500 feet per minute and 1,250 CFM, it carries an initial resistance of 0.17 inches water gauge and a final resistance of 1.0 inch water gauge. Installation is handled by HVAC service technicians and trained maintenance personnel.

This filter is suited for forced-air systems using 4-inch deep filter housings, including rooftop units, air handlers, and furnace-mounted media cabinets in both residential and light commercial applications. The PRO10465 is rated for continuous service up to 200 degrees F, making it compatible with a broad range of forced-air heating and cooling equipment. Per the supplier data, it is listed for use with any unit accepting a nominal 12 x 24 x 4-inch filter. ASHRAE 52.2-2012 and UL 900 compliance confirms the filter meets recognized industry performance and safety standards.

Key Features

• MERV 10 rated at 55% particle capture efficiency for fine dust, pollen, and mold spores
• Wire-backed pleated synthetic media maintains pleat structure at rated airflow
• Nominal 12 x 24 x 4 inches; actual dimensions 11-3/8 x 23-3/8 x 3-3/4 inches for standard media cabinet fit
• Rated to 1,250 CFM and 500 FPM maximum velocity
• Low initial resistance of 0.17 inches water gauge at 500 FPM reduces system static pressure impact
• Meets ASHRAE 52.2-2012 and UL 900 standards

Compatibility

Suitable for use with any forced-air HVAC unit accepting a nominal 12 x 24 x 4-inch pleated filter, including furnaces, air handlers, and rooftop units with 4-inch media filter housings.

Installation Notes

HVAC technicians and qualified maintenance personnel should power down the air handling system before replacing the filter. Confirm the housing accepts the 3-3/4-inch actual depth before installation, as nominal and actual dimensions differ. Airflow direction arrows, if present on the frame, must align with the system airflow direction. Dispose of the used filter in accordance with local waste guidelines.
