Pro-source PRO10463 Pleated Air Filter 24x24x2 Merv 10

Product Description

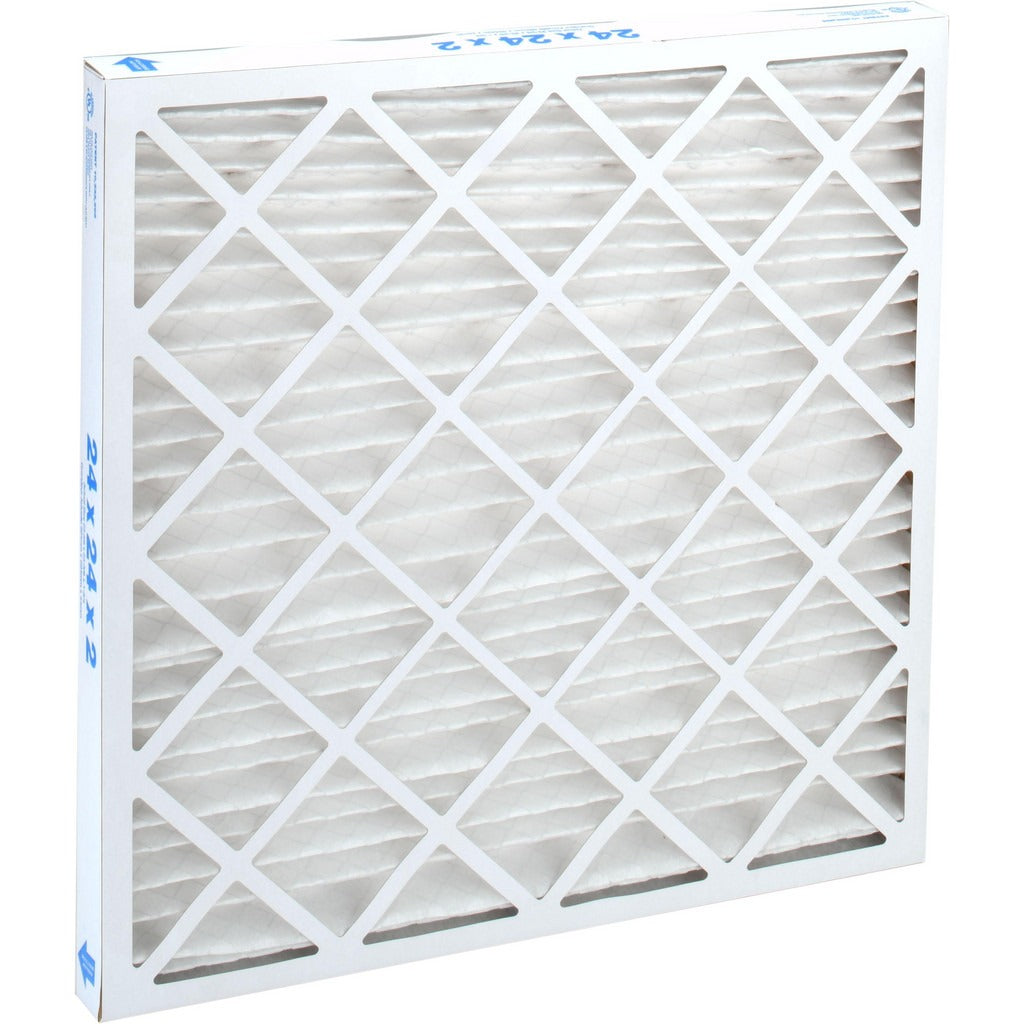

The PRO-SOURCE PRO10463 is a wire-backed pleated air filter rated MERV 10 with 55% particle capture efficiency. It measures 24 x 24 x 2 inches nominal (23-3/8 x 23-3/8 x 1-3/4 inches actual) and is built with a synthetic filter media bonded to a wire-backing structure for pleat rigidity. The paperboard frame keeps the assembly square during installation. Rated for up to 500 feet per minute (FPM) face velocity and 2,000 CFM airflow, this filter handles standard residential and light commercial duct openings. HVAC technicians and building maintenance staff are the primary installers.

This filter is suited for forced-air systems in residential and light commercial applications where mid-range filtration is required. MERV 10 captures finer particulates including dust mite debris, mold spores, and fine dust — making it appropriate for occupied buildings, light industrial spaces, and HVAC systems where air quality matters but high-static premium filters are not specified. The 24 x 24 x 2 inch size fits common air handler and furnace filter cabinets designed for that nominal slot.

Key Features

• MERV 10 rating per ASHRAE 52.2-2012 with 55% particle capture efficiency
• Wire-backed pleated design maintains pleat shape under airflow load
• Synthetic media for consistent filtration across the filter face
• Rigid paperboard frame resists collapse in standard filter tracks
• Rated to 500 FPM maximum face velocity and 2,000 CFM maximum airflow
• UL 900 listed; rated for continuous use up to 200 degrees F

Compatibility

Designed for use with any forced-air unit accepting a 24 x 24 x 2 inch nominal filter. No specific brand or model restrictions are stated by the manufacturer.

Installation Notes

Installation is performed by HVAC technicians or qualified maintenance personnel. Always shut down the air handling unit before removing the old filter and installing the new one. Confirm airflow direction arrow on the filter frame aligns with the direction of airflow in the duct or air handler cabinet before securing. Inspect the filter track and frame seal at each change interval to prevent bypass around the filter edges.
