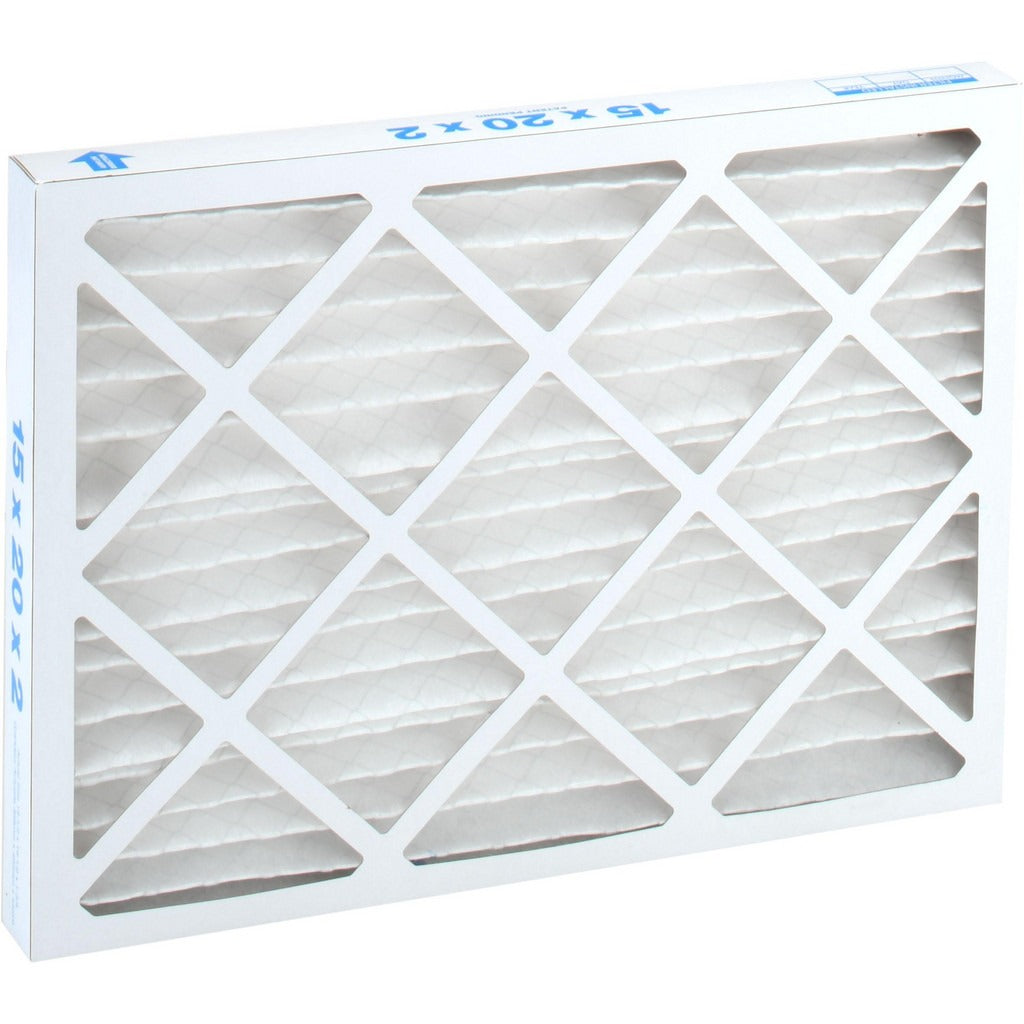

Pro-source PRO10455 Pleated Air Filter 15x20x2 Merv 10

Product Description

The PRO-SOURCE PRO10455 is a wire-backed pleated air filter rated MERV 10 with 55% particle capture efficiency, designed for use in residential and light commercial HVAC systems. The synthetic pleated media is supported by a wire backing to maintain pleat geometry under airflow load, preventing media collapse at higher velocities. The filter is housed in an integrated paperboard frame. It handles airflow up to 1,025 CFM at a maximum face velocity of 500 FPM, with an initial resistance of 0.24 inches water gauge at 500 FPM and a final resistance of 1.0 inches water gauge. HVAC technicians and service contractors install this filter as a standard maintenance replacement in forced-air systems.

This filter fits any forced-air unit accepting a nominal 15 x 20 x 2 inch filter. It is suited for residential furnaces, air handlers, and packaged units where MERV 10 filtration is specified or required. At MERV 10, it captures a broad range of particles including dust, pollen, mold spores, and fine particulate matter, making it appropriate for environments where occupant air quality or equipment protection is a priority. The 55% efficiency rating and high-capacity design extend service intervals compared to lower-efficiency filters of the same nominal size.

Key Features

• MERV 10 rating with 55% particle capture efficiency per ASHRAE 52.2-2012
• Wire-backed pleated synthetic media maintains pleat structure under airflow load
• Integrated paperboard frame for secure, consistent fit in standard filter tracks
• Rated for up to 1,025 CFM and 500 FPM maximum face velocity
• Initial resistance of 0.24 inches water gauge at 500 FPM for low system pressure drop at rated flow
• Maximum operating temperature of 200 degrees F

Compatibility

Designed for use with any forced-air HVAC unit accepting a nominal 15 x 20 x 2 inch filter. Actual filter dimensions are 14-1/2 x 19-1/2 x 1-3/4 inches.

Installation Notes

HVAC technicians should power down the air handler or furnace before replacing the filter. Confirm airflow direction marked on the filter frame matches the direction of airflow in the system. Filters in this nominal size slot into standard side-access or bottom-access filter racks without tools. Inspect the filter frame seat for gaps before returning the unit to service to prevent air bypass around the media.
